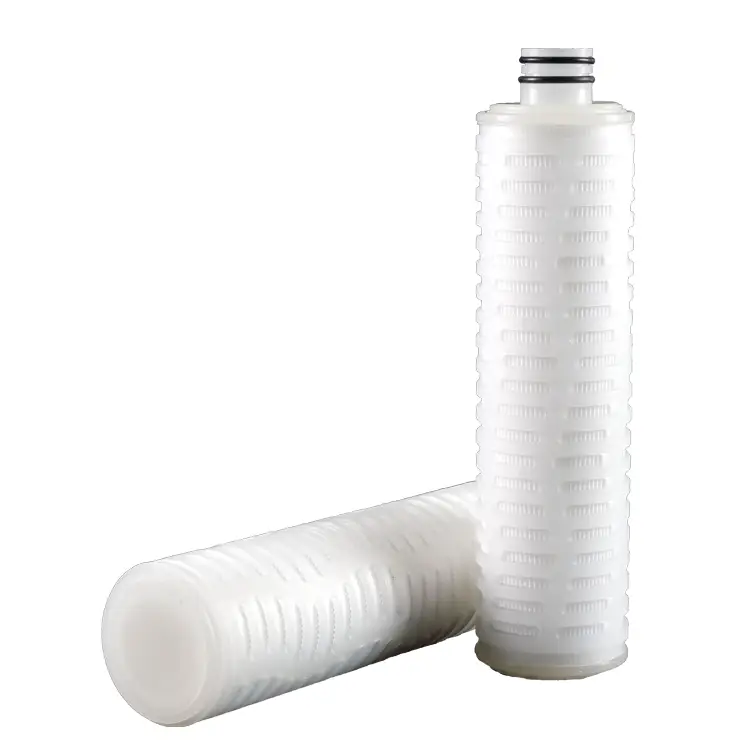

DOE 222 226 pleated filter cartridge/PP micro membrane

DOE 222 226 pleated filter cartridge/PP micro membrane

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
After Warranty Service:
Online support
Local Service Location:
none
Showroom Location:
none
Place of Origin:
Guangdong, China
Brand Name:
Lvyuan
Warranty:
Unavailable
filter membrane material:
PP, ptfe, pes, pvdf, Nylon
support material:
Polypropylene
seal material:
silicone,EPDM,NBR
Micron Rating:
0.1~60 um
Length:
5" 10" 20" 30" 40"
inner diameter:
30mm
outside diameter:
68~70mm
end cap:
doe,222,226
Core:
Plastic core
Package:
25pcs/ctn
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month

Introduction

Polypropylene filter is a kind of fixed aperture depth filter cartridge with the filter media of fine polypropylene fiber, the filter media comply with the FDA requirements. Filter micron rate range is from 0.1um to 60um. With the features of low pressure drop, high flow rate and long service life, polypropylene filter is the best choice as the pre filtration. The complete polypropylene structure has stable performance and wide chemical compatibility.



Specifications and Parameters

Filter mediapolypropylene filter membrane
Length10",20",30",40"
Diameter69mm
micron rating (µm)0.1, 0.2, 0.45, 0.65, 1, 2, 3, 5, 10,20,30,60
end capdoe,222/fin,222/flat,226/fin,226/flat
seal materialsilicone,EPDM,NBR
sealed typesweating soldering
effective filtration area0.4~0.7m2 /10"
max. working temperature80°C at 0.28Mpa,  60°C at 0.42Mpa
Max positive pressure differenceΔp0.42Mpa at 25°C
Max negative pressure differenceΔp0.28Mpa at 25°C
sterilizing temperature121 °C, 30min



      we still have filter media of PVDF/PTFE/PES/Nylon filter membrane~









Structure



Application

Pharmaceutical industry: medicine liquid, cell debris, biological products filtration.
Chemical industry: Organic solvents, chemical reagents, ink, plating solution filtration.
Food industry: Drinking water, mineral water, soft drinks, beer, red wine, fruit wine filtration.
Electronics industry: pre filtration of reverse osmosis water system, deionized water system.
Air filtration: compressed air,N2,CO2 filtration.
Other industry: Photoresist, magnetic media filtration.









Pictures for polypropylene cartridge









Package

10 inch: 50PCS/CTN  400*400*685mm

20 inch: 25PCS/CTN   400*400*685mm

30 inch: 25PCS/CTN   835*435*425mm

40 inch: 25PCS/CTN    1100*395*400mm





In Guangzhou Lvyuan Water Purification Equipment Co., Ltd., All water filter cartridges can all be customized to the unique needs of individual clients. The self-supporting fiber matrix enables a coreless design that is both economical and strong. With the innovative concept, excellent quality, and perfect detection system, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. launched the Lvyuan . The self-supporting fiber matrix enables a coreless design that is both economical and strong.
