Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Lvyuan / OEM

Model Number:: LY-PF series

Product name:: doe end caps pleated filter cartridge

Micron Rate:: 0.1 to 60 micron pleated filter cartridge

Material:: PP / PTFE / PES / Nylon 6 / PVDF

Length:: 5", 10", 20", 30", 40" inch

Filter Media:: Polypropylene membrane

End Cap:: DOE,222+Fin,222+Flat,226+Fin,226+Flat

Gasket/O ring material:: Silicon/EPDM/NBR/Viton/Teflon

Usage:: liquid filter elements, water filter parts

Inner core:: PP / stainless steel

Certification:: CE SGS ISO

Supply Ability

Supply Ability:: 5000 Piece/Pieces per Day DOE pleated filter cartridge

Product Description

DOE end caps pleated filter cartridge for Polypropylene 7

DOE end caps pleated filter cartridge for Polypropylene

The PP pleated filter cartridge uses pleated polypropylene fiber membrane as filtration media.

The PP Polypropylene cartridge is an advanced fixed intensive filter and available in a wide range of retention rating from 0.1μm to 60μm. The pore size is not affected by the vibration of feeding pressure. Due to its unique low differential pressure, high flow volume, excellent filtration capability attracted many customers..

DOE end caps pleated filter cartridge for Polypropylene 13

DOE end caps pleated filter cartridge for Polypropylene 15

Detail of Pleated filter cartridge

Jumbo / High flow rate Pleated Filter Cartridge

DOE end caps pleated filter cartridge for Polypropylene 17

DOE end caps pleated filter cartridge for Polypropylene 19

End Cap for pleated filter cartridge

7 Round 30 inch Stainless Steel cartridge filter housing

Application

DOE end caps pleated filter cartridge for Polypropylene 21

1. Electronic industry: RO reverse osmosis water system prefiltration, deionized water system prefiltration.
2. Food industry: filtration of beverage, beer and mineral water.
3. Chemical industry: filtration of organic solvent and ink.
4. Pharmaceutical industry: filtration of pharmaceuticals, biologicals, serum products, compressed air and gas.
5. Others: filtration of plating solution, process fluids, photoresist and magnetic media

Specification

Filter Media Option	PP filter cartridge	PTFE filter cartridge	Nylon 6 filter cartridge	PES filter cartridge	PVDF filter cartridge
Length	5, 10, 20, 30, 40	5, 10, 20, 30, 40	5, 10, 20, 30, 40	5, 10, 20, 30, 40	5, 10, 20, 30, 40"
Micron Rate	0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron	0.2, 0.45 micron	0.2, 0.45, 0.65, 1 micron	0.1, 0.2, 0.45, 0.65 micron	0.2, 0.45 micron
End Cap	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
Inner Diameter	28mm	28mm	28mm	28mm	28mm
Outer Diameter	68mm (can be customized)	68mm (can be customized)	68mm (can be customized)	68mm (can be customized)	68mm (can be customized)
Jumbo Size	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm
Gasket/O ring material	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon
Effective filtration area	0.4-0.7m²	≥0.72m²	≥0.6m²	≥5m²	≥0.72m²
Max.working pressure difference	0.42Mpa at 25℃	0.42Mpa at 25℃	0.42Mpa at 25℃	0.42Mpa at 25℃	0.42Mpa at 25℃
Max.back pressure	0.28Mpa at 60℃	0.35Mpa at 60℃	0.35Mpa at 25℃	0.21Mpa at 25℃	0.21Mpa at 25℃
Max. working temperature	88℃ at 0.28Mpa, 60℃ at 0.42Mpa	142℃ at 0.276Mpa	49℃ at 0.21Mpa	140℃ at 0.28Mpa	80℃ at 0.173Mpa
Sterilizing temperature	121℃, 30mins	121℃, 30mins	121℃, 30mins	121℃, 30mins	121℃, 30mins

DOE end caps pleated filter cartridge for Polypropylene 23

DOE end caps pleated filter cartridge for Polypropylene 25

Related Products

DOE end caps pleated filter cartridge for Polypropylene 27

DOE end caps pleated filter cartridge for Polypropylene 29

DOE end caps pleated filter cartridge for Polypropylene 31

PP Melt Blown filter cartridge

String Wound filter cartridge

CTO Activated Carbon filter cartridge

DOE end caps pleated filter cartridge for Polypropylene 33

Our Company

Guangzhou Lvyuan Water Purification Equipment Co.,Ltd is a comprehensive enterprise. As a Leader Manufacturer in Guangzhou city, our competitive product lines including:

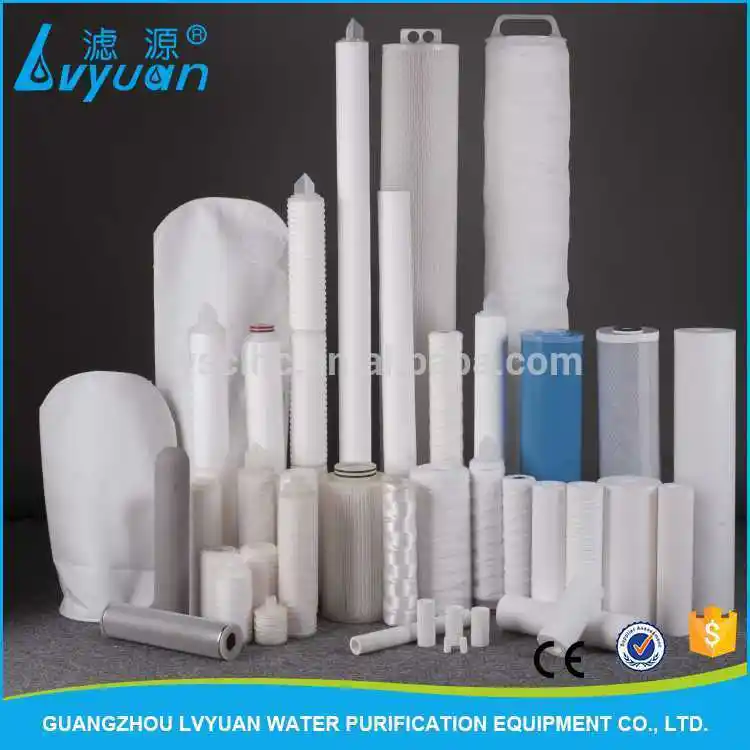

1. All kinds of Filter Cartridges, Pleated / Melt Blown / Sintered etc.
2. Cartridge filter housings and bag filter housings
3. RO, UF, MBR water purifier and equipment
4. Water treatment equipments
5. Many kinds of Water purifiers and equipments, water softners, and more.
We devote to filtration development for more than 10 years. We can supply advanced technical support and solution for all of our customers during and after warranty period.

DOE end caps pleated filter cartridge for Polypropylene 35

DOE end caps pleated filter cartridge for Polypropylene 37

DOE end caps pleated filter cartridge for Polypropylene 39

DOE end caps pleated filter cartridge for Polypropylene 41

DOE end caps pleated filter cartridge for Polypropylene 43

Packing & Delivery

DOE end caps pleated filter cartridge for Polypropylene 45

DOE end caps pleated filter cartridge for Polypropylene 47

DOE end caps pleated filter cartridge for Polypropylene 49

FAQ

1. Q: Are you factory?
A: Yes, we are the professional manufacturer with continuous and improved R & A production, sales and service supply. We will always provide the best technical service support to our clients both in and after warranty period.
2. Q: How to get a quotation?
A: In order to send you our best price, please kindly inform us detail product parameters and order quantity.
3. Q: Can I get your products with our logo and design?
A: Customized service is available. We can OEM or ODM with your logo.
4. Q: What's the MOQ ?
A: We can offer the quantity you required, as we don't dictate MOQ terms.
