DOE hydrophilic pp micropore membrane pleated filter element/hydraulic filter element with 5 micron 1

DOE hydrophilic pp micropore membrane pleated filter element/hydraulic filter element with 5 micron 2

DOE hydrophilic pp micropore membrane pleated filter element/hydraulic filter element with 5 micron 3

DOE hydrophilic pp micropore membrane pleated filter element/hydraulic filter element with 5 micron 4

DOE hydrophilic pp micropore membrane pleated filter element/hydraulic filter element with 5 micron 5

DOE hydrophilic pp micropore membrane pleated filter element/hydraulic filter element with 5 micron 6

DOE hydrophilic pp micropore membrane pleated filter element/hydraulic filter element with 5 micron

Inquiry

Write a Review

Overview

Quick Details

Condition:: New

Warranty:: Unavailable

Applicable Industries:: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

After Warranty Service:: Online support

Local Service Location:: none

Showroom Location:: none

Place of Origin:: Guangdong, China

Brand Name:: Guangzhou Lvyuan

filter media material:: Polypropylene(pp)/ptfe/pes/pvdf

Micron Rating:: 0.1~60 um

Length:: 5" 10" 20" 30" 40"

inner diameter:: 30mm

outside diameter:: 68~70mm

end cap:: doe,222/fin,222/flat,226/fin,226/flat

seal material:: silicone,EPDM,NBR,viton,te-flon

Name:: pleated filter element

Application:: Liquid/gas filtration

Certification:: SGS

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Week

DOE hydrophilic pp micropore membrane pleated filter element/hydraulic filter element with 5 micron

Introduction

Polypropylene filter is a kind of fixed aperture depth filter cartridge with the filter media of fine polypropylene fiber, the filter media comply with the FDA requirements. Filter micron rate range is from 0.1um to 60um. With the features of low pressure drop, high flow rate and long service life, polypropylene filter is the best choice as the pre filtration. The complete polypropylene structure has stable performance and wide chemical compatibility.

Specifications and Parameters

Filter media	polypropylene filter membrane
Length	10",20",30",40"
Diameter	69mm
micron rating (µm)	0.10,2,0.45,0.65,1,2,3,5,10,20,30,60
end cap	doe,222/fin,222/flat,226/fin,226/flat
seal material	silicone,EPDM,NBR,viton,te-flon
sealed type	sweating soldering
effective filtration area	0.4~0.7m2 /10"
max. working temperature	80°C, 0.28Mpa
Max positive pressure difference	Δp0.42Mpa at 25°C
Max negative pressure difference	Δp0.28Mpa at 25°C
sterilizing temperature	121 °C, 30min

we still have filter media of PVDF/PTFE/PES/Nylon filter membrane~

Structure

Application

Pharmaceutical industry: medicine liquid, cell debris, biological products filtration.
Chemical industry: Organic solvents, chemical reagents, ink, plating solution filtration.
Food industry: Drinking water, mineral water, soft drinks, beer, red wine, fruit wine filtration.
Electronics industry: pre filtration of reverse osmosis water system, deionized water system.
Air filtration: compressed air,N2,CO2 filtration.
Other industry: Photoresist, magnetic media filtration.

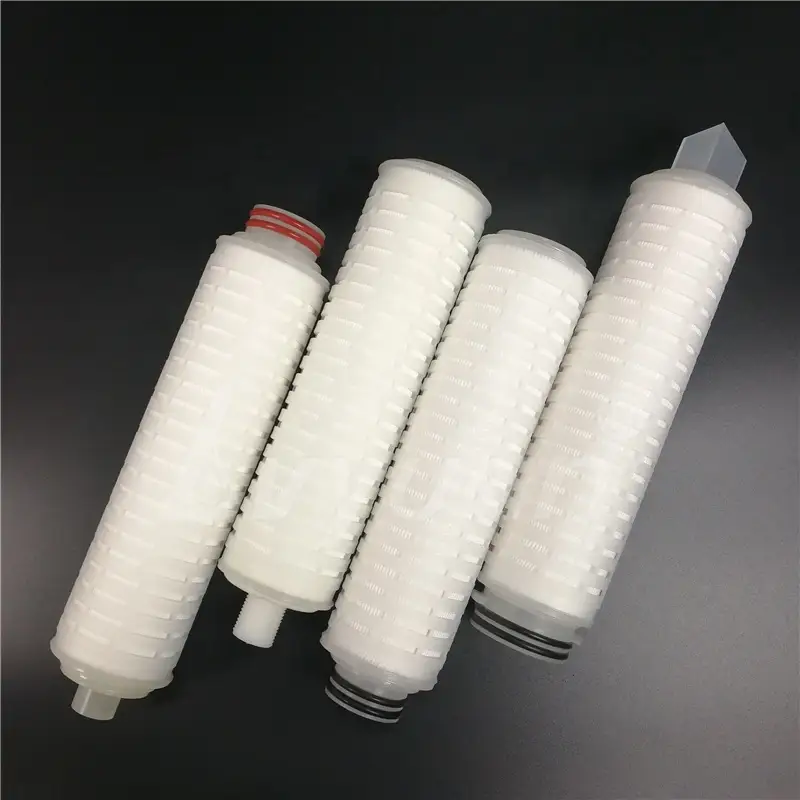

Pictures for polypropylene filter

Package

10 inch: 50PCS/CTN 400*400*685mm

20 inch: 25PCS/CTN 400*400*685mm

30 inch: 25PCS/CTN 835*435*425mm

40 inch: 25PCS/CTN 1100*395*400mm

End cap / Interface

If any of our products draw your interesting, pls contact Ms.Suki Su.

Ph/wechat: +86 18664787674

The stable and enhanced performance of this product helps to reduce the costs associated with maintenance, longer up-times, and enhanced product quality. The inner support layer is closely connected to the filter material, making it of strong impact resistance. The product is widely used in many industries. With the advantages of ensuring high and large production rate, it helps manufacturers increase profits. The inner support layer is closely connected to the filter material, making it of strong impact resistance.
