efficient sintered metal filter cartridge high quality for industry Lvyuan
-
v s
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has always put great importance to quality stability of sintered plastic filter.
2. One of the most popular functions of sintered plastic filter is reliability.
3. The quality of the product has been recognized by the international authority.
4. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. always actively solves customer problems and provide quality services.
Stainless steel filter element can get a large filtration area and with high flow rate. It extends cartridge life and have more dirt holding capacity.
Moreover, The stainless steel filter cartridges are designed for cleanable and reusable applications thereby eliminating frequent cartridge change out, so it can significantly reduce disposal cost.
Non-standard Stainless steel filter cartridges can be easily customized with various dimension, end cap, outer cage pattern etc. So as long as customer give us the picture and drawing of the ss filter cartridge, we can custom-make the exact ss filter element to you.

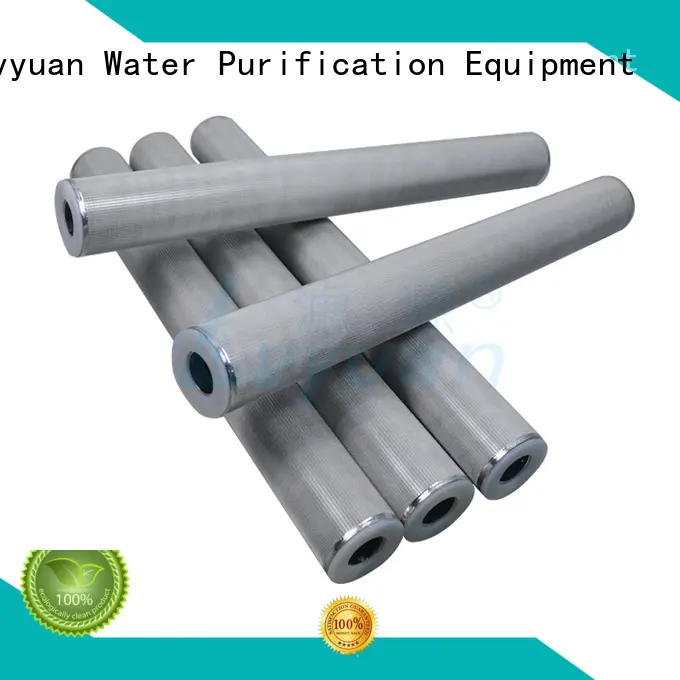

◆◆ Sintered Stainless Steel Filter Cartridges are the perfect choice for high temperature, high differential pressure and high viscosity applications. Manufactured with 304, 316 or 316L material, there’re mainly 3 types of stainless steel cartridge designs are widely used in the industry.
1. Plain cylindrical design SS wiremesh filter cartridge.
2. Pleated configuration design SS folded mesh filter cartridge.
3. Sintered SS316 metal powder type SS filter cartridge.
Product Feature
◪ Excellent mechanical strength.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ Temperature ratings from -73°C to 480°C.
◪ Various micron ratings available from 2um to 1000um nominal.
◪ Back flushing and cleanable for long service life.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ High permeability, no media migration.
◪ Customized dimension are welcome.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø25, 30, 50, 60, 65, 70mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS304, 316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Outside protection net | Optional |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc |
| Effective Surface area | 0.65 sqm per 10" cartridge element |
| Operation Temperature | ≦ 480℃ |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0 bar |
Product Details
Product Applications
Company Features
1. A solid foundation in sintered plastic filter field has been laid in Guangzhou Lvyuan Water Purification Equipment Co., Ltd..
2. In order to become a more competitive company, the introduction of talent and the development of new technologies have become especially important for Lvyuan.
3. We will be the first brand in the sintered metal filter cartridge business. Get quote! Winning more overseas market share is what we pursue now. Under the technological support, we will strive hard to win over customers by quality and service. We believe innovation drives to success. We cultivate and enhance our innovative thinking and apply it to our R&D process. Besides, we continually invest in research and technology, hoping to provide unique and practical products for customers.
