Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.


efficient stainless steel cartridge filter housing manufacturer for food and beverage 1
efficient stainless steel cartridge filter housing manufacturer for food and beverage 1

efficient stainless steel cartridge filter housing manufacturer for food and beverage

Start Port:
Guangzhou
Production Capacity:
10000 units/Month
Place of Origin:
Guangdong, China
Payment:
L/C, T/T, Western Union, Alibaba Trade Assurance, paypal
MOQ:
1 pcs
Model:
LY-HFPL
Delivery Time:
Within 7 working days
Certification:
ISO 9001
Brand:
OEM/Lvyuan
Inquiry
Material
Stainless Steel
Availability
OEM

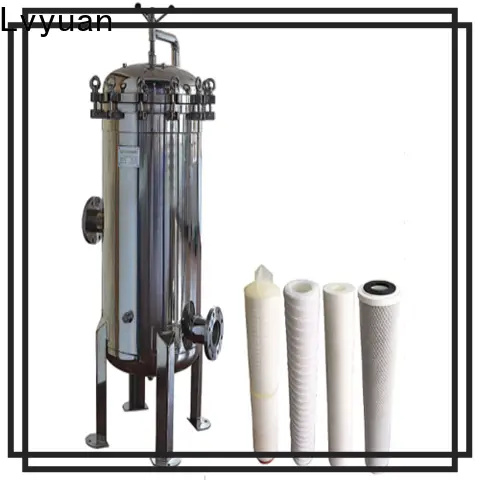

Pleated PP membrane 20 microns stainless steel 304 316L ss multi round filter housing

Stainless steel multi round cartridge filter housing, also known as Precision filters or security filters, are generally installed before the pressure vessel to remove fine particles with a turbidity of more than 1 micron to meet the requirements of subsequent processes for water inflow; sometimes they are also installed at the end of the entire water treatment system to prevent fineness Particles (such as broken resin) enter the product water.



Product name
multi round filter housing

Raw material
SUS304, SUS316L

Inlet & Outlet
Flange/Thread

Seal material
EPDM/Silicone/Viton/PTFE

Surface treatment
Polished/Sandblast

Working temperature
50℉ to 250℉

Max. working temperature
100psi to 235psi





FEATURE

1
Inlet & outlet size is 1/2", 3/4", 1 inch, easy installation.

2
Working pressure 8kg/0.8Mpa is supported.

3
Use the tap water pressure to provide power, no power consumption.

4
This is suitable for using in the water master switch, for the pre filtration system and RO system protection.

5
Resistance to strong acid and alkali.

6
Low cost, it fits different kind of filter elements.



 efficient stainless steel cartridge filter housing manufacturer for food and beverage 2


  efficient stainless steel cartridge filter housing manufacturer for food and beverage 3


No.A(mm)B(mm)C(mm)D(mm)E(mm)F(mm)In/OutDrain
W5L32506001250φ200φ1203401 1/2'' -2''1/2''
W5L42507001500φ200φ1203401 1/2'' -2''1/2''
W7L33007001300φ250φ1503901 1/2'' -2''1/2''
W7L43008001550φ250φ1503901 1/2'' -2''1/2''
W11L33607001380φ300φ2004402" -3''1/2''
W11L43609001620φ300φ2004402" -3''1/2''
W15L33808001420φ350φ2005302" -3''3/4"
W15L43809001660φ350φ2005302" -3''3/4"
W20L34008001460φ400φ2005602" -4''3/4"
W20L44009001700φ400φ2005602" -4''3/4"
W27L34608001530φ450φ2506302" -4''3/4"
W27L446010001770φ450φ2506302" -4''3/4"



Application

1.It can be widely used in UF, RO, EDI security filtration and end- filtration, medicine injection, large infusion, eye drops,.
2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.
3. Electronics, semiconductor industry with high purity water preliminary filter, terminal filter.
4. Oil field back to water injection, boiler makeup water, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.
5. Drinking pure water, mineral water, fruit juice, tea beverages, health drinks filtering.
6. Liquor, wine, beer, yellow wine and other fruit wine filtration, pure draft beer aseptic filtration (alternative pasteurized)
7. The life and production waste water treatment and water recycling process of pre-treatment filtering or security filtering.
8. Biological engineering, oil refining, printing and dyeing, textile industry water supply and waste water treatment, research and test filter, etc.




Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
