Product Information
Customer Reviews

Overview

Quick Details

Type:: Water Filter Parts

After-sales Service Provided:: none

Warranty:: none

Application:: Car, RV, Outdoor, Hotel, Garage, Commercial, Household

Power Source:: Manual

Place of Origin:: Guangdong, China

Brand Name:: Lvyuan / OEM

Model Number:: LY-FC-AC series

Product name:: cartucho de filtro de agua

Size:: Customized

Micron Rate:: 1, 3, 5, 10, 20, 50, 100um

Material:: activated carbon, coconut shell

Length:: OEM, 5", 10", 20", 30", 40"

Outer diameter:: OEM, 50, 60, 70, 80mm

End cap:: DOE,SOE,222,226,215, M36, M24, M22, M20 thread interface

Certification:: S/GS/ISO9001

Usage:: Air or Water Purification

Working pressure:: 0.1 to 30Mpa

Packaging & Delivery

Selling Units:: Single item

Single package size:: 35X10X10 cm

Single gross weight:: 1.000 kg

Package Type:: Fabrica 5 7 8 10 20 30'' inch PP sediment CTO cartucho de filtro de carbon activado for agua filtros de carbono water filter poly bag and carton box Dear friend, we can make different size of activated carbon filter, please send inquiry to for the best price. Thanks.

Lead Time :

Quantity(Pieces)	1 - 10000	>10000
Est. Time(days)	15	To be negotiated

Fabrica 5 7 8 10 20 30'' inch PP sediment CTO cartucho de filtro de carbon activado for agua filtros de carbono water filter

Product Description

Custom-made Round Activated carbon fiber disc for air water filter discs plates

LVYUAN can custom-make industry-standard sized sintered carbon blocks Filter Element to suit the requirements of OEMs worldwide.

We use the world's advanced technology of sintering molding and SGS compliant raw materials and the finest grades of activated carbon to make CTO carbon block filter cartridges. Sintered CTO carbon block filter cartridges have strong adsorption ability and good rigid structure.

Sintered carbon block filter can remove chlrine, bad taste and odor, choramines, fine sediment, organic chemicals with high filtration efficiency. It can deliver superior performance to a variety of water and gas purification applications.

Specification

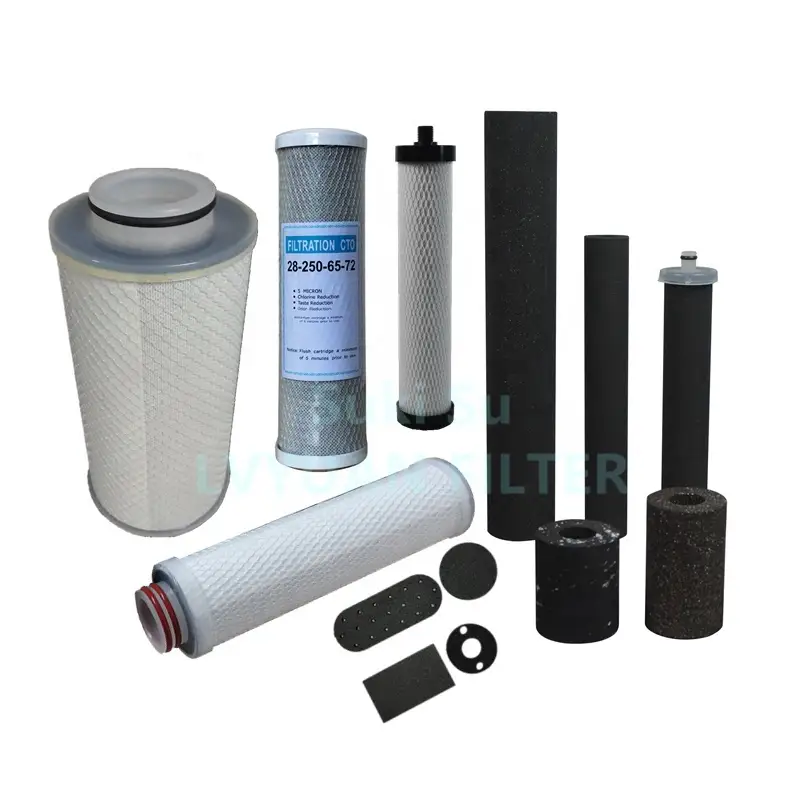

Name	Sintered / Compressed Activated Carbon Block Filter Cartridge
Filter Media	Activated carbon, (other anti-scale, heavy metal removal material available for option.)
Material	Coconut shell, Coal carbon
Iodine value	600 to 1500 available
Filtration rate	1um, 3um, 5um, 10um, 20um, 30um, 50um, 80um, 100um, 120um.
Dimension	can be custom-made according to customer's requirement
Length	5, 10, 20, 30, 40 inch, OEM
Outer diameter	50, 60, 70, 80mm, OEM
End cap	DOE, M20, M30,M36, M42, 215, 222, 226, OEM
Gasket/Oring material	Silicone, EPDM, NBR, Viton etc
Netting material	Polypropylene
Operating temperature	≤60ºC
Maximum operating pressure	10 bar

Features

1. High flow rate and low drop-out, high filter efficiency and longer service life.
2. Sintered carbon filters have very large filtration area and super strong adsorption.
3. Sintered carbon cartridges have many porous and good consistency of performance.
4. Effectively remove chlorinated compounds, organic matter, bad smell, colors, Vocs and THMS.
5. SGS approved high-quality coconut shell & high iodine value activated carbon materials.

Application

1. Air Purifier/Purification
2. Water Purification
3. Drinking Water
4. Plating Industry
5. Pre RO Water Filtration
6. Industry Water Treatment
7. Food & Beverage Industry

Our Company

Certifications

Contact

Developing cartridge filter manufacturer helps Guangzhou Lvyuan Water Purification Equipment Co., Ltd. make competitive advantage and market niche. It does not secrete dissoluble material during operation. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. makes efforts to set an example as a reliable enterprise. It does not secrete dissoluble material during operation.
