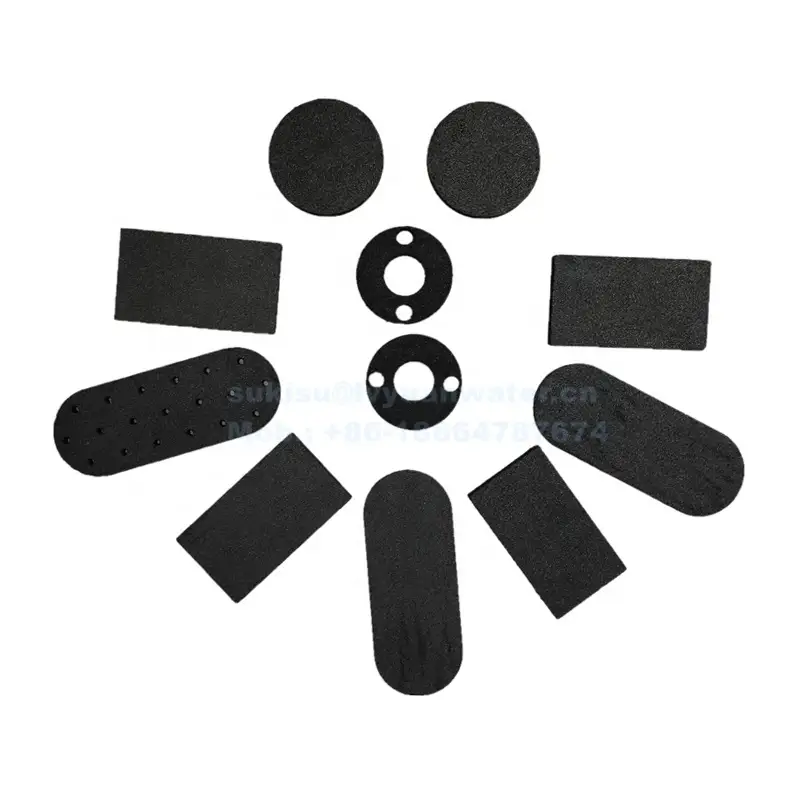

Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 1
Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 2
Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 3
Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 4
Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 5
Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 6
Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 1
Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 2
Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 3
Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 4
Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 5
Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 6

Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Type:
    Water Filter Parts
    After-sales Service Provided:
    Overseas Call Centers
    Warranty:
    none
    Application:
    Car, RV, Outdoor, Hotel, Garage, Commercial, Household
    Power Source:
    Manual
    Place of Origin:
    Guangdong, China
    Brand Name:
    Lvyuan / OEM
    Model Number:
    LY-FC-AC series
    Product name:
    disk carbon water filter
    Size:
    Customized
    Micron Rate:
    1, 3, 5, 10, 20, 50, 100um
    Material:
    activated carbon, coconut shell
    Length:
    OEM, 5", 10", 20", 30", 40"
    Outer diameter:
    OEM, 50, 60, 70, 80mm
    End cap:
    DOE,SOE,222,226,215, M36, M24, M22, M20 thread interface
    Certification:
    SGS/ISO9001
    Usage:
    Air or Water Purification
    Working pressure:
    0.1 to 30Mpa
    Supply Ability
    Supply Ability:
    5000 Piece/Pieces per Day carbon disk filter

    Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs

    Product Description
    Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 7

    Customized dimension Micron Activated carbon block air filter plate/sheet/mesh/tube/disc/pipe

    LVYUAN can custom-make industry-standard sized sintered carbon blocks Filter Element to suit the requirements of OEMs worldwide.

    We use the world's advanced technology of sintering molding and SGS compliant raw materials and the finest grades of activated carbon to make CTO carbon block filter cartridges. Sintered CTO carbon block filter cartridges have strong adsorption ability and good rigid structure.

    Sintered carbon block filter can remove chlrine, bad taste and odor, choramines, fine sediment, organic chemicals with high filtration efficiency. It can deliver superior performance to a variety of water and gas purification applications.

    Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 9
    Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 11
    Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 13
    Specification
    Name
    Sintered / Compressed Activated Carbon Block Filter Cartridge
    Filter Media
    Activated carbon, (other anti-scale, heavy metal removal material available for option.)
    Material
    Coconut shell, Coal carbon
    Iodine value
    600 to 1500 available
    Filtration rate
    1um, 3um, 5um, 10um, 20um, 30um, 50um, 80um, 100um, 120um.
    Dimension
    can be custom-made according to customer's requirement
    Length
    5, 10, 20, 30, 40 inch, OEM
    Outer diameter
    50, 60, 70, 80mm, OEM
    End cap
    DOE, M20, M30,M36, M42, 215, 222, 226, OEM
    Gasket/Oring material
    Silicone, EPDM, NBR, Viton etc
    Netting material
    Polypropylene
    Operating temperature
    ≤60ºC
    Maximum operating pressure
    10 bar
    Features

    1. High flow rate and low drop-out, high filter efficiency and longer service life.
    2. Sintered carbon filters have very large filtration area and super strong adsorption.
    3. Sintered carbon cartridges have many porous and good consistency of performance.
    4. Effectively remove chlorinated compounds, organic matter, bad smell, colors, Vocs and THMS.
    5. SGS approved high-quality coconut shell & high iodine value activated carbon materials.

    Application

    1. Air Purifier/Purification
    2. Water Purification
    3. Drinking Water
    4. Plating Industry
    5. Pre RO Water Filtration
    6. Industry Water Treatment
    7. Food & Beverage Industry

    Our Company
    Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 15
    Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 17
    Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 19
    Certifications
    Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 21
    Contact
    Factory Custom Activated Carbon air filter disk carbon water filter for portable bottle drinking water air filtration discs 23
    Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is deeply favored by customers with its clients throughout the world. It comes with a wide range of lengths for standard and full-flow housings. Quality for water filter cartridges is always put in very important place in Guangzhou Lvyuan Water Purification Equipment Co., Ltd.. It comes with a wide range of lengths for standard and full-flow housings.
