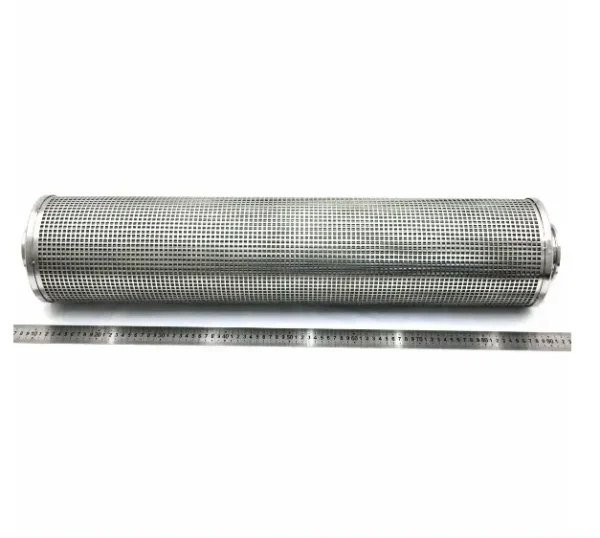

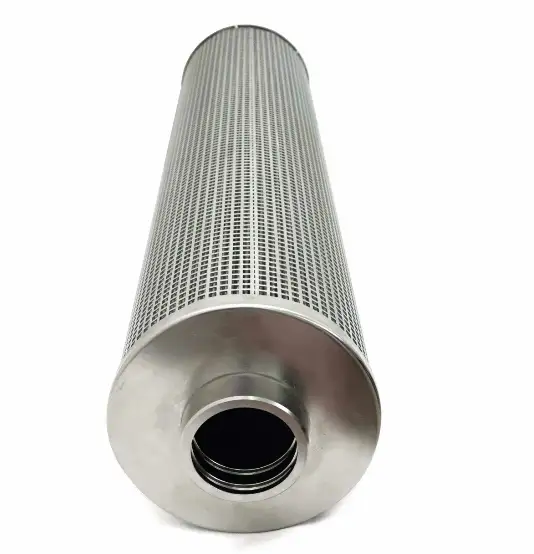

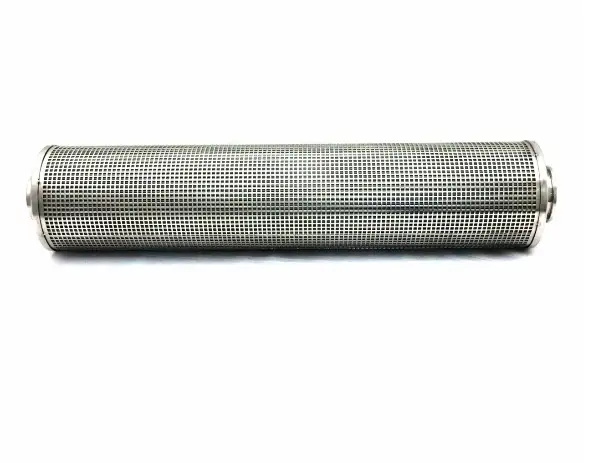

Filter element stainless steel filter tube

Filter element stainless steel filter tube

stainless steel filter tube is composed of standard five layer sintered mesh, which is laminated and sintered in vacuum. This kind of filter cartridge has the following advantages such as high strength, high corrosiveness, excellent permeability, easy to wash and backwash, accurate filter efficiency etc.

Standrad Sintered Mesh consists five layers:the protctive layer,the filter layer, the dispersion layer, two reinforcing meshes.Owing to its surface filtration construction,and smooth wire of the mesh,it is good at backwashing andregeneration. Futhermore,this mesh is easy to be formed,machined and welded. It can be produced into many kinds of shapes such as circular,cartridge,cone and pleats.

Product Description

nomal filter rating(um):2,5,10,20,40

control layer(mesh):325*2400 200*1400 165*1400 165*800 50*250

permeability(%):38

bubble point pressure:280-640(2um) 250-600(5um) 220-550(10um) 180-450(20um) 150-400(40um)

thickness(mm):1.7

weight(kg):8.4

Main Connection Type

*Standard interface, such as 222, 220, 226

*Fast interface

*Flange connection

*Tie rod connection

*Threaded connection

*Customized connection
