filters sintered metal filter elements filter liquid Lvyuan
- Lvyuan Water Purification Equipment provides comprehensive, thoughtful and quality services with quality products and sincerity.
1. When it comes to comparing with other products, Lvyuan sintered metal filter elements is of greater appearance.
2. The function of our sintered filter cartridge is diverse.
3. sintered filter cartridge has a lot of characteristics like sintered metal filter elements .
4. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has so far taken its place in the international sintered filter cartridge market.
5. There is complete quality control system for our sintered filter cartridge .
Non-standard Stainless steel filter cartridges can be easily customized with various dimension, end cap, outer cage pattern etc. So as long as customer give us the picture and drawing of the ss filter cartridge, we can custom-make the exact ss filter element to you.

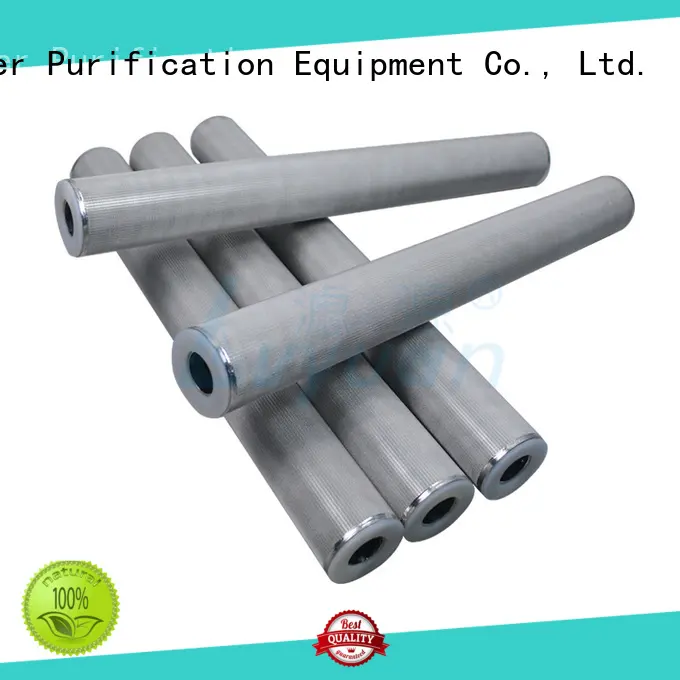

◆◆ Sintered Stainless Steel Filter Cartridges are the perfect choice for high temperature, high differential pressure and high viscosity applications. Manufactured with 304, 316 or 316L material, there’re mainly 3 types of stainless steel cartridge designs are widely used in the industry.
1.Plain cylindrical design SS wiremesh filter cartridge.
2.Pleated configuration design SS folded mesh filter cartridge.
3.Sintered SS316 metal powder type SS filter cartridge.
Product Feature
◪ Excellent mechanical strength.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ Temperature ratings from -73°C to 480°C.
◪ Various micron ratings available from 2um to 1000um nominal.
◪ Back flushing and cleanable for long service life.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ High permeability, no media migration.
◪ Customized dimension are welcome.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø25, 30, 50, 60, 65, 70mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS304, 316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Outside protection net | Optional |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc |
| Effective Surface area | 0.65sqm per 10" cartridge element |
| Operation Temperature | ≦480℃ |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0bar |
Product Details
Product Applications
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is a well-known company that specializes in exceptional sintered filter cartridge .
2. Lvyuan is equipped with a full set of production technology to produce sintered plastic filter.
3. Lvyuan shares a fantastic dream of being a global sintered stainless steel filter producer and wholesaler. Ask! Many customers are satisfied with the professional service provided by Lvyuan. Ask! That Lvyuan develops enterprise culture will help the growth of the company. Ask! The share of Lvyuan Water Purification Equipment in domestic and foreign markets has gradually expanded. Ask!
