    Overview
    Quick Details
    Condition:
    New
    Applicable Industries:
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
    After Warranty Service:
    Online support
    Local Service Location:
    none
    Showroom Location:
    none
    Place of Origin:
    Guangdong, China
    Brand Name:
    Lvyuan / OEM
    Material:
    as request, PP / Cotton / glass fiber
    Weight:
    depends
    Size:
    standard, customization
    Power:
    0
    Warranty:
    Unavailable
    Product name:
    polypropylene yarn for filter cartridge
    Micron Rate:
    1, 3, 5, 10 micron filters cartridge
    Inner core:
    PP or stainless steel
    Length:
    5", 10", 20", 30", 40", 50'' inch
    Flow rate:
    2-8gpm
    Usage:
    liquid filter, water filter parts
    End caps:
    DOE/222Fin/226Fin/222Flat/226Flat
    Outer diameter:
    60~62mm, Jumbo 110~115mm
    Certification:
    CE ISO
    Supply Ability
    Supply Ability:
    5000 Piece/Pieces per Day polypropylene yarn filter cartridge
    Product Description
    Food Grade 30'' 40''inch Polypropylene yarn for filter cartridge Sediment PP water Filters 1 5 10 micron 7

    Food Grade 30'' 40'' inch Polypropylene yarn for filter cartridge Sediment PP water Filters 1 5 10 micron

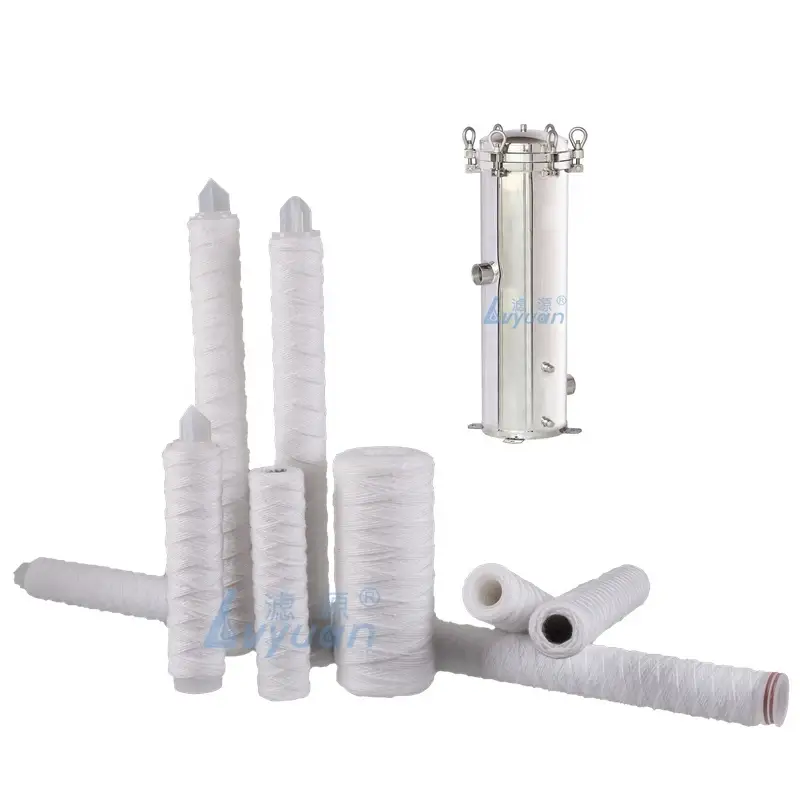

    String wound filter cartridges or wound filter cartridge, spiral wound filter elements are made of Polypropylene / PP, absorbent/bleached cotton, or glass fiber wound yarn materials. Inner core materials PP, 304 stainless stee, and 316 stainless steel are available for option. It is decided by the application operation temperature and PH range.

    PP string wound cartridge filter, cotton string wound cartridge filter and glass fiber cartridge filter can offer true dept filtration for high dirt holding capacity and extremely low media migration. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand higher PSID and severe operating conditions.

    Wound yarn filter cartridges can work very effectively a variety of industrial processing, such as in Pre-RO water treatment, Food & Beverage, Chemical filter solution, waste water treatment, petrochemical process, Electronic & semiconductor etc.

    Food Grade 30'' 40''inch Polypropylene yarn for filter cartridge Sediment PP water Filters 1 5 10 micron 9

    PP yarn wound filter cartridge with PP core

    Food Grade 30'' 40''inch Polypropylene yarn for filter cartridge Sediment PP water Filters 1 5 10 micron 11

    Cotton string wound filter cartridge with stainless steel core

    Food Grade 30'' 40''inch Polypropylene yarn for filter cartridge Sediment PP water Filters 1 5 10 micron 13

    Fiber glass string wound filter cartridge

    Food Grade 30'' 40''inch Polypropylene yarn for filter cartridge Sediment PP water Filters 1 5 10 micron 15

    OD 4.5'' Jumbo size BB PP wound cartridge, 10''x4.5'' and 20''x4.5''

    Food Grade 30'' 40''inch Polypropylene yarn for filter cartridge Sediment PP water Filters 1 5 10 micron 17

    Different end cap for option, code 0/3/6/7/8/9

    Food Grade 30'' 40''inch Polypropylene yarn for filter cartridge Sediment PP water Filters 1 5 10 micron 19

    Different dimension for option

    Specification
    Product
    String wound filter cartridge
    Material
    Polypropylene, absorbent cotton, glass fiber
    Precision filtration
    1, 3, 5, 10, 20, 25, 30, 50, 75~100 micron
    Outer diameter
    60~62mm, Jumbo 110~115mm, or customized as request.
    Inner diameter
    28mm or 30mm
    End cap Code
    DOE=code 0, 222+Fin=code 7, 222+Flat=code 3, 226+Fin=code 8, 226+Flat=code 6, code 9=customized
    Seal Material
    EPDM, Silicone, Viton, NBR, Teflon
    Length
    5'', 10'', 20'', 30'', 40'', 50'', 60'', 70'' or as request
    Core material
    Polypropylene or stainless steel
    Max differential pressure
    4.5bar at 25°C
    Replacment differential pressure
    1-1.5 bar
    Max operating temperature
    PP with PP core:80 °C
    PP with stainless steel core: 100°C
    Absorbent cotton with SS core:180°C
    Glass fibre with SS core: 300°C
    Application
    Food Grade 30'' 40''inch Polypropylene yarn for filter cartridge Sediment PP water Filters 1 5 10 micron 21

    1. Pre-RO water treatment, like drinking water, power, plating and oil industry.

    2. Food and Beverage industry
    3. Chemical, solvent, Pharmaceuticals and ink filter solution
    4. Waste water treatment
    5. Petrochemical process
    6.Electronic & semiconductor etc.

    Production Process
    Food Grade 30'' 40''inch Polypropylene yarn for filter cartridge Sediment PP water Filters 1 5 10 micron 23
    Related Products
    Food Grade 30'' 40''inch Polypropylene yarn for filter cartridge Sediment PP water Filters 1 5 10 micron 25
    Our Company
    Food Grade 30'' 40''inch Polypropylene yarn for filter cartridge Sediment PP water Filters 1 5 10 micron 27
    Food Grade 30'' 40''inch Polypropylene yarn for filter cartridge Sediment PP water Filters 1 5 10 micron 29
    Certifications
    Food Grade 30'' 40''inch Polypropylene yarn for filter cartridge Sediment PP water Filters 1 5 10 micron 31
    Contact
    Food Grade 30'' 40''inch Polypropylene yarn for filter cartridge Sediment PP water Filters 1 5 10 micron 33
    People’s ways of life, industries’ production level, and the economy will get their peaks with the advent of this product. The filter media is thermally bonded to prevent fiber release while providing consistent flow rates. The use of this product helps the producer in many ways which tend to increase his or her production and income. The filter media is thermally bonded to prevent fiber release while providing consistent flow rates.
