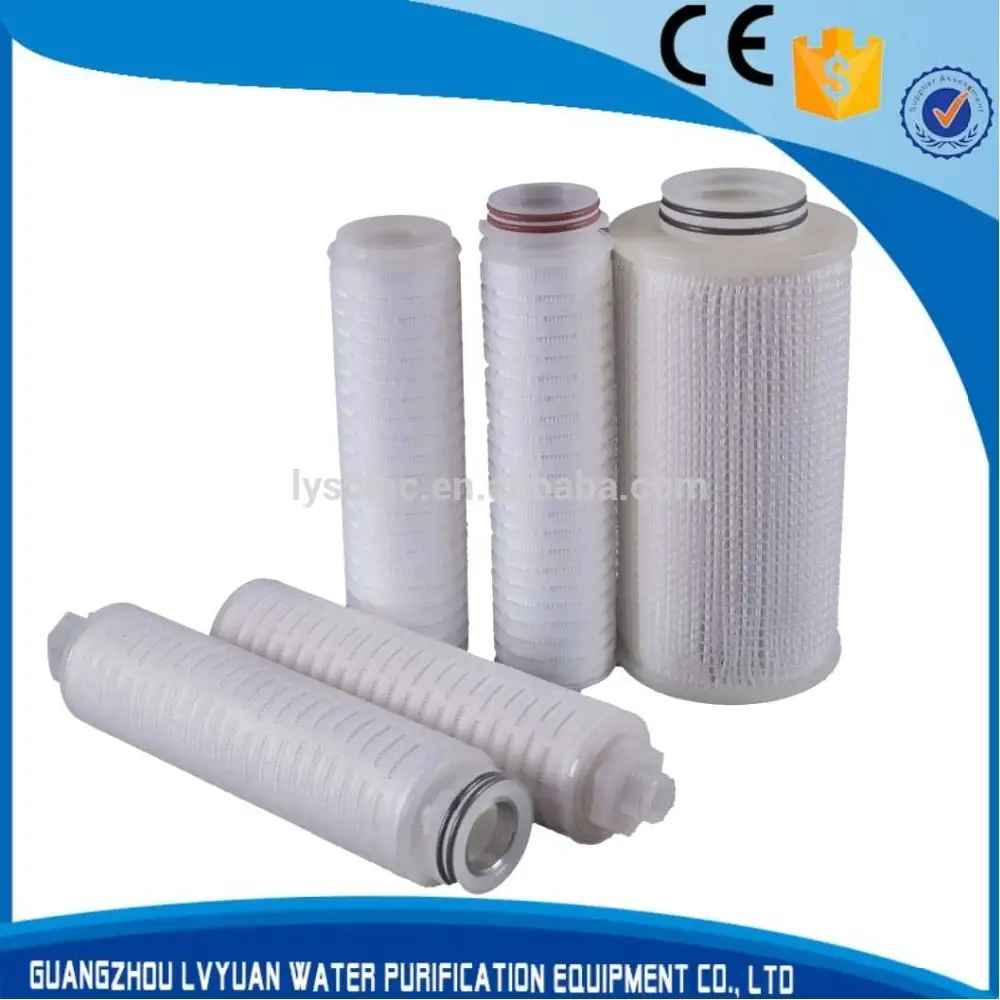

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 1

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 2

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 3

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 4

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 5

Full Types of cartridge filter of Pleated Melt blown String wound Sintered

Inquiry

Write a Review

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Lvyuan / OEM

Model Number:: LY-PF series

Product name:: Pleated filter cartridge

Micron Rate:: 0.1 to 60 micron

Pleated cartridge Material:: PP / PTFE / PES / Nylon 6 / PVDF

Length:: 5", 10", 20", 30", 40" inch

Filter Media:: teflon ptfe membrane

End Cap:: DOE,222+Fin,222+Flat,226+Fin,226+Flat

Gasket/O ring material:: Silicon/EPDM/NBR/Viton/Teflon

Usage:: liquid filter elements, water filter parts

Inner core:: PP / stainless steel

Certification:: CE SGS ISO

Supply Ability

Supply Ability:: 5000 Piece/Pieces per Day types of cartridge filter

Product Description

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 6

Full Types of cartridge filter of Pleated Melt blown String wound Sintered

The filtration media of Polytetrafluoroethylene cartridge is hydrophobic PTFE membrane.
Polyflo cartridgee bears excellent operation features, and its safety and thermal control specifications conform to the requirements of USP of the USA. Each polyflo cartridge has passed 100% integrity testing of bubble point and expanison flow so as to ensure to reach the bacterial retention requirements of USA HIME.

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 14

Pleated Cartridge

High flow Pleated Filter Cartridge

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 16

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 18

End Cap

Filter Housing and filter cartridges

Application

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 20

1. Sterile tank vents
2. Sterile filtration of solvents: esters acetone, carbon tetrachloride, DMSO methanol, ethanol and isopropanol.
3. Sterile filtration of compressed gases: air, nitrogen, fermentation bioreactor feed.

Specification

Filter Media Option	PP cartridge	PTFE cartridge	Nylon 6 cartridge	PES cartridge	PVDF cartridge
Length	5", 10", 20", 30", 40"	5", 10", 20", 30", 40"	5", 10", 20", 30", 40"	5", 10", 20", 30", 40"	5", 10", 20", 30", 40"
Micron Rate	0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron	0.2, 0.45 micron	0.2, 0.45, 0.65, 1 micron	0.1, 0.2, 0.45, 0.65 micron	0.2, 0.45 micron
End Cap	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
Inner Diameter	28mm	28mm	28mm	28mm	28mm
Outer Diameter	68mm (can be customized)	68mm (can be customized)	68mm (can be customized)	68mm (can be customized)	68mm (can be customized)
Jumbo Size	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm
Gasket/O ring material	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon
Effective filtration area	0.4-0.7m²	≥0.72m²	≥0.6m²	≥5m²	≥0.72m²
Max.working pressure difference	0.42Mpa at 25℃	0.42Mpa at 25℃	0.42Mpa at 25℃	0.42Mpa at 25℃	0.42Mpa at 25℃
Max.back pressure	0.28Mpa at 60℃	0.35Mpa at 60℃	0.35Mpa at 25℃	0.21Mpa at 25℃	0.21Mpa at 25℃
Max. working temperature	88℃ at 0.28Mpa, 60℃ at 0.42Mpa	142℃ at 0.276Mpa	49℃ at 0.21Mpa	140℃ at 0.28Mpa	80℃ at 0.173Mpa
Sterilizing temperature	121℃, 30mins	121℃, 30mins	121℃, 30mins	121℃, 30mins	121℃, 30mins

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 22

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 24

Water filter with pp and activated carbon cartridge

Single cartridge filter housing

Cartridge filter housing

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 32

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 34

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 36

PP Melt Blown filter cartridge

String Wound filter cartridge

CTO Activated Carbon filter cartridge

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 38

Our Company

Guangzhou Lvyuan Water Purification Equipment Co.,Ltd is located in Panyu District, Guangzhou city. We're a comprehensive enterprise. Our competitive production lines including:
1. All kinds of filter Cartridges
2. Cartridge filter housings and bag filter housings
3. RO, UF, MBR water purifier and equipment
4. Many kinds of Water treatment equipments
5. Many kinds of Water purifiers and equipments, water softners, and more.
We devote to filtration development for more than 10 years. We can supply advanced technical support and solution for all of our customers.

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 40

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 42

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 44

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 46

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 48

Packing & Delivery

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 50

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 52

Full Types of cartridge filter of Pleated Melt blown String wound Sintered 54

FAQ

1. Q: Are you factory?

A: Yes, we are the professional manufacturer with continuous and improved R & A production, sales and service supply. We will always provide the best technical service support to our clients both in and after warranty period.
2. Q: How to get a quotation?
A: In order to send you our best price, please kindly inform us detail product parameters and order quantity.
3. Q: Can I get your products with our logo and design?
A: Customized service is available. We can OEM or ODM with your logo, but customized products will be extra cost.
4. Q: What's the MOQ ?

A: We can offer the quantity you required, as we don't dictate MOQ terms.
