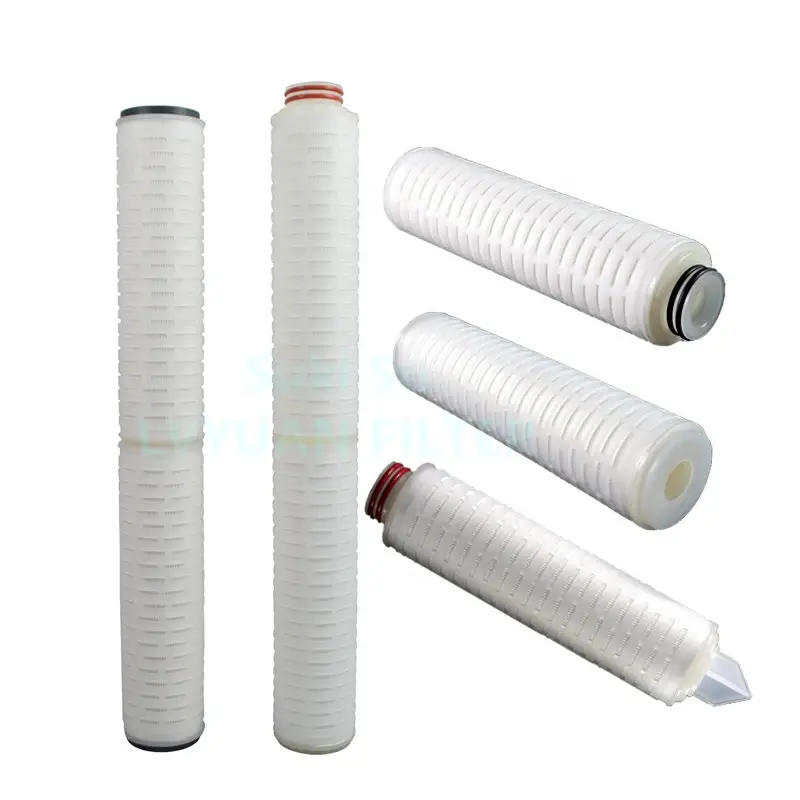

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 1

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 2

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 3

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 4

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 5

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 6

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter

Inquiry

Write a Review

Overview

Quick Details

Condition:: New

Applicable Industries:: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

After Warranty Service:: Online support

Local Service Location:: none

Showroom Location:: none

Video outgoing-inspection:: Provided

Machinery Test Report:: Provided

Marketing Type:: Ordinary Product

Warranty of core components:: 1 Year

Core Components:: Pressure vessel

Place of Origin:: Guangdong, China

Brand Name:: LVYUAN/OEM

Warranty:: 1 Year

After-sales Service Provided:: Online support

Name:: 0.45 Micron PTFE Pleated Filter

Filter membrane material:: PP/PVDF/PTFE/PES/Nylon

Length:: 5 / 10 / 20 / 30 / 40 / 50 / 60 inch

Conector:: Fin/222/226/215/DOE/Thread

Micron:: 0.22/0.5/1/3/5/10/25/50/75/100/150

O-ring material:: EPDM/Silicone

Sealing method:: Hot melting welding

Diameter:: 70mm/OEM

Inner Core:: PP/SS/OEM

MOQ:: Currently no limited

Product Description

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 7

Guangzhou factory water filter manufacturer 0.45 Micron PTFE Pleated Filter with absoluted micron rate

Microporous pleated filter element, the main filter material is : Polypropylene, Hydrophobic PTFE, Hydrophilic PTFE,Polyether sulfone, Nylon, etc.
Most of the raw materials are imported from abroad.Pleated filter element is a kind of deep filtration filter,it is usuaslly used as liquid overheating,clarification, filtration and terminal filter.
It has the following characteristics: the superfine polypropylene fiber membrane as the filtration medium, low pressure differential, high flux, good filtration precision, lower economic cost.
The whole structure of polypropylene, end cover, housing and center pole adopts polypropylene material; It adopts the hot melt welding process, PP and PP melt bonding,without any binder.
It has wide range of chemical compatibility, and also has a series of pore size and form a variety of interface.Material: Pleated filter, Support layer, End-cover, Inside & Outside cylinder are polypropylene.
Welding: It adopts the uniquehot melting methods, no glue, no foreign body fall off.
Typical use: Pharmaceutical, Food, Chemical, Electronics, Environmental protection, etc.
Microporous membrane pleated filter cartridge main features: High interception rate, high liquidity, low pressure differential and a wide range of chemical compatibility;
The production process adopts unique hot melting process technology, no any adhesive, no foreign body release.
It can meet the food,beverage, beer, chemical, pharmaceutical and other industries production requirements.

Polypropylene microporous membrane filter

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 9

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 11

PTFE membrane pleated filter

Hydrophobic PTFE filter

The filter medium is Hydrophobic PTFE microporous membrane filter: Strong hydrophobicity,
High holding rate, excellent chemical resistance and thermal stability, good strength, impact resistance of the forward & reverse pressure.

Hydrophilic PTFE filter

The filter element medium for hydrphilic PTFE microporous membrane filter: The hydrophilic stability, high entrapment rate, excellent chemical resistance thermal stability, good strength, impact resistance of the forward & reverse pressure.

Polyether Sulphone PES Pleated Filter

The PES pleated filter cartridge is constructed of imported polyethersulfone(PES) membrane media and non-woven support materials.The material of cage core and end caps are polypropylene.Adapters are thermally welded with media without using any glue, no any pollution. The PES filter cartridge is ideally suited for critical prefiltration in sterilizing applications and final filtration in a broad range of demanding non-sterile application, the inherently hydrophilic membrane contains no surfactant or wetting agents, which results in good filtration and flow rates.

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 13

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 15

Nylon N66 pleated membrane filter cartridge

The filter medium is hydrophilic nylon microporous membrane filter, It is composed by nylon membrane and the polypropylene support material hot melting, it is no dung, also applicable for the strict chemical and pharmaceutical industries.

PVDF pleated cartridge filter

The PVDF pleated cartridge filter is constructed of imported natural hydrophobic polyvinylenedifluoride(PVDF) membrane media and non-woven support materials. The adaptors are thermally welded with media without using any glue, no any pollution.

High filtration microns, high flow rate, better hydrophobicity, sterilization at high temperature as well as chemical resistance. It is widely used in gas or liquid pre-filtration and widely used in final filtration.

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 17

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 19

Jumbo pleated membrane filter cartridge

The big jumbo pleated filter cartridge is constructed of deep polypropylene membrane, melt blown polypropylene, hydrophilic PES & PTFE. The non-woven support materials. This filter cartridges design increased the effective filtration area, not only can reduct the filter cartridges quantity, but also it can make the smaller housing size. Big flow rate and long service life, lower cost and human cost. The size is divided into 2 kinds of size: 83mm diameter & 131mm diameter. Adaptors are thermally welded with media without using any glue, no any pollution and droppings. Clean & stable, each filter cartridge has passed strict testing by 100% integrity.

Product Name	Guangzhou factory water filter manufacturer 0.45 Micron PTFE Pleated Filter with absoluted micron rate
Filtration media	PP/PTFE/PES/PVDF/Nylon
Support material	Polypropylene
Core & Structural components	Polypropylene
Inner core	PP/Stainless steel
Packing method	Polybag/Vacuum
Filtration precision	0.1μm, 0.2μm, 0.45μm, 0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm
Length	2.5", 5". 10", 20", 30", 40", 50", 60", OEM
Adaptor	215/222/226/Fin/Flat/Thread/OEM
Sealing method	Hot melting welding
Sealing gasket & O-ring material	Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber.
Effect filtration area	≥0.6m²
Filter cartridge diameter	69mm
Max. working temperature	PP: 88℃,0.27Mpa PTFE: 80℃, 0.173Mpa PES: 85℃, 0.28Mpa PVDF: 80℃, 0.173Mpa Nylon: 49℃, 0.21Mpa
Max. positive differential pressure	0.42Mpa (25℃)
Max. back pressure differential pressure	0.28Mpa (25℃)
Sterilization conditions	121℃ 30min
Applications	Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;

Detailed Images

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 21

DOE opened pleated filter

The membrane's micron rating is optional. Options to order for this site include 0.03 to 0.45 microns in 10" to 40" length with either.

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 23

OEM customized size filter

Different length & variety end cap are optional.

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 25

Different end caps pleated filter

Double Open End (DOE), 222 or 226 end configurations, all come standard with EPDM/PTFE/SILICONE/TEFLON seals.

Application

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 27

RO WATER TREATMENT

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 29

BOTTLED MINERAL WATER

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 31

CHEMICAL TECHNOLOGY FILTRATION

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 33

BEER & BEVERAGE FILTRATION

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 35

PETROCHMICAL INDUSTRY

Guangzhou factory absolute micron rating water filter manufacturer 0.45 Micron PTFE Pleated membrane filter 37

SEA DESALINATION WATER EQUIPMENT
