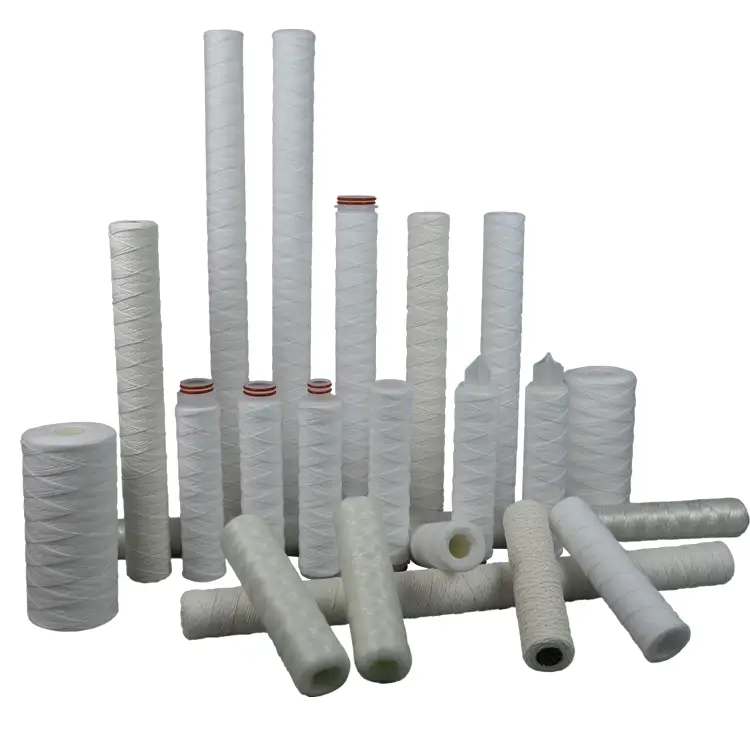

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 1

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 2

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 3

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 4

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 5

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 6

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge

Inquiry

Write a Review

Overview

Quick Details

Condition:: New

Applicable Industries:: Home Use

After Warranty Service:: Online support

Local Service Location:: none

Showroom Location:: none

Video outgoing-inspection:: Provided

Machinery Test Report:: Provided

Marketing Type:: Ordinary Product

Warranty of core components:: 1 Year

Core Components:: Pressure vessel

Place of Origin:: China

Warranty:: 1 Year

After-sales Service Provided:: Online support

Item:: sediment water filter cartridge

Material:: polypropylene fiber , absorbent cotton , glass fiber

Core:: PP/SS

Micron:: 1/5/10/20/30/50/75/100

Inner Diameter:: 28mm / 30mm / OEM

Length:: 5" / 10" / 20" / 30" / 40" / 50" / 60"

PP wound filter+PP core:: 65℃

PP wound filter+SS:: 120℃

Cotton filter+SS:: 180℃

Glass fiber+SS:: 180 - 300℃

Packaging & Delivery

Selling Units:: Single item

Single package size:: 53X33X33 cm

Single gross weight:: 0.200 kg

Package Type:: Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge with plastic end caps: 51x31x33cm- 10" 25pcs/20" 25pcs

Lead Time :

Quantity(Pieces)	1 - 500	501 - 1000	1001 - 5000	>5000
Est. Time(days)	2	5	7	To be negotiated

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge with plastic end caps

Product Description

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 7

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge with plastic end caps:

Our string wound water filter cartridges are structured loose outer layers and tight inner layers which can offer true depth filtration for high dirt holding capacity and extremely low media migration to ensure temperature and chemical compatibility. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand severe operating conditions.

Product name	Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge with plastic end caps
Material	Polypropylene fiber , Absorbent cotton , Glass fiber
Precision	1-100 micron
Outer diameter	28mm-30mm/OEM
Inner diameter	60mm-63mm /115mm /OEM
Length	9.75" 9.87" 10'' 20'' 30'' 40'' 50" 60" / OEM
Connector	DOE/215/222/226/Fin/OEM
Max operating temperature	PP with PP core : 60 °C
		PP with SS core : 100 °C
		Cotton with SS core : 120 °C
		Glass fiber with SS core : 180 °C -- 300 °C

Detailed Images

String wound PP sediment Filter with OEM size

This filter cartridge is made of textile fiber (polypropylene string, Absorbent cotton string, acrylic fiber yarn, fiberglass). According to the specified precess, it is winded tightly with the string in the polyporous core, structured by loose outer layers and tight inner layers, the filter cartridge porous outside it is big, inside it is small, it has the true deep filtration effect, it can remove the suspension, rust, particles, etc.

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 9

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 11

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 13

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 15

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 17

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 19

Jumbo PP yarn string wound water filter

Big jumbo string wound water filter is designed for the removal of sediment, sands, dirt and rust from raw water. 10 20 30 40 inch length size is available, outer diameter is 110mm, inner diameter 28mm/30mm.

The rated temperature is up to 165℉, polypropylene yarn construction for excellent chemical resistance.

Fiberglass wire wound filter cartridge

The fiberglass wire wound filter cartridge is a kind of deep filtration. It is made of glass fiber according to a specific winding process by different winding methods. The glass fiber wire wound filter adopts the structure of inner tight outer pine.
Applications:
Organic solvent filtration, food & beverage & wine, pharmaceutical industry, high & low temperature gas steam filtration.

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 21

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 23

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 25

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 27

Absorbent cotton string wound filter

Absorbent cotton water filter for organic solvents, water, oil, alkaline solution, beverages, medicine, etc.
The working temperature is ≤120℃
Non-toxic, odorless, no secondary pollution, and long service life.
Length: 10", 20", 30", 40"
Core: Stainless steel/SUS304 316L

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 29

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 31

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 33

Polypropylene string wound PP yarn filter

Filter media: Polypropylene
Micron: 1um, 5um, 10um, 20um, 25um, 50um, 75um, 100um
Polypropylene with PP core: ≤80℃
High dirt holding capacity, longer service life.
Fits to all the standard filter housings.
Wide chemical compatibility and high filtration micron.
Various filter media fit with various applications.
All kinds of adaptors are available.

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 35

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 37

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 39

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 41

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 43

Application

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 45

RO SEA WATER TREATMENT

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 47

POWER PLANT

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 49

BIOLOGY TECHNOLOGY

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 51

PETROCHMICAL INDUSTRY

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 53

BOTTLED MINERAL WATER

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 55

BEER & BEVERAGE FILTRATION

Packing & Delivery

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 57

Our Company

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 59

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 61

Guangzhou factory PP/SS core 10 microns cotton PP string yarn melt blown sediment water filter cartridge 63

As a developed water filter cartridges company, we are specialized in one-stop service including designing, producing and sales service. Its unique density gradient construction maximizes efficiency and minimizes pressure drop. Our R&D team are all professional in the water filter cartridges industry. Its unique density gradient construction maximizes efficiency and minimizes pressure drop.
