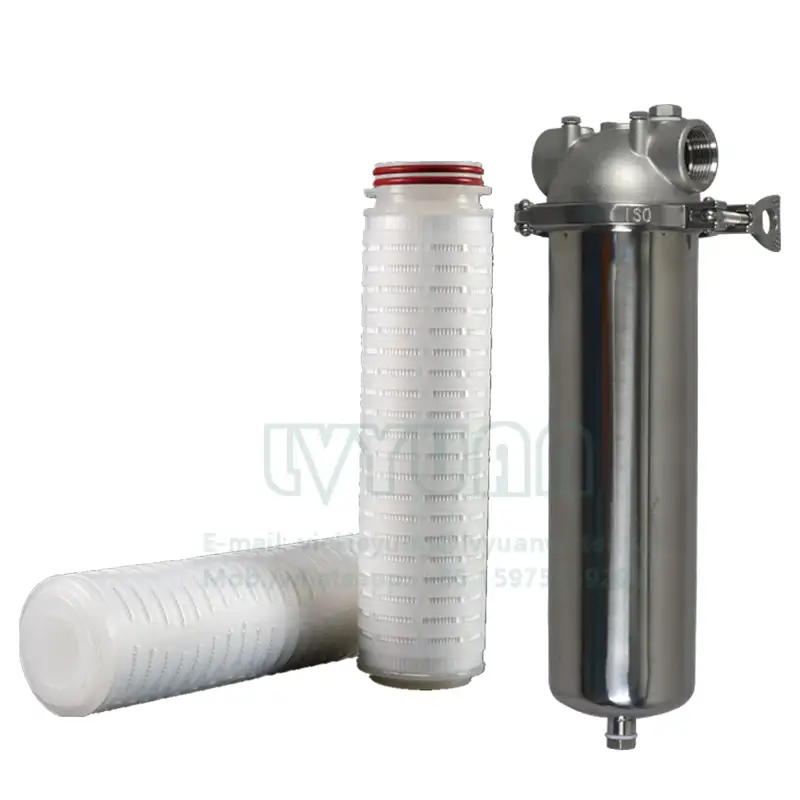

High flow rate 10 micron PP pleated membrane water filter pp sediment with 10 inch length

High flow rate 10 micron PP pleated membrane water filter pp sediment with 10 inch length

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Pleated filter cartridge
  •
+86 13316223340
info@lyfilter.com
+86 020-34460508
+86 020-34425655

Our company always insists on product quality is life, our aim is to provide more professional and attentive services for our global customers.

Overview
Quick Details
Condition:
New
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Online support
Local Service Location:
none
Showroom Location:
none
Video outgoing-inspection:
Not Available
Machinery Test Report:
Not Available
Marketing Type:
Ordinary Product
Warranty of core components:
Not Available
Core Components:
Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC
Place of Origin:
Guangdong, China
Brand Name:
Lvyuan / OEM
Material:
Polypropylene
Weight:
Customized
Size:
Customized
Power:
0
Warranty:
Unavailable
Name:
High flow rate 10 micron PP pleated membrane water filter pp sediment
Filter membrane material:
PP/PVDF/PTFE/PES/Nylon
Length:
10 / 20 / 30 / 40 / 50 / 60 inch
Conector:
Fin/222/226/215/DOE
Micron:
0.5/1/3/5/10/25/50/75/100/150
Sealing method:
Hot melting welding
Diameter:
70mm
Inner Core:
PP/SS
MOQ:
Currently no limited
Supply Ability
Supply Ability:
500 Piece/Pieces per Day



High flow rate 10 micron PP pleated membrane water filter pp sediment with 10 inch length







Product Description

Microporous pleated filter element, the main filter material is : Stainless steel wire mesh, sintered wire mesh, Polypropylene, Hydrophobic PTFE, Hydrophilic PTFE,Polyether sulfone, Nylon, etc. Most of the raw materials are imported from abroad.Pleated filter element is a kind of

deep filtration filter, it is usuaslly used as liquid overheating,clarification, filtration and terminal filter.

It has the following characteristics: the superfine polypropylene fiber membrane as the filtration medium, low pressure differential, high flux, good filtration precision, lower economic cost. The whole structure of polypropylene, end cover, housing and center pole adopts polypropylene material; It adopts the hot melt welding process, PP and PP melt bonding,without any binder. It has wide range of chemical compatibility, and also has a series of pore size and form a variety of interface.Material: Pleated filter, Support layer, End-cover, Inside & Outside cylinder are polypropylene.

Welding: It adopts the uniquehot melting methods, no glue, no foreign body fall off.

Typical use: Pharmaceutical, Food, Chemical, Electronics, Environmental protection, etc.

Microporous membrane pleated filter cartridge main features: High interception rate, high liquidity, low pressure differential and a wide range of chemical compatibility;

The production process adopts unique hot melting process technology, no any adhesive,

no foreign body release.

It can meet the food,beverage, beer, chemical, pharmaceutical and other industries production

requirements.



Filtration medium

PP / PTFE / PVDF / PES / Nylon

Up & Bottom flow support layer material

Polypropylene

Support frame & Structural Components

Polypropylene

Filtration precision

0.1,0.2,0.45,1,5,10,20...(um)

Length

5",10",20",30",40", 50", 60"

Sealing material

Silicone rubber,Nitrile butadiene rubber,

EPDM,Fluorine rubber.

Sealing method

Hot melting welding

Effect filtration area

≥0.6 m/10"

Filter cartridge diameter

69.0-70mm(Slim)/110mm(Jumbo)

Maximum Working Temperature

80℃,0.17 MPa

Highest Temperature

140℃,0.27 MPa

Max positive differential pressure

0.42 MPa(25℃)

Max back pressure differential pressure

0.28 MPa(25℃)

Sterilization Conditions

121℃ 30 min

Application Field

Chemical Industry: Organic solvents,

various of alcohols, Chemical reagents

filtration,Sterile storage tank breathing

apparatus, such as fermentation tank air filter









Product Overviews











Certifications









Advantages

 Polypropylene microporous membrane filter

Using the polypropylene composite membrane filter as the filtration material,

this filter is a kind of advanced and fixed type deep filtration filter cartridges,

the filtration micron is from 0.1um to 60um. The filtration membrane is not affected

by feed water pressure. Its unique advantages for low pressure differential, high flux,

good filtration precision, and low economic cost, it is favored by the users.







Hydrophobic PTFE filter

The filter medium is Hydrophobic PTFE microporous membrane filter: Strong hydrophobicity,

High holding rate, excellent chemical resistance and thermal stability, good strength,

impact resistance of the forward & reverse pressure.







Hydrophilic PTFE filter

The filter element medium for hydrphilic PTFE microporous membrane filter: The hydrophilic

stability, high entrapment rate, excellent chemical resistance thermal stability, good strength,

impact resistance of the forward & reverse pressure.







Polyether Sulphone Filter

The filter element is advanced in the world, the PES membrane micro opening rate is more than

80%, it has the unique microporous geometry type, it improves the filter cartridge filtration

efficiency and liquidity of the difficult solution. It is composed by PES membrane and the

polypropylene support material hot melting, it is no dung, also applicable for the strict chemical

and pharmaceutical industries.

The main features: Unique hydrophilic,not included the activated surfactant and surface

lubricant, it is provided high level filtration precision and flow rate for the filtration liquid.

It is applicable for wide PH range, low adsorption for the protein and the valuave heavy metal

biological, high entrapment rate, excellent chemical resistance and thermal stability,

good strength,  impact resistance of the forward & reverse pressure.







Nylon filter

The filter medium is hydrophilic nylon microporous membrane filter, It is composed by nylon

membrane and the polypropylene support material hot melting, it is no dung, also applicable

for the strict chemical and pharmaceutical industries.

Main features:Hydrophilic stability, strong flexibility, high entrapment rate, excellent chemical

resistance, especially suitable for filtering of the organic solvent. Forward and reverse pressure

shock resistance.









Packaging







-------------------------------------------------------------------------------------------------------------------------------------------------------------------------







Pls feel free to contact us if you are interested in our products or company.

Welcome to contact us for more details or quotes.      : )











Contact us:



The reasons that the product is widely used in industries are mainly due to the fact that using this product can cut energy costs while maintaining high productivity. It features a high flow rate and stable filtering accuracy. The use of this product helps people reduce their working hours and helps relieve them from tiring works and heavy tasks. It features a high flow rate and stable filtering accuracy.
