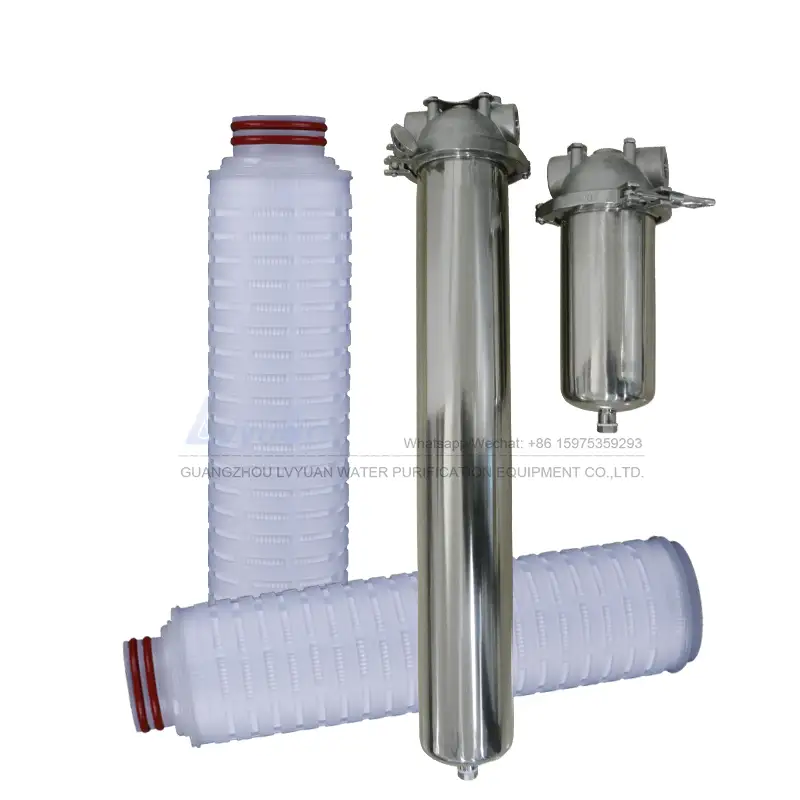

High flow security RO filter 5 micron pleated sediment filter for stainless steel cartridge housing 10 20 inch length

High flow security RO filter 5 micron pleated sediment filter for stainless steel cartridge housing 10 20 inch length

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Restaurant, Energy & Mining, Food & Beverage Shops
Place of Origin:
Guangdong, China
Brand Name:
Lvyuan/OEM
Material:
Polypropylene
Weight:
Standard
Size:
Standard
Power:
0
Warranty:
Unavailable
Name:
High flow security RO filter 5 micron pleated sediment filter
Filter membrane material:
PP/PVDF/PTFE/PES/Nylon
Length:
5 / 10 / 20 / 30 / 40 / 50 / 60 inch
Conector:
Fin/222/226/215/DOE/Thread
Micron:
0.22/0.5/1/3/5/10/25/50/75/100/150
O-ring material:
EPDM/Viton/Silicone
Sealing method:
Hot melting welding
Diameter:
70mm/OEM
Inner Core:
PP/SS/OEM
MOQ:
Currently no limited
After-sales Service Provided:
Online support

Packaging & Delivery

Selling Units:
Single item
Single package size:
68X40X40 cm
Single gross weight:
23.000 kg
Package Type:
High flow security RO filter 5 micron pleated sediment filter for stainless steel cartridge housing: 10" 50PCS/CTN, 20" 25PCS/CTN, 30" 25PCS/CTN, 40" 25PCS/CTN.
Lead Time :
Quantity(Pieces) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 2 5 7 To be negotiated
Product Description

High flow security RO filter 5 micron pleated sediment filter for stainless steel cartridge housing

Microporous pleated filter element, the main filter material is : Polypropylene, Hydrophobic PTFE, Hydrophilic PTFE,Polyether sulfone, Nylon, etc.
Most of the raw materials are imported from abroad.Pleated filter element is a kind of deep filtration filter,it is usuaslly used as liquid overheating,clarification, filtration and terminal filter.
It has the following characteristics: the superfine polypropylene fiber membrane as the filtration medium, low pressure differential, high flux, good filtration precision, lower economic cost.
The whole structure of polypropylene, end cover, housing and center pole adopts polypropylene material; It adopts the hot melt welding process, PP and PP melt bonding,without any binder.
It has wide range of chemical compatibility, and also has a series of pore size and form a variety of interface.Material: Pleated filter, Support layer, End-cover, Inside & Outside cylinder are polypropylene.
Welding: It adopts the uniquehot melting methods, no glue, no foreign body fall off.
Typical use: Pharmaceutical, Food, Chemical, Electronics, Environmental protection, etc.
Microporous membrane pleated filter cartridge main features: High interception rate, high liquidity, low pressure differential and a wide range of chemical compatibility;
The production process adopts unique hot melting process technology, no any adhesive, no foreign body release.
It can meet the food,beverage, beer, chemical, pharmaceutical and other industries production requirements.

Polypropylene microporous membrane filter

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.

PTFE membrane pleated filter

Hydrophobic PTFE filter

The filter medium is Hydrophobic PTFE microporous membrane filter: Strong hydrophobicity,
High holding rate, excellent chemical resistance and thermal stability, good strength, impact resistance of the forward & reverse pressure.


Hydrophilic PTFE filter

The filter element medium for hydrphilic PTFE microporous membrane filter: The hydrophilic stability, high entrapment rate, excellent chemical resistance thermal stability, good strength, impact resistance of the forward & reverse pressure.

Polyether Sulphone PES Pleated Filter

The PES pleated filter cartridge is constructed of imported polyethersulfone(PES) membrane media and non-woven support materials.The material of cage core and end caps are polypropylene.Adapters are thermally welded with media without using any glue, no any pollution. The PES filter cartridge is ideally suited for critical prefiltration in sterilizing applications and final filtration in a broad range of demanding non-sterile application, the inherently hydrophilic membrane contains no surfactant or wetting agents, which results in good filtration and flow rates.

Nylon N66 pleated membrane filter cartridge

The filter medium is hydrophilic nylon microporous membrane filter, It is composed by nylon membrane and the polypropylene support material hot melting, it is no dung, also applicable for the strict chemical and pharmaceutical industries.

PVDF pleated cartridge filter

The PVDF pleated cartridge filter is constructed of imported natural hydrophobic polyvinylenedifluoride(PVDF) membrane media and non-woven support materials. The adaptors are thermally welded with media without using any glue, no any pollution.

High filtration microns, high flow rate, better hydrophobicity, sterilization at high temperature as well as chemical resistance. It is widely used in gas or liquid pre-filtration and widely used in final filtration.

Jumbo pleated membrane filter cartridge

The big jumbo pleated filter cartridge is constructed of deep polypropylene membrane, melt blown polypropylene, hydrophilic PES & PTFE. The non-woven support materials. This filter cartridges design increased the effective filtration area, not only can reduct the filter cartridges quantity, but also it can make the smaller housing size. Big flow rate and long service life, lower cost and human cost. The size is divided into 2 kinds of size: 83mm diameter & 131mm diameter. Adaptors are thermally welded with media without using any glue, no any pollution and droppings. Clean & stable, each filter cartridge has passed strict testing by 100% integrity.


Product Name
High flow security RO filter 5 micron pleated sediment filter for stainless steel cartridge housing
Filtration media
PP/PTFE/PES/PVDF/Nylon
Support material
Polypropylene
Core & Structural components
Polypropylene
Inner core
PP/Stainless steel
Packing method
Polybag/Vacuum
Filtration precision
0.1μm, 0.2μm, 0.45μm,  0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm
Length
2.5", 5". 10", 20", 30", 40", 50", 60", OEM
Adaptor
215/222/226/Fin/Flat/Thread/OEM
Sealing method
Hot melting welding
Sealing gasket & O-ring material
Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber.
Effect filtration area
≥0.6m²
Filter cartridge diameter
69mm
Max. working temperature
PP: 88℃,0.27Mpa
PTFE: 80℃, 0.173Mpa
PES: 85℃, 0.28Mpa
PVDF: 80℃, 0.173Mpa
Nylon: 49℃, 0.21Mpa
Max. positive differential pressure
0.42Mpa (25℃)
Max. back pressure differential pressure
0.28Mpa (25℃)
Sterilization conditions
121℃ 30min
Applications
Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;
Detailed Images

DOE opened pleated filter

The membrane's micron rating is optional. Options to order for this site include 0.03 to 0.45 microns in 10" to 40" length with either.

OEM customized size filter

Different length & variety end cap are optional.

Different end caps pleated filter

SDouble Open End (DOE), 222 or 226 end configurations, all come standard with EPDM/PTFE/SILICONE/TEFLON seals.

Application

RO WATER TREATMENT

BOTTLED MINERAL WATER

CHEMICAL TECHNOLOGY  FILTRATION

BEER & BEVERAGE FILTRATION

PETROCHMICAL INDUSTRY

SEA DESALINATION WATER EQUIPMENT

Packing & Delivery

Container for shipment

Container for shipment
