High Polymer HDPE PE 60'' 100um Sintered Plastic Filter Element
5.0
Start Port:
Guangzhou
Production Capacity:
10000 units/Month
Place of Origin:
Guangdong, China
Payment:
T/T, Alibaba Trade Assurance, paypal
MOQ:
1 pcs
Model:
LY-HFPL
Delivery Time:
Within 7 working days
Certification:
ISO 9001
Brand:
OEM/Lvyuan
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Material
pe
Availability
OEM

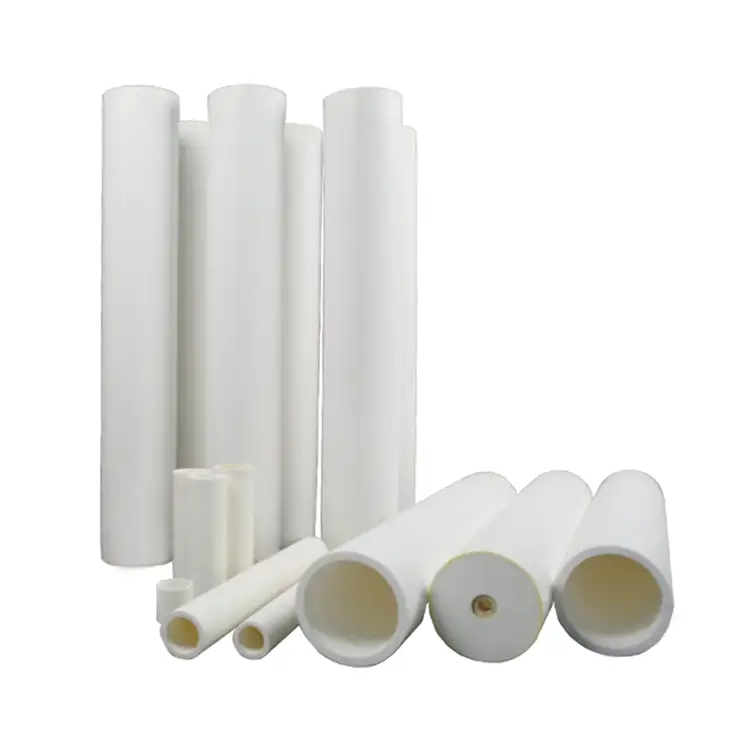

High Polymer HDPE Waste Water Treatment PE Sintered Plastic Filter Element
Product Description
The PE filter element has uniform pore size distribution, strong acid and alkali resistance, high temperature resistance, good mechanical properties, and strong resistance to organic solvents. The production of large-scale water treatment equipment can adopt automatic or manual recoil deslagging method, solid particles can be recovered by dry slagging, without frequent replacement of filter elements, automatic operation, low filtration cost and other advantages, which are well received by users.
Filter Media | PE, HDPE, PTFE, PVDF, PA/Nylon etc |
Micron rate | 0.2um, 0.5um, 1um, 3um, 5um, 10um, 25um, 30um, 50um, 75um, 100um, etc |
Reference dimension (mm) | 31x12x1000, 31x20x1000, 38x20x1000, 38x18x1000, 38x20x1200, 38x20x1300, 38x20x150, 38x20x400, 38x20x250, 38x20x200, 38x20x180, 38x20x150, 50x20x1000, 50x31x1000, 50x38x1000, 65x31x1000, 65x38x1000, 64x44x1000, 78x62x750mm, etc. |
Connector type | DOE, SOE, Flat, insert, thread, 226, 222, 215, M36, M30, M27, M25, M22, M14, M12, or as request. |
Max. operating temperature | PE≤82℃; PTFE≥200℃; PA≤120℃ |
Product Feature
High porosity to ensure a greater flow per unit area; 2. Smooth outer surface, impurities are not easy adhesion, back washing easy and thorough; 3. Anti-fouling ability: the small size of the filter so that impurities can’t be retained in the filter body; 4. Resistance to strong acid, alkali corrosion, resistance to organic solvents; 5. Excellent mechanical properties; 6. No particle release. 7. Wide Product range and wide scope of application
