high quality pleated filter best for food and beverage Lvyuan
Start Port:
Guangzhou
Production Capacity:
500 units/Month
Place of Origin:
Guangdong, China
Payment:
T/T, Western Union, MoneyGram, Alibaba Trade Assurance, paypal
MOQ:
10pcs
Model:
LY-PL-PTFE
Delivery Time:
Within 7 working days
Certification:
SGS, ISO 9001
Brand:
LVYUAN
Application Scope
Lvyuan Water Purification Equipment 's cartridge housing manufacture can play a role in various industries.While providing quality products, Lvyuan Water Purification Equipment is dedicated to providing personalized solutions for customers according to their needs and actual situations.
1. Concept of pleated polypropylene filter cartridge provides valuable reference for improvement design and optimization of body framework structure of pleated filter .
2. The product has a smooth feeling. The calendering process in which the fabric is passed between heated rollers to generate smooth and polished effects.
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. can better understand and support the customer's requirement.

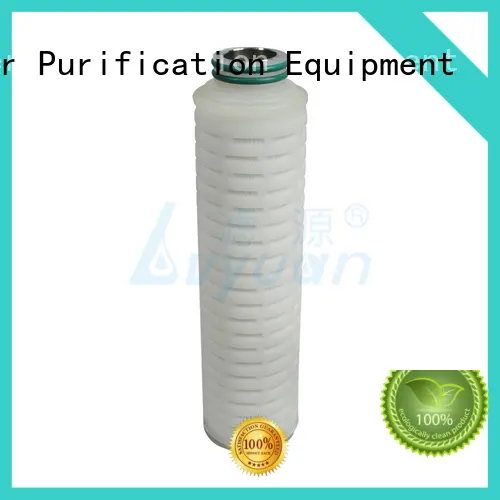

PTFE membrane cartridge filter is constructed of imported natural
hydrophobic PTFE(Polytetrafluoroethylene) membrane and non-woven support materials. The adapters are thermally welded without the uses of glues or adhesives to prevent any possibility of pollution. These economical PTFE membrane cartridge filters provide superior hydrophobicity as compared to polypropylene filters commonly used in compressed air applications, making it ideally suited for utility as well as tank vent applications, without the higher costs of the typical PTFE filter.
hydrophobic PTFE(Polytetrafluoroethylene) membrane and non-woven support materials. The adapters are thermally welded without the uses of glues or adhesives to prevent any possibility of pollution. These economical PTFE membrane cartridge filters provide superior hydrophobicity as compared to polypropylene filters commonly used in compressed air applications, making it ideally suited for utility as well as tank vent applications, without the higher costs of the typical PTFE filter.
Product Feature
◪ Excellent hydrophobic performance, the water erosion is more resistant than the common PVDF membrane.
◪ Withstand the water shocks, back pressures and repeated high temperature sterilizations.
◪ 100% bacterial retention & effective filtration to 0.2 μm particle.
◪ 100% integrity tested.
◪ It is constructed of 2 kinds of hot welding materials(PTFE & PP), no any adhesives, clean & stable, meet the high standards of pharmaceutical industry.
Product Parameter
| Product Name | 10 inch PTFE membrane pleated filter cartridge with stainless steel 222 |
| Filter media | PTFE membrane |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/VITON/PTFE/NBR/TEFLON |
| Outer diameter | 2.7”(69mm) |
| Length | 9.75”, 10”, 20”, 30”, 40”, Customized |
| End cap | 215/222/226/FIN/DOE/SS |
| Filtration area | ≥0.72m² |
| Max.operating temperature | 80℃, 0.173Mpa |
| Micron rating(μm) | 0.2, 0.45 |
Product Details
part.1
It is constructed of 2 kinds of hot welding materials(PTFE & PP), no any adhesives,
clean & stable.
part.2
DOE double opened PTFE membrane filter with PTFE gasket. It is a good choice for the pharmaceutical and ohter strict applications.
part.3
The adapters are thermally welded without the uses of glues or adhesives to prevent any possibility of pollution.
part.4
Different length & variety end cap are optional.
Product Applications
Reverse osmosis water system prefiltration
Electronic l industry
Filtration of mineral water
Filtration of organic solvent & ink
Filtration of pharmaceuticals
Filtration of biological
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. does exports of pleated filter to many countries on a basis of professional sales members and abundant know-how on trade business.
2. With a strong technical foundation, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has taken a big step in the development of pleated filter cartridge .
3. Our ultimate goal is to be a globally famous pleated water filters supplier brand. Please contact us! With introducing highly advanced machines and technology, Lvyuan aims to be an outstanding pleated filter element manufacturer. Please contact us!
