high quality sintered metal filter elements manufacturer for food and beverage Lvyuan
1. The quality of Lvyuan sintered metal filter elements is ensured. It has passed strict quality tests and visual inspections by both the authority and our appointed agent. The filter media is thermally bonded to prevent fiber release while providing consistent flow rates
2. This product is highly recommended worldwide due to its high economic efficiency. It is suitable to use with aqueous and organic solvent samples due to its broad chemical compatibility
3. This product has a strong weather ability. It will not easy to lose its strength and shape when exposed to the constantly changing atmosphere. It has a large effective filter area
4. The product has very high ratings when it comes to CRI. Its light is close to the daylight's value, reflecting colors truly and naturally. The inner support layer is closely connected to the filter material, making it of strong impact resistance
Stainless steel filter element can get a large filtration area and with high flow rate. It extends cartridge life and have more dirt holding capacity.
Moreover, The stainless steel filter cartridges are designed for cleanable and reusable applications thereby eliminating frequent cartridge change out, so it can significantly reduce disposal cost.
Non-standard Stainless steel filter cartridges can be easily customized with various dimension, end cap, outer cage pattern etc. So as long as customer give us the picture and drawing of the ss filter cartridge, we can custom-make the exact ss filter element to you.

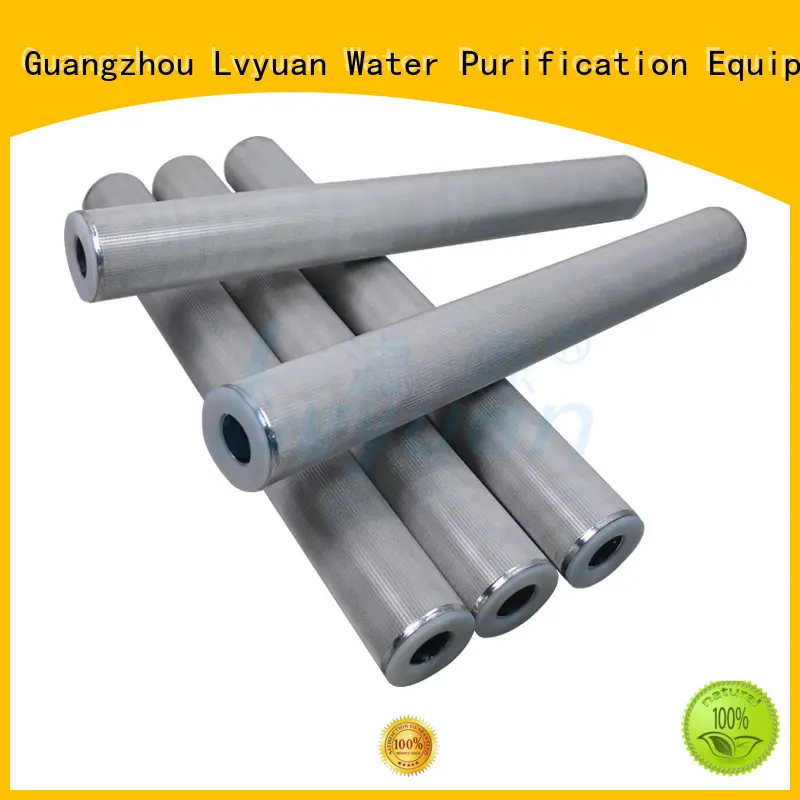

◆◆ Sintered Stainless Steel Filter Cartridges are the perfect choice for high temperature, high differential pressure and high viscosity applications. Manufactured with 304, 316 or 316L material, there’re mainly 3 types of stainless steel cartridge designs are widely used in the industry.
1. Plain cylindrical design SS wiremesh filter cartridge.
2. Pleated configuration design SS folded mesh filter cartridge.
3. Sintered SS316 metal powder type SS filter cartridge.
Product Feature
◪ Excellent mechanical strength.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ Temperature ratings from -73°C to 480°C.
◪ Various micron ratings available from 2um to 1000um nominal.
◪ Back flushing and cleanable for long service life.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ High permeability, no media migration.
◪ Customized dimension are welcome.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø25, 30, 50, 60, 65, 70mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS304, 316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Outside protection net | Optional |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc |
| Effective Surface area | 0.65 sqm per 10" cartridge element |
| Operation Temperature | ≦ 480℃ |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0 bar |
Product Details
Product Applications
Company Features
1. Excellence in sintered metal filter elements and profession in ss sintered filter cartridge help Lvyuan to win more customers. Our company has built up a solid customer base. These customers range from small manufacturers to some of the robust and renowned companies. They all benefits from our quality products.
2. Our factory features a reasonable layout. From the delivery of raw materials to final despatch, our highly efficient route throughout the factory means everything is clear and defined.
3. We are possessed with a manufacturing certificate. This certificate permits all of our production activities, including materials sourcing, R&D, designing, and producing. As a top supplier of sintered plastic filter, Lvyuan is committed to creating sintered metal filter cartridge for you. Check it!
