high quality sintered steel filter efficient for food and beverage Lvyuan

Start Port:
Guangzhou
Production Capacity:
400 units/Month
Place of Origin:
Guangdong, China
Payment:
T/T, Alibaba Trade Assurance, paypal
MOQ:
10pcs
Model:
LY-TIC
Delivery Time:
In 7 to 15 working days
Certification:
SGS, ISO 9001
Brand:
OEM/Lvyuan
Inquiry
Application Scope
Lvyuan Water Purification Equipment 's cartridge filter manufacturer is widely used in the Manufacturing Environmental Protection Waste Treatment Water Treatment industry.Lvyuan Water Purification Equipment always gives priority to customers and services. With a great focus on customers, we strive to meet their needs and provide optimal solutions.
  • high quality sintered steel filter efficient for food and beverage Lvyuan 11
Company Advantages
1. Compliance with recognized safety standards is necessary for Lvyuan sintered steel filter to be recognized. These can be in the form of test reports from recognized testing laboratories.
2. With good properties of sintered steel filter , sintered metal filters suppliers can be widely used in many fields.
3. The principle sintered steel filter of Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has an important instructive function to develop sintered metal filters suppliers with sintered metal filter elements .
4. As sintered steel filter technology widespreadly applied, Guangzhou Lvyuan Water Purification Equipment Co., Ltd.'s research and development capabilities is improved.
high quality sintered steel filter efficient for food and beverage Lvyuan 12

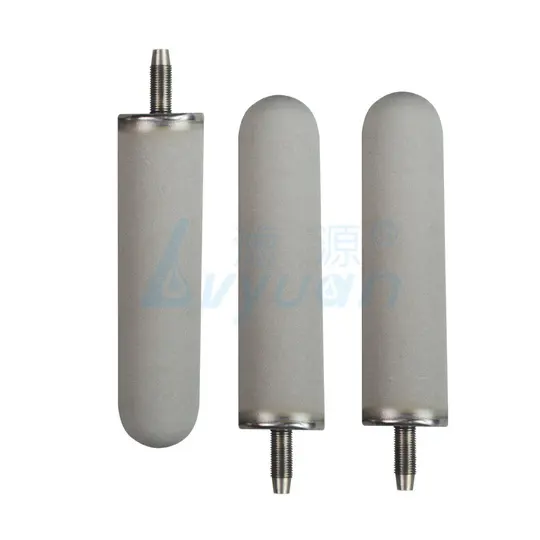

Sintered Titanium water filter cartridge is based on pure titanium powder (99.7% or higher) as the main raw material, made through high temperature sintering process. The uniform structure, small pore density is high, the filtration resistance, good permeability. Also it has the high filtration precision, acid & alkali corrosion, high temperature resistant characteristic. It can be used for solid liquid, gas separation and purification. The service performance is excellent, but the suction filter and press-filter, it will not form secondary pollution, simple operation, it can be on-line regeneration, easy to clean, and long service life.


  Product Feature

  • ◪   Uniform structure, narrow pore size distribution, and high separation efficiency.

  • ◪   High porosity, the resistance of filtration less, and the penetration efficiency is high.

  • ◪   High temperature resistant, it can be normally used below in 280 degree.

  • ◪   Good chemical stability, acid & alkali corrosion resistance, and oxidation resistance.

  • ◪   No particles fall off, it will not make the concentrate form secondary pollution, it conforms to be food hygiene and pharmaceutical GMP requirements.

  • ◪   Good mechanical performance, it can have the suction filtration and press-filtration, simple operation.

  • ◪   Low differential pressure, the area of cover is small, and large water flow rate;od mechanical performance, it can have the suction filtration and press-filtration, simple operation.

  • ◪   Strong antimicrobial ability, no microbes.

  • ◪   The finished-products technology is good, the overlength of overall length can be reached to 1000mm.

  • ◪   It can be on-line regeneration, easy to clean, and long service life.


Product Parameter



Fiter Cartridge dimensions
Length5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm)
DiameterØ22, 30, 50, 60, 70, 80, 100, 120mm
Other dimensionsCustomized by customer’s request.
Material of constructions
Filter mediaTitanium
Connector typeFlat, Insert type, Thread type, Fin
End capsDOE, 215, 222, 226, M20, M30, M42 or as request.
Sealing materialSilicone, NBR, EPDM, Fluoro rubber, etc
Performance
Removal rate0.1, 0.45, 1, 3, 5, 10,20, 30, 40, 50, 100um
Porosity28-50%
Temperature Tolerance≦ 300℃ wet
Permeability0.02-20L/cm2 min Pa
Maximum Operating Pressure differential6.0 bar
Flow rate (L/H)180, 200, 250, 280, 300, 350, 500, 800, 1000, 1500, 1600


◆◆Pure water flow rate reference table: the initial value of 10'' sintered titanium cartridge (P=0.2 MPa, 1cP, 25℃)

Micron rate (μm)0.20.451235102030
Flow rate (L/H)1802002502803003505008001000



Product Details



high quality sintered steel filter efficient for food and beverage Lvyuan 13

part.1
Various end caps. End caps can be customized as request.
high quality sintered steel filter efficient for food and beverage Lvyuan 14

part.2
Various dimensions. Dimension can be customized as request.
high quality sintered steel filter efficient for food and beverage Lvyuan 15

part.3
Wall thickness can be tailor made as request, 1mm, 2mm, 3mm, etc.



Product Applications



high quality sintered steel filter efficient for food and beverage Lvyuan 16
Pharmaceutical industry


high quality sintered steel filter efficient for food and beverage Lvyuan 17
Chemical industry
high quality sintered steel filter efficient for food and beverage Lvyuan 18
Electronic industry
high quality sintered steel filter efficient for food and beverage Lvyuan 19
Water treatment industry
high quality sintered steel filter efficient for food and beverage Lvyuan 20
Food and beverage industry
high quality sintered steel filter efficient for food and beverage Lvyuan 21
Oil refining industry

Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has been focused on the field of sintered metal filters suppliers for many years.
2. sintered filter suppliers has excellent quality and excellent performance.
3. Lvyuan Water Purification Equipment is always improving our design and patterns to confirm to the world market. Contact us! Lvyuan determines to make accomplishments to keep improving in sintered filter cartridge filed. Contact us! It is indispensable for Lvyuan to develop its enterprise culture. Contact us!
