Home  > Stainless steel sintered filter cartridge  >  High temp Milli-poreMicron SS 304 316L sintered Powder Candle filter Element for water liquid air natural gas filtration
High temp Milli-poreMicron SS 304 316L sintered Powder Candle filter Element for water liquid air natural gas filtration

High temp Milli-poreMicron SS 304 316L sintered Powder Candle filter Element for water liquid air natural gas filtration

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Applicable Industries:
Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Energy & Mining, Food & Beverage Shops
After Warranty Service:
Online support
Local Service Location:
none
Showroom Location:
none
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
Pressure vessel
Place of Origin:
Guangdong, China
Brand Name:
Lvyuan/OEM
Warranty:
1 Year
After-sales Service Provided:
Online support
Product name:
milli-pore candle filter
Micron Rate:
0.1 to 400 micron
OEM dimension:
Available
Length:
5", 10", 20", 30", 40", 50'', 60'' inch
Stainless steel Material:
304, 316, 316L
Interface form:
222,226,215, M36, M24, M22, M20 thread interface
Layer:
powder/pleated/mesh cartridge filter
Usage:
gas, liquid filtration
Heat resistence:
- 200 -- 500 degree
Working pressure:
0.1 to 30Mpa

High temp Millipore Micron SS 304 316L sintered Powder Candle filter Element for water liquid air natural gas filtration

Product Description

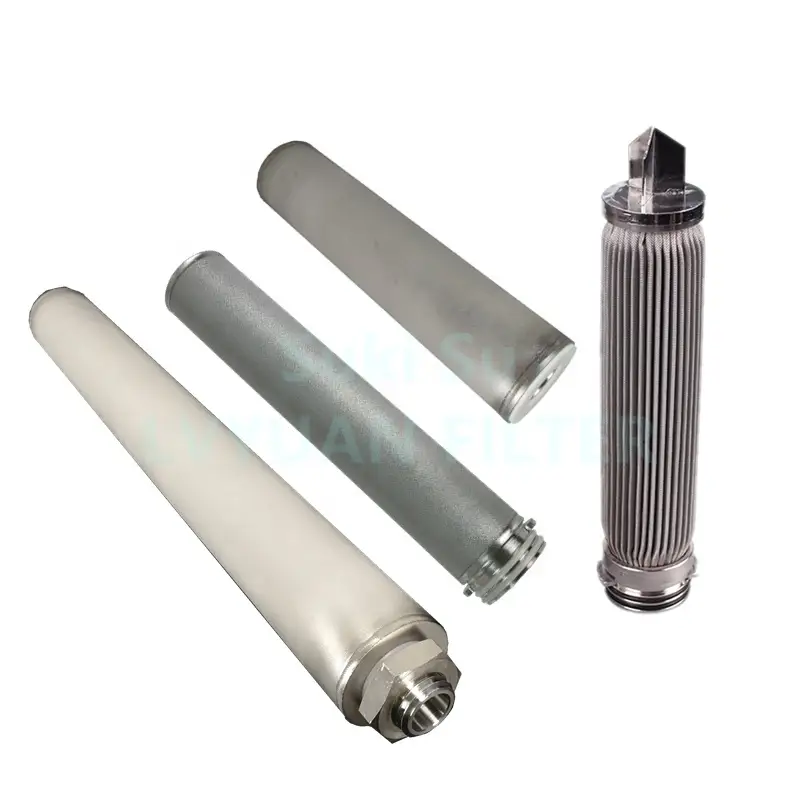

Plain cylindrical design Stainless Steel Wire Mesh filter cartridge

Pleated configuration design Stainless Steel folded mesh filter cartridge

Sintered Porous Stainless Steel SUS316 Powder Filter Cartridge

Customized Porous Stainless Steel Filter cartridge with SS support Frame

Porosity 0.5 1 5 10 25 50 75 100 um micron Sintered Porous Stainless Steel Filter tube from cartridge filters supplier China

Non-standard Stainless steel filter cartridge specifications (special size, shape, connection, etc) can be customized according to customer's requirement.

Fiter Cartridge dimensions
Length
5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm)
Diameter
Ø25, 30, 50, 60, 65, 70mm
Other dimensions
Customized by customer's request.
Material of constructions
Filter media
SUS304, 316, 316L stainless steel, titanium
Connector type
Flat, Insert type, Thread type, Fin
End caps
DOE, SOE, 215, 222, 226, M20, M30, M42, 1'' NPT/BSP or as request.
Outside protection net
Optional
Sealing material
Silicone, NBR, EPDM, Buna, Teflon, etc
Performance
Removal rate
0.2, 0.45, 1, 3, 5, 10, 20, 25, 30, 40, 50, 100um, micron etc
Effective Surface area
0.65sqm per 10" cartridge element
Operation Temperature
≦480℃
Cleaning method
back flushing, ultrasonic or other non-abrasive cleaning
Maximum Operating Pressure differential
4.0bar

Features:

1.Excellent mechanical strength.
2. High dirt holding capacity.
3. High pressure resistance, withstand capacity and low pressure drop.
4. Temperature ratings from -73°C to 480°C.
5. Various micron ratings available from 2um to 1000um nominal.
6. Back flushing and cleanable for long service life.
7. Strong corrosion resistant for wide chemical compatibility.
8.High permeability, no media migration.
9.Customized dimension are welcome.

Application

Stainless steeel Filter Cartridge Applications:
1. Water filtrations
2. Hydraulics
3. Automotive
4. Pneumatics
5. Chemical
6. Petrochemical
7. Medical
8. Oil & gas
9. Aeronautical
10. Mining
11. Food & beverage
12. Pharmaceutical

Products Show
stainless steel wire mesh filter cartridge
Various mesh or filtration micron rate available for option.
Slim size 2.5'' OD, and Jumbo cartridge 4.5'' OD.
