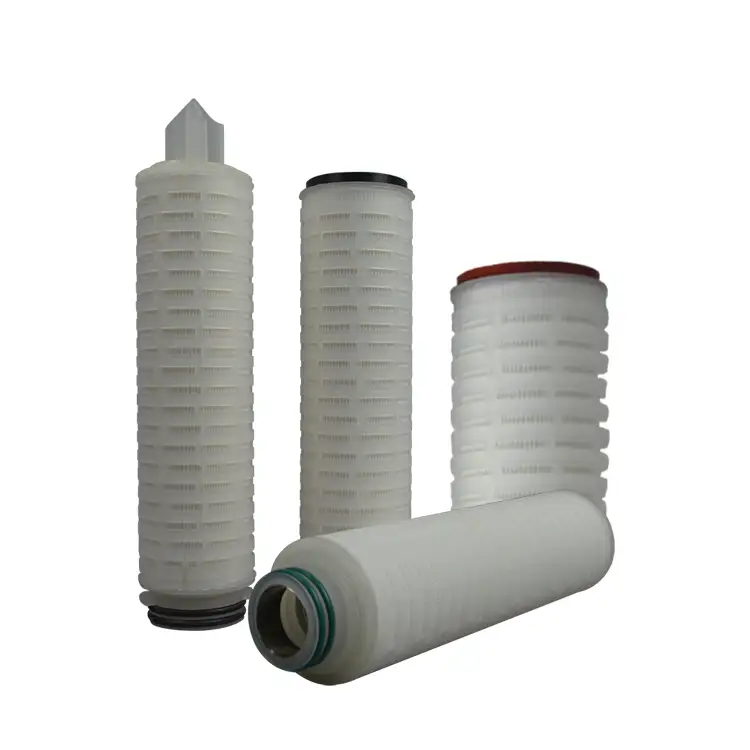

    Natural Hydrophobic PTFE air vent filters Cartridge for Air/Gas



    The filtration media of Polytetrafluoroethylene cartridge is hydrophobic PTFE membrane.
    Polyflo cartridgee bears excellent operation features, and its safety and thermal control specifications conform to the requirements of USP of the USA. Each polyflo cartridge has passed 100% integrity testing of bubble point and expanison flow so as to ensure to reach the bacterial retention requirements of USA HIME.

    Specification
    Filter Media Option
    PP filter cartridge
    PTFE filter cartridge
    Nylon 6 filter cartridge
    PES filter cartridge
    PVDF filter cartridge
    Length
    5, 10, 20, 30, 40
    5, 10, 20, 30, 40
    5, 10, 20, 30, 40
    5, 10, 20, 30, 40
    5, 10, 20, 30, 40"
    Micron Rate
    0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron
    0.2, 0.45 micron
    0.2, 0.45, 0.65, 1 micron
    0.1, 0.2, 0.45, 0.65 micron
    0.2, 0.45 micron
    End Cap
    DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
    DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
    DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
    DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
    DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
    Inner Diameter
    28mm
    28mm
    28mm
    28mm
    28mm
    Outer Diameter
    68mm (can be customized)
    68mm (can be customized)
    68mm (can be customized)
    68mm (can be customized)
    68mm (can be customized)
    Jumbo Size
    ID: 30mm, OD: 110~115mm
    ID: 30mm, OD: 110~115mm
    ID: 30mm, OD: 110~115mm
    ID: 30mm, OD: 110~115mm
    ID: 30mm, OD: 110~115mm
    Gasket/O ring material
    Silicon/EPDM/NBR/Viton/Teflon
    Silicon/EPDM/NBR/Viton/Teflon
    Silicon/EPDM/NBR/Viton/Teflon
    Silicon/EPDM/NBR/Viton/Teflon
    Silicon/EPDM/NBR/Viton/Teflon
    Effective filtration area
    0.4-0.7m²
    ≥0.72m²
    ≥0.6m²
    ≥5m²
    ≥0.72m²
    Max.working pressure difference
    0.42Mpa at 25℃
    0.42Mpa at 25℃
    0.42Mpa at 25℃
    0.42Mpa at 25℃
    0.42Mpa at 25℃
    Max.back pressure
    0.28Mpa at 60℃
    0.35Mpa at 60℃
    0.35Mpa at 25℃
    0.21Mpa at 25℃
    0.21Mpa at 25℃
    Max. working temperature
    88℃ at 0.28Mpa, 60℃ at 0.42Mpa
    142℃ at 0.276Mpa
    49℃ at 0.21Mpa
    140℃ at 0.28Mpa
    80℃ at 0.173Mpa
    Sterilizing temperature
    121℃, 30mins
    121℃, 30mins
    121℃, 30mins
    121℃, 30mins
    121℃, 30mins
    Main Features:

    1. Inherently hydrophobic more resistant to water intrision than commonly used PVDF membrane.
    2. Withstand shocks, back pressures and repeated sterilizations.
    3. 100% bacterial retention and effective filtration to 0.02um pastical (in gas).

    4. constructed of two materials PTFE and PP to meet high standards of pharmaceutical industry.


    Hydrophobic 40inch Air PTFE Vent Filter 222 Fin PTFE Water Filter 2
