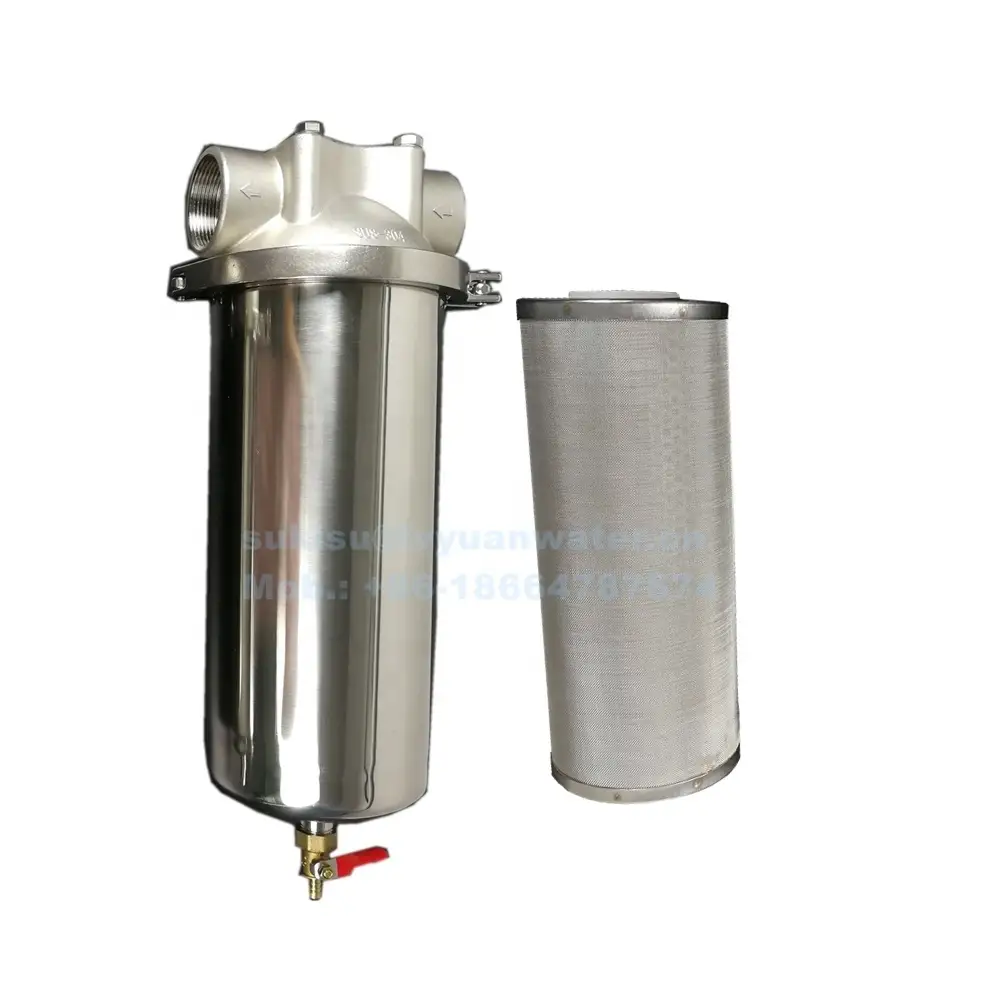

Industrial oil filter liquid filter SUS 10/20/30/40 inch 304 316L stainless steel water treatment filter housing

Industrial oil filter liquid filter SUS 10/20/30/40 inch 304 316L stainless steel water treatment filter housing

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Condition:
New
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Online support
Local Service Location:
none
Showroom Location:
none
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
Engine
Place of Origin:
Guangdong, China
Brand Name:
Customized
Material:
Customized
Weight:
Customized
Size:
Customized
Power:
0
Warranty:
1 Year
After-sales Service Provided:
Online support
Item Name:
304 316L stainless steel water treatment filter housing
Housing Material:
SS304/SS316L
Filter cartridge length:
10" 20" 30" 40"
Cartridge filters quantity:
Single core
Surface treatment:
Polished & Sandblast
Seal o-ring:
Silastic/NBR/EPDM/Viton
Top cap installed type:
Clamp type
Connector type:
222/226/DOE
Inlet & Outlet type:
Internal thread
Packaging method:
Export standard box

Packaging & Delivery

Selling Units:
Single item
Single package size:
35X18X25 cm
Single gross weight:
3.000 kg
Package Type:
Industrial liquid filter SUS 10/20/30/40 inch 304 316L stainless steel water treatment filter housing with oil filter: Packaging: Export standard box/As required
Lead Time :
Quantity(Pieces) 1 - 10 11 - 100 >100
Est. Time(days) 5 10 To be negotiated
Product Description

Industrial liquid filter SUS 10/20/30/40 inch 304 316L stainless steel water treatment filter housing with oil filter

LVYUAN  stainless steel cartridge filter housing offers wide range of flow capacities & contaminant holding capacities.

Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing,

filter cartridges,tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge& choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.

Model No.
Drain
Vent
In & Out
Body diameter
Thickness
LY-FL-SC-L1
1/4"
1/4"
1/2"  3/4"  1"
89mm
1mm-2mm
LY-FL-SC-L2
1/4"
1/4"
1/2" 3/4" 1"
89mm
1mm-2mm
LY-FL-SC-L3
1/4"
1/4"
1/2" 3/4" 1"
89mm
1mm-2mm
LY-FL-SC-L4
1/4"
1/4"
1/2" 3/4" 1"
89mm
1mm-2mm

Features:

1.Inlet & outlet size is 1/2", 3/4". 1" for easy installation.

2. Working pressure 8kg/0.8Mpa, 10kg/1Mpa is supported.

3. Use the tap water pressure to provide power, no power consumption.

4. Wall-mounted, counter-top, very simple installation.

5. It is suitable for using in the water mater switch, for the pre filtration system and RO system protection.

6. Resistance to strong acid and alkali.

7. Low cost, it fits different kind of filter elements.

Structure:

Housing material 304 or 316L stainless steel, the housing body through inside and outside polishing, it meets the sanitary grade.

Inside with the silicone gasket, it can be applied to cold & hot water temperature.

High pressure resistance, corrosion resistance.

Detailed Images
Application

1. Widely used in UF, RO, EDI security filtration and the end-filtration.

2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.

3. Electonics, semiconductor industry with high purity water preliminary filter, teminal filter.

4. Oil field, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.

5. Drinking pure water, mineral water, fruit juice, tea, beverages, health drinks.

6. Liquid, wine, beer, yellow wine and ther friut wine filtration, pure draft beer aseptic filtration.

7. The life and procution waste water treatment and water recycling process of pre-treatment filtering or security filtering.

8. Biological engineering, oil refining, printing and dyeing, testile industry water supply and waste water treatment, research and test filter, etc.

BOTTLED WATER

BEVERAGE & DRINKS

BIOLOGY TECHNOLOGY

RO WATER TREATMENT

CHEMICAL INDUSTRY

POWER PLANT
