ink filtration 5 micron polypropylene membrane pleated cartridge filter 1

ink filtration 5 micron polypropylene membrane pleated cartridge filter 2

ink filtration 5 micron polypropylene membrane pleated cartridge filter 3

ink filtration 5 micron polypropylene membrane pleated cartridge filter 4

ink filtration 5 micron polypropylene membrane pleated cartridge filter 5

ink filtration 5 micron polypropylene membrane pleated cartridge filter 6

ink filtration 5 micron polypropylene membrane pleated cartridge filter

Inquiry

Write a Review

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Guangzhou lvyuan

Model Number:: LY-PP

filter membrane:: Polypropylene pp membrane

up/dowm support:: Polypropylene

Support frame and end cap:: Polypropylene

O ring material:: silicone,EPDM,NBR,viton,teflon

Micron Rate:: 0.1 - 60 micron

Length:: 10",20",30",40"

ourter diameter:: 69mm

end cap:: doe,222/fin,222/flat,226/fin,226/flat

sealed type:: sweating soldering

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month

Introduction

Polypropylene filter is a kind of fixed aperture depth filter cartridge with the filter media of fine polypropylene fiber, the filter media comply with the FDA requirements. Filter micron rate range is from 0.1um to 60um. With the features of low pressure drop, high flow rate and long service life, polypropylene filter is the best choice as the pre filtration. The complete polypropylene structure has stable performance and wide chemical compatibility.

Specifications and Parameters

Filter media	polypropylene filter membrane
Length	10",20",30",40"
Diameter	69mm
micron rating (µm)	0.10,2,0.45,0.65,1,2,3,5,10,20,30,60
end cap	doe,222/fin,222/flat,226/fin,226/flat
seal material	silicone,EPDM,NBR,viton,teflon
sealed type	sweating soldering
effective filtration area	0.4~0.7m2 /10"
max. working temperature	80°C, 0.28Mpa
Max positive pressure difference	Δp0.42Mpa at 25°C
Max negative pressure difference	Δp0.28Mpa at 25°C
sterilizing temperature	121 °C, 30min

we still have filter media of PVDF/PTFE/PES/Nylon filter membrane~

Structure

Application

Pharmaceutical industry: medicine liquid, cell debris, biological products filtration.
Chemical industry: Organic solvents, chemical reagents, ink, plating solution filtration.
Food industry: Drinking water, mineral water, soft drinks, beer, red wine, fruit wine filtration.
Electronics industry: pre filtration of reverse osmosis water system, deionized water system.
Air filtration: compressed air,N2,CO2 filtration.
Other industry: Photoresist, magnetic media filtration.

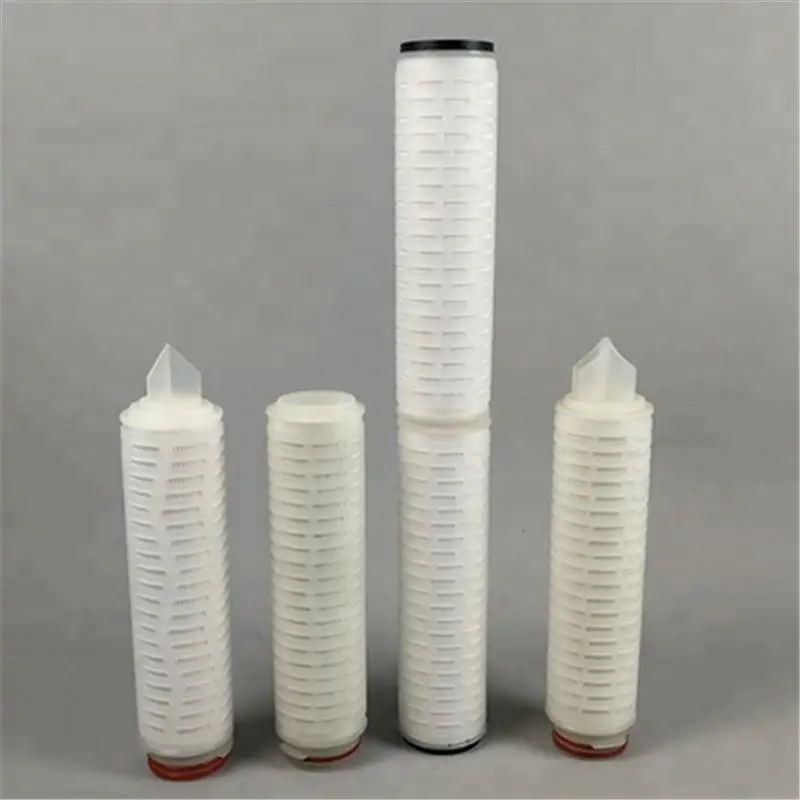

Pictures for polypropylene filter

Package

10 inch: 50PCS/CTN 400*400*685mm

20 inch: 25PCS/CTN 400*400*685mm

30 inch: 25PCS/CTN 835*435*425mm

40 inch: 25PCS/CTN 1100*395*400mm

End cap / Interface
