Product Information
Customer Reviews

Overview

Quick Details

Condition:: New

Applicable Industries:: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

After Warranty Service:: Online support

Local Service Location:: none

Showroom Location:: none

Place of Origin:: Guangdong, China

Brand Name:: Lvyuan / OEM

Material:: as request, PP / Cotton / glass fiber

Weight:: depends

Size:: standard, customization

Power:: 0

Warranty:: Unavailable

Product name:: String Wound Sediment Filter

Micron Rate:: 1, 3, 5, 10 micron filters cartridge

Inner core:: PP or stainless steel

Length:: 5", 10", 20", 30", 40", 50'' inch

Flow rate:: 2-8gpm

Usage:: liquid filter, water filter parts

End caps:: DOE/222Fin/226Fin/222Flat/226Flat

Outer diameter:: 60~62mm, Jumbo 110~115mm

Certification:: CE SGS ISO

Supply Ability

Supply Ability:: 5000 Piece/Pieces per Day wound filter cartridge 5 micron

Product Description

Jumbo PP String Wound Sediment Water Filter Cartridge 5 Micron 10X4.5'' 20X4.5'' of Guangzhou Manufacturer

String wound filter cartridges or wound filter cartridge, spiral wound filter elements are made of Polypropylene / PP, absorbent/bleached cotton, or glass fiber wound yarn materials. Inner core materials PP, 304 stainless stee, and 316 stainless steel are available for option. It is decided by the application operation temperature and PH range.

PP string wound cartridge filter, cotton string wound cartridge filter and glass fiber cartridge filter can offer true dept filtration for high dirt holding capacity and extremely low media migration. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand higher PSID and severe operating conditions.

Wound yarn filter cartridges can work very effectively a variety of industrial processing, such as in Pre-RO water treatment, Food & Beverage, Chemical filter solution, waste water treatment, petrochemical process, Electronic & semiconductor etc.

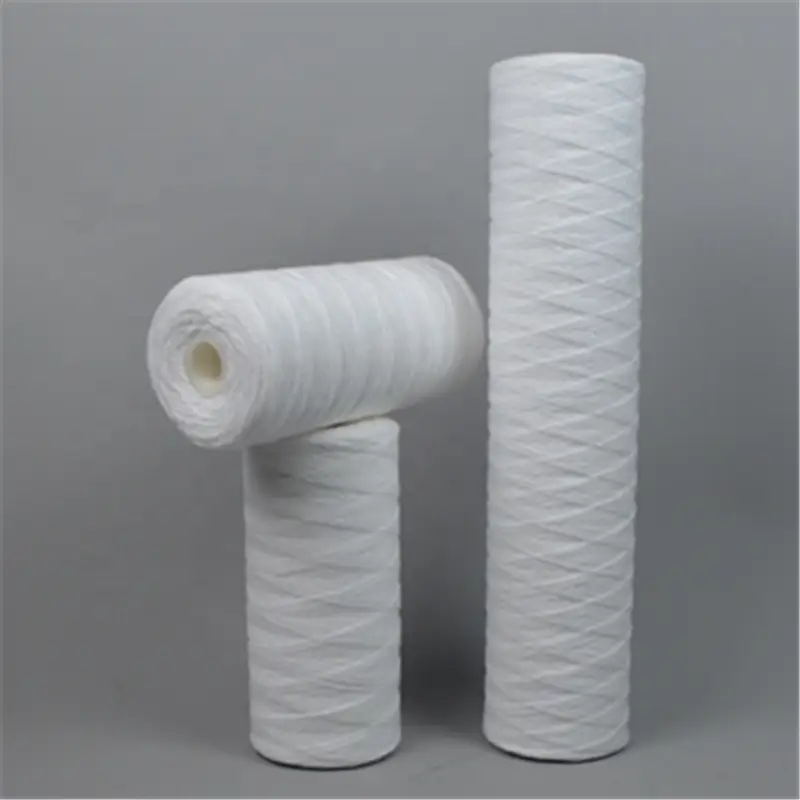

PP yarn wound filter cartridge with PP core

Cotton string wound filter cartridge with stainless steel core

Fiber glass string wound filter cartridge

OD 4.5'' Jumbo size BB PP wound cartridge, 10''x4.5'' and 20''x4.5''

Different end cap for option, code 0/3/6/7/8/9

Different dimension for option

Specification

Product	String wound filter cartridge
Material	Polypropylene, absorbent cotton, glass fiber
Precision filtration	1, 3, 5, 10, 20, 25, 30, 50, 75~100 micron
Outer diameter	60~62mm, Jumbo 110~115mm, or customized as request.
Inner diameter	28mm or 30mm
End cap Code	DOE=code 0, 222+Fin=code 7, 222+Flat=code 3, 226+Fin=code 8, 226+Flat=code 6, code 9=customized
Seal Material	EPDM, Silicone, Viton, NBR, Teflon
Length	5'', 10'', 20'', 30'', 40'', 50'', 60'', 70'' or as request
Core material	Polypropylene or stainless steel
Max differential pressure	4.5bar at 25°C
Replacment differential pressure	1-1.5 bar
Max operating temperature	PP with PP core:80 °C PP with stainless steel core: 100°C Absorbent cotton with SS core:180°C Glass fibre with SS core: 300°C

Application

1. Pre-RO water treatment, like drinking water, power, plating and oil industry.

2. Food and Beverage industry
3. Chemical, solvent, Pharmaceuticals and ink filter solution
4. Waste water treatment
5. Petrochemical process
6.Electronic & semiconductor etc.
