Overview

Quick Details

Condition:: New

Applicable Industries:: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

After Warranty Service:: Online support

Local Service Location:: none

Showroom Location:: none

Video outgoing-inspection:: Provided

Machinery Test Report:: Provided

Marketing Type:: Ordinary Product

Warranty of core components:: Not Available

Core Components:: Pressure vessel, stainless filter element

Place of Origin:: Guangdong, China

Brand Name:: Lvyuan / OEM

Material:: stainless steel

Weight:: it depends

Size:: it depends

Power:: 0

Warranty:: 1 Year

After-sales Service Provided:: Online support

Product name:: water filter micropore industrial

housing Materials:: ss304, 316, 316L

Cartridge filters quantity:: 1 - 160PCS for option

Filter cartridge length:: 5, 10, 20, 30, 40, 60 inch, OEM

Surface treatment::: Polished & Sandblast

Top cap installed type:: Lifting bolts/Flange/Clamp type

Usage:: water/liquid/wine treatment plant

Package:: Wooden case

Connector type:: code 0 3 6 7 8 9

Certification:: CE ISO SGS

Supply Ability

Supply Ability:: 500 Piece/Pieces per Day water filter micropore

Single round core filter housing cartridge holder Stainless Steel 0.2/0.5/1/5/20 Micron water filter micropore industrial

Product Description

Lvyuan Affordable ss cartridge filter housing factory for desalination 11

Stainless Steel 0.2/0.5/1/5/20 Micron water filter micropore industrial

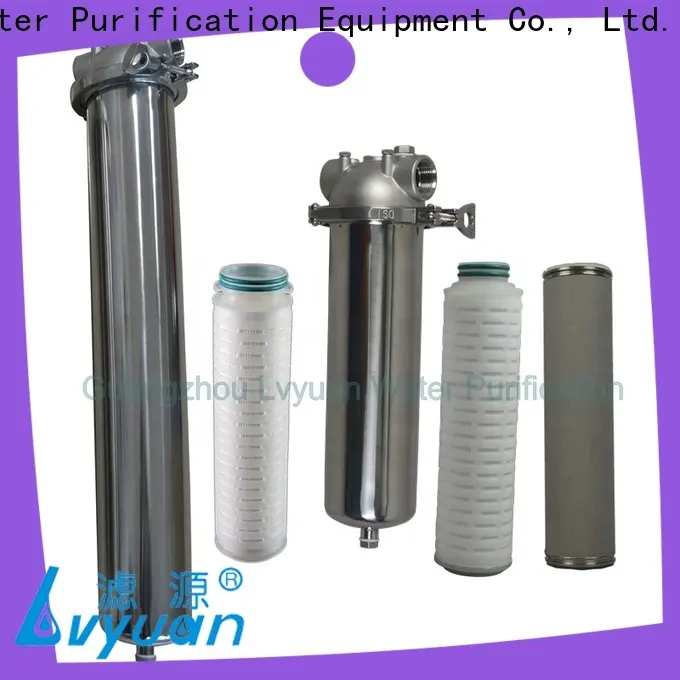

Stainless Steel Filter Housing made of SUS316L or SUS304, and take filter cartridge as its element. The stainless steel filter housing can be used for filtration of liquid, gas and 0.1um above particles and bacteria, with high removal rating and flow rate. It possess properties of lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance. In addition, it is easy to wash and function as back flush, and is ideal filtration equipment for the industry of biology and pharmacy, beer and beverage, textile, power plant, chemical, and water treatment etc.

Different stainless steel single and multi-cartridges filter housing can be customized, as long as you offer us picture and drawing.

Lvyuan Affordable ss cartridge filter housing factory for desalination 13

Product name	Stainless Steel cartridge filter housing	Material	SUS304, SUS316, SUS316L
Cartridge core	single or multi-cartridge	Cartridge length	2.5'', 5'', 10, 20 ,30 ,40, 50'' or OEM
Cartridge Quantity	1 ~ 160 pcs for option	Surface treatment	Polished or sandblast external
Cartridge end cap	226/222/215/DOE/Flat/Fin	Suitable filter cartridges	PP melt blown, Pleated filter, CTO activated carbon, Stainless steel mesh/pleated filter cartridges.
Top Cap installed type	lifting bolts, flange, tri clamp	inlet/outlet connection	clamp, thread, flange, pogoda
Seal O-ring	silicon,NBR, EPDM, Viton, PTFE	Usage	Liquid, gas filtration
Max working pressure	100, 150Psi, OEM	Wall thickness	1.2~6mm

Product Models

Lvyuan Affordable ss cartridge filter housing factory for desalination 15

Lvyuan Affordable ss cartridge filter housing factory for desalination 17

Lvyuan Affordable ss cartridge filter housing factory for desalination 19

Lvyuan Affordable ss cartridge filter housing factory for desalination 21

Lvyuan Affordable ss cartridge filter housing factory for desalination 23

Lvyuan Affordable ss cartridge filter housing factory for desalination 25

Lvyuan Affordable ss cartridge filter housing factory for desalination 27

Lvyuan Affordable ss cartridge filter housing factory for desalination 29

Lvyuan Affordable ss cartridge filter housing factory for desalination 31

Applications

1. Industrial water treatment
2. Food & Beverage: bottled water, beers, wines, flavors, polishing, clarification
3. Chemicals & Petrochemicals: Solvents, solutions, chemical filtration, acids, bases
4. Health Care & Pharmaceuticals: Membrane filtration, ophthalmic, oral medicines, serum
5. Industrial processes: clean water, removal of carbon
6. Paints & Coatings: paints, coatings
7. Electronics: High purity water, photo resists
8. Cosmetics: Alcohols, creams, lotions, essential oils, mouthwashes

Products Show

Lvyuan Affordable ss cartridge filter housing factory for desalination 33

Lvyuan Affordable ss cartridge filter housing factory for desalination 35

Our Company

Factory

Our Factory

Workshop

Our Workshop

Lvyuan Affordable ss cartridge filter housing factory for desalination 41

Warehouse

Our Warehouse

Lvyuan Affordable ss cartridge filter housing factory for desalination 43

Team

Our Team

Our Certifications

Lvyuan Affordable ss cartridge filter housing factory for desalination 45

Contact

Lvyuan Affordable ss cartridge filter housing factory for desalination 47

Despite the richness of its functionalities, the product is very easy to use for people. They can easily understand how to operate once they have a look at the instructions. Its filter medium is customizable according to the different water quality in the application. The product contributes a lot in employee costs. Its needs fewer workers to support its operation, which will lead to financial savings. Its filter medium is customizable according to the different water quality in the application.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
