Lvyuan Best pleated water filters replace for sea water

Inquiry

Overview
Quick Details
Condition:
New
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Online support
Local Service Location:
none
Showroom Location:
none
Place of Origin:
Guangdong, China
Brand Name:
Lvyuan / OEM
Material:
Pleated
Weight:
0
Size:
10"/20"/30"/40"50"/60"
Power:
0
Warranty:
Unavailable
Name:
Filter membrane material:
PP/PVDF/PTFE/PES/Nylon
Length:
5 / 10 / 20 / 30 / 40 / 50 / 60 inch
Conector:
Fin/222/226/215/DOE/Thread
Micron:
0.22/0.5/1/3/5/10/25/50/75/100/150
Sealing method:
Hot melting welding
Diameter:
70mm/OEM
Inner Core:
PP/SS/OEM
MOQ:
Currently no limited

Wholesale price 5 inch pp pleated cartridge filter

Product Description
Lvyuan Best pleated water filters replace for sea water 5

Product Name
10 inch SOE 222 1 micron PP/Polypropylene pleated sediment water filters for wine liquid filtration
Filtration media
PP/PTFE/PES/PVDF/Nylon
Support material
Polypropylene
Core & Structural components
Polypropylene
Inner core
PP/Stainless steel
Packing method
Polybag/Vacuum
Filtration precision
0.1μm, 0.2μm, 0.45μm,  0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm
Length
2.5", 5". 10", 20", 30", 40", 50", 60", OEM
Adaptor
215/222/226/Fin/Flat/Thread/OEM
Sealing method
Hot melting welding
Sealing gasket & O-ring material
Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber.
Effect filtration area
≥0.6m²
Filter cartridge diameter
69mm
Max. working temperature
PP: 88℃,0.27Mpa;PTFE: 80℃, 0.173Mpa;PES: 85℃, 0.28Mpa
PVDF: 80℃, 0.173Mpa;Nylon: 49℃, 0.21Mpa
Max. positive differential pressure
0.42Mpa (25℃)
Max. back pressure differential pressure
0.28Mpa (25℃)
Sterilization conditions
121℃ 30min
Applications
Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;

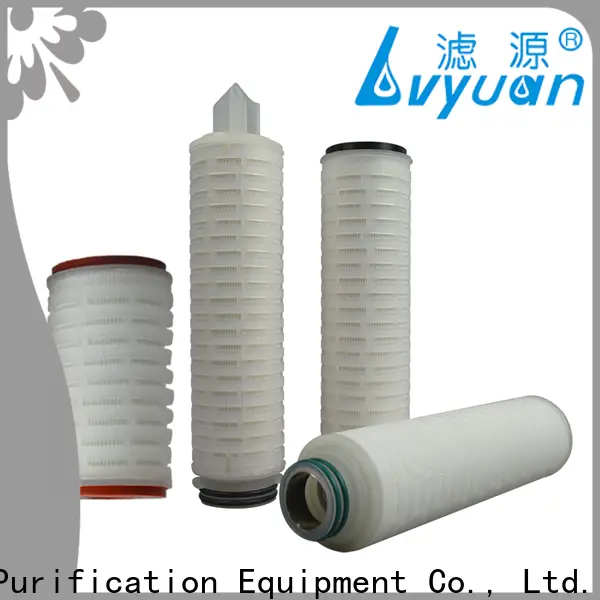

Polypropylene microporous membrane filter

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.

Lvyuan Best pleated water filters replace for sea water 7
Lvyuan Best pleated water filters replace for sea water 9

PTFE membrane pleated filter

Hydrophobic PTFE filter

The filter medium is Hydrophobic PTFE microporous membrane filter: Strong hydrophobicity,
High holding rate, excellent chemical resistance and thermal stability, good strength, impact resistance of the forward & reverse pressure.


Hydrophilic PTFE filter

The filter element medium for hydrphilic PTFE microporous membrane filter: The hydrophilic stability, high entrapment rate, excellent chemical resistance thermal stability, good strength, impact resistance of the forward & reverse pressure.

Polyether Sulphone PES Pleated Filter

The PES pleated filter cartridge is constructed of imported polyethersulfone(PES) membrane media and non-woven support materials.The material of cage core and end caps are polypropylene.Adapters are thermally welded with media without using any glue, no any pollution. The PES filter cartridge is ideally suited for critical prefiltration in sterilizing applications and final filtration in a broad range of demanding non-sterile application, the inherently hydrophilic membrane contains no surfactant or wetting agents, which results in good filtration and flow rates.

Lvyuan Best pleated water filters replace for sea water 11
Lvyuan Best pleated water filters replace for sea water 13

Nylon N66 pleated membrane filter cartridge

The filter medium is hydrophilic nylon microporous membrane filter, It is composed by nylon membrane and the polypropylene support material hot melting, it is no dung, also applicable for the strict chemical and pharmaceutical industries.

PVDF pleated cartridge filter

The PVDF pleated cartridge filter is constructed of imported natural hydrophobic polyvinylenedifluoride(PVDF) membrane media and non-woven support materials. The adaptors are thermally welded with media without using any glue, no any pollution.

High filtration microns, high flow rate, better hydrophobicity, sterilization at high temperature as well as chemical resistance. It is widely used in gas or liquid pre-filtration and widely used in final filtration.

Lvyuan Best pleated water filters replace for sea water 15
Lvyuan Best pleated water filters replace for sea water 17

Jumbo pleated membrane filter cartridge

The big jumbo pleated filter cartridge is constructed of deep polypropylene membrane, melt blown polypropylene, hydrophilic PES & PTFE. The non-woven support materials. This filter cartridges design increased the effective filtration area, not only can reduct the filter cartridges quantity, but also it can make the smaller housing size. Big flow rate and long service life, lower cost and human cost. The size is divided into 2 kinds of size: 83mm diameter & 131mm diameter. Adaptors are thermally welded with media without using any glue, no any pollution and droppings. Clean & stable, each filter cartridge has passed strict testing by 100% integrity.

Detailed Images
Lvyuan Best pleated water filters replace for sea water 19

DOE opened pleated filter

The membrane's micron rating is optional. Options to order for this site include 0.03 to 0.45 microns in 10" to 40" length with either.

Lvyuan Best pleated water filters replace for sea water 21

OEM customized size filter

Different length & variety end cap are optional.

Lvyuan Best pleated water filters replace for sea water 23

Different end caps pleated filter

SDouble Open End (DOE), 222 or 226 end configurations, all come standard with EPDM/PTFE/SILICONE/TEFLON seals.

Application
Lvyuan Best pleated water filters replace for sea water 25

RO WATER TREATMENT

Lvyuan Best pleated water filters replace for sea water 27

BOTTLED MINERAL WATER

Lvyuan Best pleated water filters replace for sea water 29

CHEMICAL TECHNOLOGY  FILTRATION

Lvyuan Best pleated water filters replace for sea water 31

BEER & BEVERAGE FILTRATION

Lvyuan Best pleated water filters replace for sea water 33

PETROCHMICAL INDUSTRY

Lvyuan Best pleated water filters replace for sea water 35

SEA DESALINATION WATER EQUIPMENT

Packing & Delivery
Lvyuan Best pleated water filters replace for sea water 37
Lvyuan Best pleated water filters replace for sea water 39
Lvyuan Best pleated water filters replace for sea water 41

Container for shipment

Lvyuan Best pleated water filters replace for sea water 43

Container for shipment

Certifications
Lvyuan Best pleated water filters replace for sea water 45
Lvyuan Best pleated water filters replace for sea water 47
Lvyuan Best pleated water filters replace for sea water 49
Our Company
Lvyuan Best pleated water filters replace for sea water 51
Lvyuan Best pleated water filters replace for sea water 53
You can be totally assured of our quality of water filter cartridges which passes all relative tests. It is suitable to use with aqueous and organic solvent samples due to its broad chemical compatibility. Competent with strong R&D abilities, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. will always aspire to launch new competitive water filter cartridges. It is suitable to use with aqueous and organic solvent samples due to its broad chemical compatibility.
