Lvyuan block sintered carbon water filter manufacturer for industry
1. Quality materials, skilled distillers and great attention to detail are the essential elements of sintered carbon water filter . The filter media is thermally bonded to prevent fiber release while providing consistent flow rates
2. The price of this product is competitive and is widely used by people in all fields. It is suitable to use with aqueous and organic solvent samples due to its broad chemical compatibility
3. The product features the desired safety. It won't pose any electrical hazards that would cause shock, fire, or explosion and is not inclined to occur electric leakage problems. It is designed with graded pores to help trap contaminants throughout the entire cross section for improved efficiency
4. This product has excellent impact resistance. Its high compressibility and rebound resilience allow it to work under high-pressure mechanical movement. It is available in a wide selection of micron ratings from 1 to 100 μm
5. The product has effective sealing. The adhesion of sealants and the compression of gaskets are finely handled with to ensure the leakage resistance. It will trap larger particles in the outer layers and capture smaller particles in the deep layer

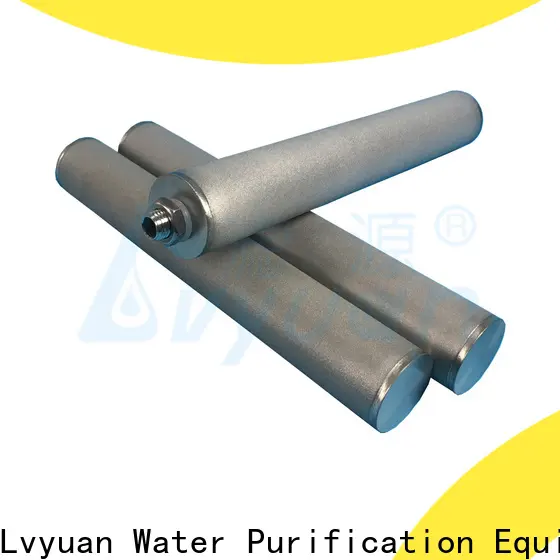

The stainless powder sintered filter is made by molding of stainless powder through high temperature sintering, also it adopts unique technology and strictly control production technique(include power grain distribution, molding and sintering).
The filter is characterized by high machinery strength, high conditions can be adjusted so as to produce the porous metal sintered filter with a wider precision scope. High-temperature resistance and Good air permeability.
Excellent machinery strength, applicable to the high temperature, high pressure and strong corrosivity.
◆◆ Main application cases
1. Filtration and recovery of catalyst.
2. Hot gas filtration in petrochemical industry
3. Purification of high temperature flue gas of metallurgy industry
4. Dust recovery of solid emulated bed and gas
5. Dust and end gas purification of thermal power and nuclear electric power generation.
Product Feature
◪ High-porosity and good air permeability, no media migration.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ High temperature resistance，Especially applicable to the hot gas filtration
◪ Various micron ratings available from 1 μm to 200 μm nominal.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ Made entirely of SS316 or SS316L, cleanable and reusable
◪ Customized dimension are welcome.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø60, 65, 70, 80 mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 0.2-200 μm, etc |
| Operation Temperature | ≥ -270ºC, ≤500ºC |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0 bar |
Product Details
Product Applications
Company Features
1. By the accumulation of multiple experienced technical methods, Lvyuan has its own ways of producing high quality sintered carbon water filter .
2. We strive to achieve sustainability in all dimensions of its operations – including the economic, environmental and social dimensions – and promote sustainable practices among all employees.
