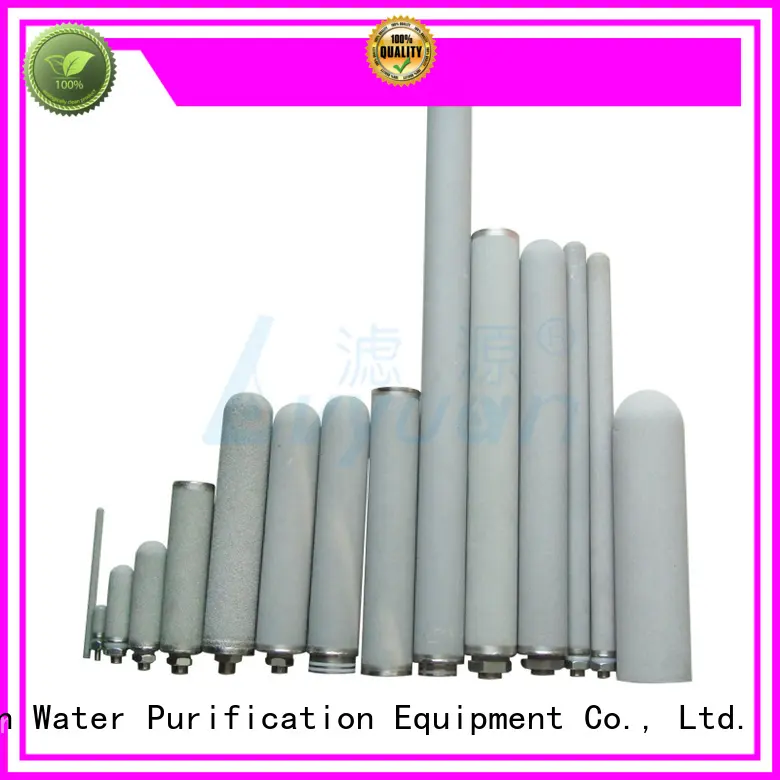

Lvyuan block sintered filter cartridge filtration 1
Lvyuan block sintered filter cartridge filtration 2
Lvyuan block sintered filter cartridge filtration 3
Lvyuan block sintered filter cartridge filtration 4
Lvyuan block sintered filter cartridge filtration 5
Lvyuan block sintered filter cartridge filtration 6
Lvyuan block sintered filter cartridge filtration 7
Lvyuan block sintered filter cartridge filtration 8
Lvyuan block sintered filter cartridge filtration 9
Lvyuan block sintered filter cartridge filtration 10
Lvyuan block sintered filter cartridge filtration 1
Lvyuan block sintered filter cartridge filtration 2
Lvyuan block sintered filter cartridge filtration 3
Lvyuan block sintered filter cartridge filtration 4
Lvyuan block sintered filter cartridge filtration 5
Lvyuan block sintered filter cartridge filtration 6
Lvyuan block sintered filter cartridge filtration 7
Lvyuan block sintered filter cartridge filtration 8
Lvyuan block sintered filter cartridge filtration 9
Lvyuan block sintered filter cartridge filtration 10

Lvyuan block sintered filter cartridge filtration

Start Port:
Guangzhou
Place of Origin:
Guangdong, China
Payment:
T/T, Alibaba Trade Assurance, paypal
MOQ:
10pcs
Model:
LY-TIC
Delivery Time:
In 7 to 15 working days
Certification:
SGS, ISO 9001
Brand:
LVYUAN
Inquiry
Product Details
Lvyuan Water Purification Equipment pays great attention to details of filter housing manufacturer.Lvyuan Water Purification Equipment 's water filter cartridges have reasonable structure, novel design, and reliable quality. With a small noise, they are easy to operate and are stable during the operation. filter housing manufacturer, manufactured based on high-quality materials and advanced technology, has reasonable structure, excellent performance, stable quality, and long-lasting durability. It is a reliable product which is widely recognized in the market.
  • Lvyuan block sintered filter cartridge filtration 11
Company Advantages
1. The colors of sintered filter cartridge is highly pure.
2. A distinctive sintered stainless steel filter elements plays an important role in the high performance of sintered filter cartridge .
3. For the development of Lvyuan, delicate sintered filter cartridge are only allowed in the company.
4. Lvyuan boasts for its high quality sintered filter cartridge .
Lvyuan block sintered filter cartridge filtration 12
Sintered Titanium water filter cartridge is based on pure titanium powder (99.7% or higher) as the main raw material, made through high temperature sintering process. The uniform structure, small pore density is high, the filtration resistance, good permeability. Also it has the high filtration precision, acid & alkali corrosion, high temperature resistant characteristic. It can be used for solid liquid, gas separation and purification. The service performance is excellent, but the suction filter and press-filter, it will not form secondary pollution, simple operation, it can be on-line regeneration, easy to clean, and long service life.


  Product Feature

  • ◪    Uniform structure, narrow pore size distribution, and high separation efficiency;

  • ◪   High porosity, the resistance of filtration less, and the penetration efficiency is high;

  • ◪   High temperature resistant, it can be normally used below in 280 degree;

  • ◪   Good chemical stability, acid & alkali corrosion resistance, and oxidation resistance;

  • ◪   No particles fall off, it will not make the concentrate form secondary pollution, it conforms to be food hygiene and pharmaceutical GMP requirements;

  • ◪   Good mechanical performance, it can have the suction filtration and press-filtration, simple operation;

  • ◪   Low differential pressure, the area of cover is small, and large water flow rate;od mechanical performance, it can have the suction filtration and press-filtration, simple operation;

  • ◪   Strong antimicrobial ability, no microbes.

  • ◪   The finished-products technology is good, the overlength of overall length can be reached to 1000mm.

  • ◪   It can be on-line regeneration, easy to clean, and long service life.


Product Parameter



Fiter Cartridge dimensions
Length5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm
DiameterØ22, 30, 50, 60, 70, 80, 100, 120mm
Other dimensionsCustomized by customer’s request.
Material of constructions
Filter mediaTitanium
Connector typeFlat, Insert type, Thread type, Fin
End capsDOE, 215, 222, 226, M20, M30, M42 or as request.
Sealing materialSilicone, NBR, EPDM, Fluoro rubber, etc
Performance
Removal rate0.1, 0.45, 1, 3, 5, 10,20, 30, 40, 50, 100um
Porosity28-50%
Temperature Tolerance≦300℃ wet
Permeability0.02-20L/cm2 min Pa
Maximum Operating Pressure differential6.0bar
Flow rate (L/H)180, 200, 250, 280, 300, 350, 500, 800, 1000, 1500, 1600


◆◆Pure water flow rate reference table: the initial value of 10'' sintered titanium cartridge (P=0.2 MPa, 1cP, 25℃)

Micron rate (μm)0.20.451235102030
Flow rate (L/H)1802002502803003505008001000



Product Details



Lvyuan block sintered filter cartridge filtration 13

part.1
Various end caps. End caps can be customized as request.
Lvyuan block sintered filter cartridge filtration 14

part.2
Various dimensions. Dimension can be customized as request.
Lvyuan block sintered filter cartridge filtration 15

part.3
Wall thickness can be tailor made as request, 1mm, 2mm, 3mm, etc.



Product Applications



Lvyuan block sintered filter cartridge filtration 16
Pharmaceutical industry


Lvyuan block sintered filter cartridge filtration 17
Chemical industry
Lvyuan block sintered filter cartridge filtration 18
Electronic industry
Lvyuan block sintered filter cartridge filtration 19
Water treatment industry
Lvyuan block sintered filter cartridge filtration 20
Food and beverage industry
Lvyuan block sintered filter cartridge filtration 21
Oil refining industry
