Lvyuan block sintered metal filters suppliers supplier for industry

Start Port:
Guangzhou
Production Capacity:
400 units/Month
Place of Origin:
Guangdong, China
Payment:
T/T, Alibaba Trade Assurance, paypal
MOQ:
10pcs
Model:
LY-TIC
Delivery Time:
In 7 to 15 working days
Certification:
SGS, ISO 9001
Brand:
OEM/Lvyuan
Inquiry
Company Advantages
1. Different from common material, material for sintered metal filters suppliers gains the absolute advantage in characteristics of sintered steel filter . The star-shaped ring seal makes the filter element easy to disassemble and maintain
2. This product has been improved by our personnel who have thorough knowledge and experience in their related field. It comes with a wide range of lengths for standard and full-flow housings
3. A feasible and flexible sintered metal filters suppliers design has been a prominent characteristic of this product. It is suitable to use with aqueous and organic solvent samples due to its broad chemical compatibility
4. Compared with the other sintered metal filters suppliers , sintered steel filter introduced by Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has more advantages. It can also filter particulates, microbial organisms, ferric oxide, and other impurities
5. sintered metal filters suppliers deserve popularization for its sintered steel filter . All its elements are made with FDA compliant material for food and beverage contact
Lvyuan block sintered metal filters suppliers supplier for industry 11

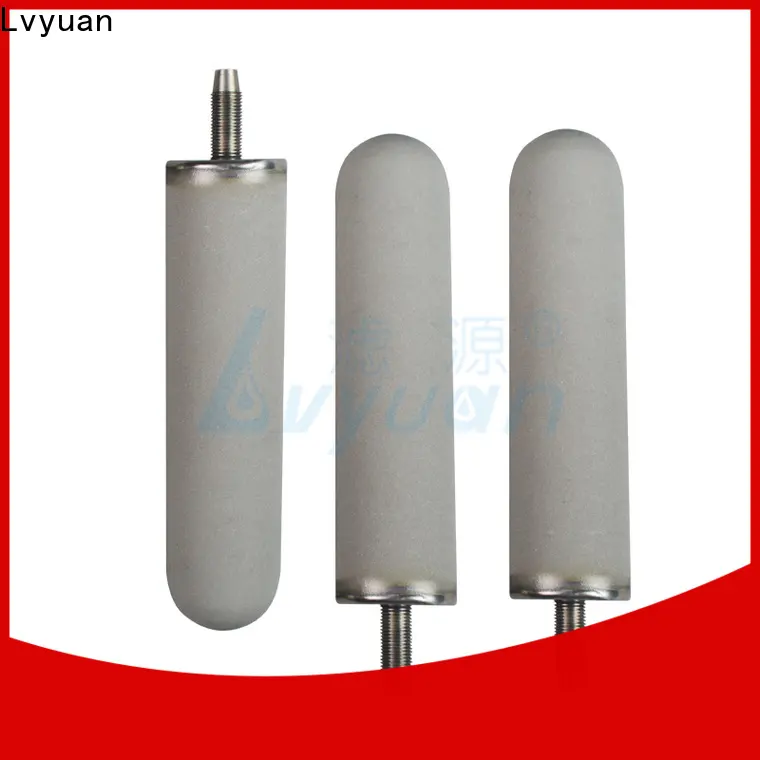

Sintered Titanium water filter cartridge is based on pure titanium powder (99.7% or higher) as the main raw material, made through high temperature sintering process. The uniform structure, small pore density is high, the filtration resistance, good permeability. Also it has the high filtration precision, acid & alkali corrosion, high temperature resistant characteristic. It can be used for solid liquid, gas separation and purification. The service performance is excellent, but the suction filter and press-filter, it will not form secondary pollution, simple operation, it can be on-line regeneration, easy to clean, and long service life.


  Product Feature

  • ◪   Uniform structure, narrow pore size distribution, and high separation efficiency.

  • ◪   High porosity, the resistance of filtration less, and the penetration efficiency is high.

  • ◪   High temperature resistant, it can be normally used below in 280 degree.

  • ◪   Good chemical stability, acid & alkali corrosion resistance, and oxidation resistance.

  • ◪   No particles fall off, it will not make the concentrate form secondary pollution, it conforms to be food hygiene and pharmaceutical GMP requirements.

  • ◪   Good mechanical performance, it can have the suction filtration and press-filtration, simple operation.

  • ◪   Low differential pressure, the area of cover is small, and large water flow rate;od mechanical performance, it can have the suction filtration and press-filtration, simple operation.

  • ◪   Strong antimicrobial ability, no microbes.

  • ◪   The finished-products technology is good, the overlength of overall length can be reached to 1000mm.

  • ◪   It can be on-line regeneration, easy to clean, and long service life.


Product Parameter



Fiter Cartridge dimensions
Length5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm)
DiameterØ22, 30, 50, 60, 70, 80, 100, 120mm
Other dimensionsCustomized by customer’s request.
Material of constructions
Filter mediaTitanium
Connector typeFlat, Insert type, Thread type, Fin
End capsDOE, 215, 222, 226, M20, M30, M42 or as request.
Sealing materialSilicone, NBR, EPDM, Fluoro rubber, etc
Performance
Removal rate0.1, 0.45, 1, 3, 5, 10,20, 30, 40, 50, 100um
Porosity28-50%
Temperature Tolerance≦ 300℃ wet
Permeability0.02-20L/cm2 min Pa
Maximum Operating Pressure differential6.0 bar
Flow rate (L/H)180, 200, 250, 280, 300, 350, 500, 800, 1000, 1500, 1600


◆◆Pure water flow rate reference table: the initial value of 10'' sintered titanium cartridge (P=0.2 MPa, 1cP, 25℃)

Micron rate (μm)0.20.451235102030
Flow rate (L/H)1802002502803003505008001000



Product Details



Lvyuan block sintered metal filters suppliers supplier for industry 12

part.1
Various end caps. End caps can be customized as request.
Lvyuan block sintered metal filters suppliers supplier for industry 13

part.2
Various dimensions. Dimension can be customized as request.
Lvyuan block sintered metal filters suppliers supplier for industry 14

part.3
Wall thickness can be tailor made as request, 1mm, 2mm, 3mm, etc.



Product Applications



Lvyuan block sintered metal filters suppliers supplier for industry 15
Pharmaceutical industry


Lvyuan block sintered metal filters suppliers supplier for industry 16
Chemical industry
Lvyuan block sintered metal filters suppliers supplier for industry 17
Electronic industry
Lvyuan block sintered metal filters suppliers supplier for industry 18
Water treatment industry
Lvyuan block sintered metal filters suppliers supplier for industry 19
Food and beverage industry
Lvyuan block sintered metal filters suppliers supplier for industry 20
Oil refining industry

Company Features
1. Depending on years of experience and expertise, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is highly competent in designing and manufacturing quality sintered steel filter .
2. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has a strong technical foundation.
3. In order to meet customers' satisfactions, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has built a complete service system to solve all possible problems. Get more info!
