Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

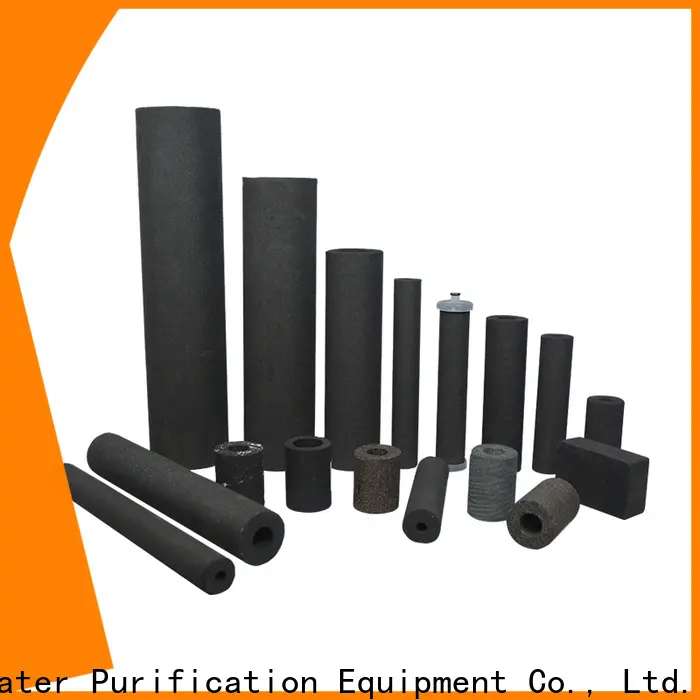

Lvyuan block sintered plastic filter manufacturer for food and beverage
1. Lvyuan sintered metal filter cartridge is manufactured with the support of a full range of equipment. All its elements are made with FDA compliant material for food and beverage contact
2. The product effectively serves various application purposes. It has increased dirt holding capacity and longer life
3. The product is reliable with consistent performance. It will trap larger particles in the outer layers and capture smaller particles in the deep layer
4. The main functions of sintered plastic filter include in sintered metal filter cartridge . It has a large effective filter area
Product Feature
◪ Large filtration area, strong absorption capacity, high flow rate.
◪ High dirt holding capacity, low drop out, high filtration efficiency.
◪ Fits to all standard filter housings or sport bottles.
◪ High iodine value activated carbon materials
◪ Effectively remove bad smells, colors, chlorinated compounds, VOCS and THMS;
◪ Long service life
Product Parameter
| Fiter Cartridge dimensions | |
| Outer diameter | 14, 16, 19, 25, 28, 30, 35, 38, 40, 45, 46, 50, 53, 55, 60, 63, 64, 67, 70, 76, 90, 96.5, 103, 105, 121mm |
| Inner diameter | 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 28, 30, 32, 35, 38, 40, 45, 50mm |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | Coconut shell carbon, coal carbon |
| Enc caps | Polypropylene |
| Netting | Polypropylene |
| Gasket/oring material | Silicone, EPDM, NBR, Viton |
| Performance | |
| Removal rate | 5, 10, 25 um |
| Maximum Operating Temperature | ≦ 80℃ |
| Maximum Operating Pressure | 10 bar |
| Maximum differential pressure | 7 bar at 25℃ |
Product Details
Product Applications
Company Features
1. Equipped with advanced facilities, our factory reaches a high level of annual output.
2. Professional sales will be arranged to follow up emails for customers in Guangzhou Lvyuan Water Purification Equipment Co., Ltd.. Check it!
