Company Advantages
1. The manufacture of Lvyuan sediment filter cartridge is the application of various basic mechanical parts. They include gears, bearings, fasteners, springs, seals, couplings, and so forth. The self-supporting fiber matrix enables a coreless design that is both economical and strong
2. Lvyuan Water Purification Equipment can meet the market demand with the highest efficiency. There is different porosity across the depth of its filter medium
3. Manufactured in our own technologically-advanced facility, the product is quality-assured. The filter media is thermally bonded to prevent fiber release while providing consistent flow rates

Overview

Quick Details

Place of Origin:: China

Brand Name:: Lvyuan/OEM

Model Number:: LY-PLF-01

Power (W):: 0

Voltage (V):: 0

After-sales Service Provided:: none

Warranty:: none

Type:: Reverse Osmosis

Certification:: GS

Use:: Household Pre-Filtration

Application:: Car, RV, Outdoor, Hotel, Garage, Commercial, Household

Power Source:: Manual

Name:: pp water filter element

Filter membrane material:: PP/PVDF/PTFE/PES/Nylon

Length:: 5 / 10 / 20 / 30 / 40 / 50 / 60 inch

Conector:: Fin/222/226/215/DOE/Thread

Micron:: 0.22/0.5/1/3/5/10/25/50/75/100/150

Sealing method:: Hot melting welding

Diameter:: 70mm/OEM

Inner Core:: PP/SS/OEM

MOQ:: Currently no limited

Supply Ability

Supply Ability:: 5000 Piece/Pieces per Week

Factory price 5 micron 10 micron pp water filter element for RO system

Product Description

Lvyuan Efficient activated carbon filter element factory for water 4

Product Name	Water treatment plant RO pleated filter 5 microns PP cartridge water filter with 10 20 30 40 inch length
Filtration media	PP/PTFE/PES/PVDF/Nylon
Support material	Polypropylene
Core & Structural components	Polypropylene
Inner core	PP/Stainless steel
Packing method	Polybag/Vacuum
Filtration precision	0.1μm, 0.2μm, 0.45μm, 0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm
Length	2.5", 5". 10", 20", 30", 40", 50", 60", OEM
Adaptor	215/222/226/Fin/Flat/Thread/OEM
Sealing method	Hot melting welding
Sealing gasket & O-ring material	Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber.
Effect filtration area	≥0.6m²
Filter cartridge diameter	69mm
Max. working temperature	PP: 88℃,0.27Mpa； PTFE: 80℃, 0.173Mpa ；PES: 85℃, 0.28Mpa PVDF: 80℃, 0.173Mpa；Nylon: 49℃, 0.21Mpa
Max. positive differential pressure	0.42Mpa (25℃)
Max. back pressure differential pressure	0.28Mpa (25℃)
Sterilization conditions	121℃ 30min
Applications	Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;

Lvyuan Efficient activated carbon filter element factory for water 6

PP melt blown water filter cartridge

Polypropylene melt blown filter cartridge or PP spun water filter, PP filter, PP filter cartridge is the most widely used filtration consumable products in domestic and industrial water treatment systems.

PP melt blown filter cartridges (PPF) are made of 100% pure polypropylene fiber, providing broad wide chemical compatibility.
Melt Blown sediment filter cartridge has strong pollutants holding capacity.

Polypropylene microporous membrane filter

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.

Lvyuan Efficient activated carbon filter element factory for water 8

Detailed Images

Lvyuan Efficient activated carbon filter element factory for water 10

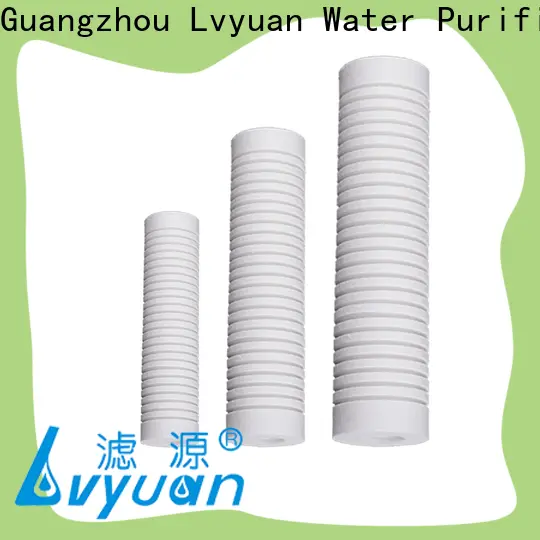

Groove surface PP sediment filter cartridges.

Lvyuan Efficient activated carbon filter element factory for water 12

Flat surface PP sediment filter cartridge

Lvyuan Efficient activated carbon filter element factory for water 14

215 222 226 Flat/Fin end cap PP filter, code 0 3 6 7 8 9 available.

Lvyuan Efficient activated carbon filter element factory for water 16

DOE opened pleated filter

Lvyuan Efficient activated carbon filter element factory for water 18

OEM customized size filter

Lvyuan Efficient activated carbon filter element factory for water 20

Different end caps pleated filter

Lvyuan Efficient activated carbon filter element factory for water 22

PP melt blown filter cartridge with 1 2 3 layers for option

Lvyuan Efficient activated carbon filter element factory for water 24

PP shell Polypropylene melt blown filter cartridge

Lvyuan Efficient activated carbon filter element factory for water 26

Customize PP core or stainless steel shell/core pp filter cartridge

Lvyuan Efficient activated carbon filter element factory for water 28

Application

Lvyuan Efficient activated carbon filter element factory for water 30

RO WATER TREATMENT

Lvyuan Efficient activated carbon filter element factory for water 32

BOTTLED MINERAL WATER

Lvyuan Efficient activated carbon filter element factory for water 34

CHEMICAL TECHNOLOGY FILTRATION

Lvyuan Efficient activated carbon filter element factory for water 36

BEER & BEVERAGE FILTRATION

Lvyuan Efficient activated carbon filter element factory for water 38

PETROCHMICAL INDUSTRY

Lvyuan Efficient activated carbon filter element factory for water 40

SEA DESALINATION WATER EQUIPMENT

Packing & Delivery

Lvyuan Efficient activated carbon filter element factory for water 42

Lvyuan Efficient activated carbon filter element factory for water 44

Lvyuan Efficient activated carbon filter element factory for water 46

Container for shipment

Lvyuan Efficient activated carbon filter element factory for water 48

Container for shipment

Certifications

Lvyuan Efficient activated carbon filter element factory for water 50

Lvyuan Efficient activated carbon filter element factory for water 52

Lvyuan Efficient activated carbon filter element factory for water 54

Our Company

Lvyuan Efficient activated carbon filter element factory for water 56

Lvyuan Efficient activated carbon filter element factory for water 58

Let's Make Custom Water Filter Cartridge For You Now.

Our supplied service including cartridge filter manufacturer and cartridge filter manufacturer is offered by our professional service team. It does not secrete dissoluble material during operation. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. will provide the most appropriate plan and solutions of water filter cartridges for customers. It does not secrete dissoluble material during operation.

Company Features
1. As a leading activated carbon filter element manufacturer in China, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. highly values the importance of the quality.
2. The production process of filter cartridge adopts intelligent technology for precise control.
3. It is thought that Lvyuan will developed into a global number one sediment filter cartridge brand. Get more info!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
