Lvyuan filter cartridge replacement for industry1
hydrophobic PTFE(Polytetrafluoroethylene) membrane and non-woven support materials. Adapters are thermally welded without the uses of glues or adhesives to prevent any possibility of pollution. These economical PTFE membrane cartridge filters provide superior hydrophobicity as compared to polypropylene filters commonly used in compressed air applications, making it ideally suited for utility as well as tank vent applications, without the higher costs of the typical PTFE filter.
Product Feature
◪ Excellent hydrophobic performance, the water erosion is more resistant than the common PVDF membrane.
◪ Withstand water shock, back pressure and repeated high temperature sterilization.
◪ 100% bacterial retention & effective filtration to 0.2 μm particle.
◪ 100% integrity tested.
◪ It is constructed of 2 kinds of hot welding materials(PTFE & PP), not any adhesives, clean & stable, meet the high standards of pharmaceutical industry.
Product Parameter

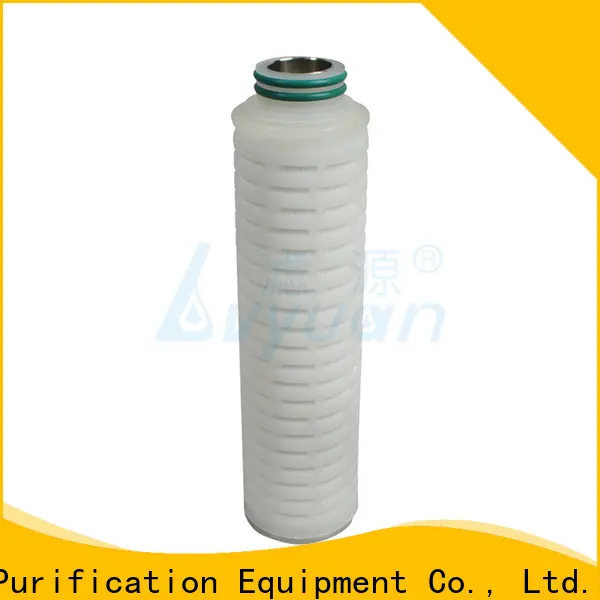

| Product Name | 10 inch PTFE membrane pleated filter cartridge with stainless steel 222 |
| Filter media | PTFE membrane |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/VITON/PTFE/NBR/TEFLON |
| Outer diameter | 2.7‘’(69mm) |
| Length | 9.75'', 10'', 20'', 30'', 40'', Customized |
| End cap | 215/222/226/FIN/DOE/SS |
| Filtration area | ≥0.72m² |
| Max.operating temperature | 80℃, 0.173Mpa |
| Micron rating(μm) | 0.2, 0.45 |
Product Details
Product Applications
Reverse osmosis water system prefiltration
