Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

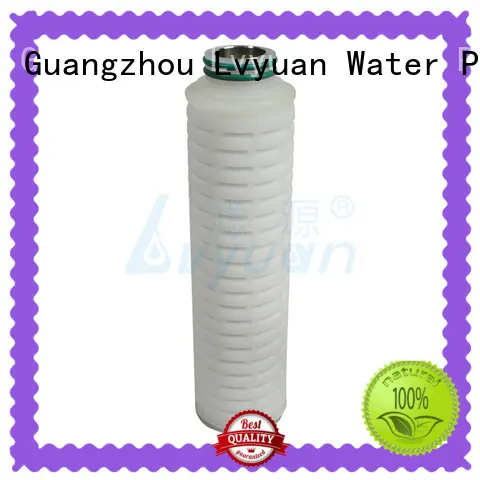

Lvyuan membrane pleated polyester filter cartridge for liquids sterile filtration
Start Port:
Guangzhou
Production Capacity:
500 units/Month
Place of Origin:
Guangdong, China
Payment:
T/T, Western Union, MoneyGram, Alibaba Trade Assurance, paypal
MOQ:
10pcs
Model:
LY-PL-PTFE
Delivery Time:
Within 7 working days
Certification:
SGS, ISO 9001
Brand:
LVYUAN
Application Scope
Lvyuan Water Purification Equipment 's cartridge filter manufacturer has been widely used in many industries.According to different needs of customers, Lvyuan Water Purification Equipment is capable of providing reasonable, comprehensive and optimal solutions for customers.
Enterprise Strength
- With the rapid development of the economy, customer service management no longer merely belongs to the core of service-oriented enterprises. It becomes the key point for all enterprises to be more competitive. In order to follow the trend of the times, Lvyuan Water Purification Equipment runs an outstanding customer service management system by learning advanced service idea and know-how. We promote customers from satisfaction to loyalty by insisting on providing quality services.
1. The manufacture of Lvyuan pleated filter cartridge adopts a professional grade, flexible projection screen material. This kind of material is engineered for performance.
2. The product is in compliance with international industry quality standards.
3. The product, with so many good characteristics, is adaptable to various applications.
PTFE membrane cartridge filter is constructed of imported natural
hydrophobic PTFE(Polytetrafluoroethylene) membrane and non-woven support materials. Adapters are thermally welded without the uses of glues or adhesives to prevent any possibility of pollution. These economical PTFE membrane cartridge filters provide superior hydrophobicity as compared to polypropylene filters commonly used in compressed air applications, making it ideally suited for utility as well as tank vent applications, without the higher costs of the typical PTFE filter.
hydrophobic PTFE(Polytetrafluoroethylene) membrane and non-woven support materials. Adapters are thermally welded without the uses of glues or adhesives to prevent any possibility of pollution. These economical PTFE membrane cartridge filters provide superior hydrophobicity as compared to polypropylene filters commonly used in compressed air applications, making it ideally suited for utility as well as tank vent applications, without the higher costs of the typical PTFE filter.
Product Feature
◪ Excellent hydrophobic performance, the water erosion is more resistant than the common PVDF membrane.
◪ Withstand water shock, back pressure and repeated high temperature sterilization.
◪ 100% bacterial retention & effective filtration to 0.2 μm particle.
◪ 100% integrity tested.
◪ It is constructed of 2 kinds of hot welding materials(PTFE & PP), not any adhesives, clean & stable, meet the high standards of pharmaceutical industry.
Product Parameter
| Product Name | 10 inch PTFE membrane pleated filter cartridge with stainless steel 222 |
| Filter media | PTFE membrane |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/VITON/PTFE/NBR/TEFLON |
| Outer diameter | 2.7‘’(69mm) |
| Length | 9.75'', 10'', 20'', 30'', 40'', Customized |
| End cap | 215/222/226/FIN/DOE/SS |
| Filtration area | ≥0.72m² |
| Max.operating temperature | 80℃, 0.173Mpa |
| Micron rating(μm) | 0.2, 0.45 |
Product Details
part.1
It is constructed of 2 kinds of hot welding materials(PTFE & PP), no any adhesives,
clean & stable.
part.2
DOE double opened PTFE membrane filter with PTFE gasket. It is a good choice for the pharmaceutical and ohter strict applications.
part.3
The adapters are thermally welded without the uses of glues or adhesives to prevent any possibility of pollution.
part.4
Different length & variety end cap are optional.
Product Applications
Reverse osmosis water system prefiltration
Electronic l industry
Filtration of mineral water
Filtration of organic solvent & ink
Filtration of pharmaceuticals
Filtration of biological
Company Features
1. Over the past years, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has been a renowned Chinese manufacturer integrating the development, production, and marketing of pleated polyester filter cartridge .
2. With some manufacturing already in China, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. could easily open a second distribution center aimed directly at overseas market.
3. Everyone at Lvyuan is responsible for creating success for customers! Please contact us! The commitment and expertise of our research and development team ensures that 企业名称 remains at the forefront of the industry. Please contact us! Our goal is to provide the first-class service, and our pursuit is to create the world's first pleated filter cartridge brand. Please contact us! Guangzhou Lvyuan Water Purification Equipment Co., Ltd. will continue to provide professional services to each customer. Please contact us!
