Product Comparison
cartridge housing manufacture, manufactured based on high-quality materials and advanced technology, has reasonable structure, excellent performance, stable quality, and long-lasting durability. It is a reliable product which is widely recognized in the market.After being improved greatly, Lvyuan Water Purification Equipment 's cartridge housing manufacture is more advantageous in the following aspects.
Company Advantages1. Lvyuan pleated type filter will be strictly inspected in regards to its appearance, dimension, and properties by the QC team. All these inspection parts are conducted in line with the hardware industry.
2. The product features a high CRI (color rendering index). It brings out the true colors of an object without appearing dinginess or inaccuracy.
3. Our quality for pleated water filter cartridge is deeply trusted by customers and you can be assured of it.

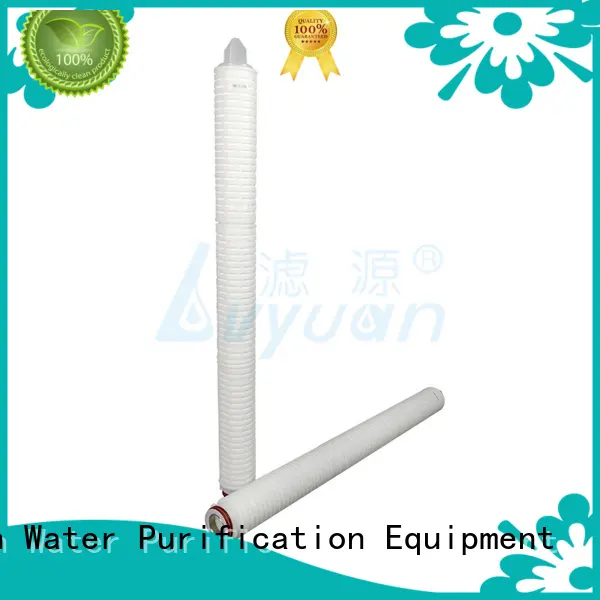

The N6 pleated filter cartridge is constructed of Nylon 6 media and non-woven support materials. Adapters are thermally welded with media without using any glue, not any pollution and droppings. Clean & stable, each filter cartridge has passed strict testing by 100% integrity. Strict production environment and best assures the security of filtration. The Nylon pleated filter cartridge or Nylon membrane pleated cartridge filter uses high purity grade of Nylon 66 membranes into non-woven polyester material media. Mostly for applications for the final stage filtration.
Product Feature
◪ High dirt-holding capacity and long service life.
◪ Nylon membrane is not necessary pre-wetting due to its hydrophilic.
◪ The pore diameter of evenly distributed, good filtration effect.
◪ Excellent chemical compatibility, Compatible with most of sanitary reagents, including up to 50% H2O2 and up to 1.6% bleach(800PPmNaClo).
◪ No fiber releasing, completely adhered to standards of the pharmaceutical industry.
Product Parameter
Product Name | 30 inch Nylon N66 membrane pleated filter element with 226 adaptor (LY-PL-N66) |
Filter media | Nylon(N66 ) |
Support | PP/Polypropylene |
Core/End cap | PP/Polypropylene |
Seal material | Silicone/EPDM/VITON/PTFE/NBR/TEFLON |
Outer diameter | 2.7'' (69mm) |
Length | 5'', 9.75'', 10'', 20'', 30'', 40'', Customized |
End cap | 215/222/226/FIN/DOE/SS |
Filtration area | ≥0.6m² |
Max.operating temperature | ≤ 49℃ |
Micron rating(μm) | 0.2, 0.45, 0.65, 1 |
Product Details
part.1
The membrane's micron rating is optional. Options to order for this site include 0.03 to 0.45 microns in 10" to 40" length with either.
part.2
Double Open End (DOE), 222 or 226 end configurations, all comes standard
with EPDM/PTFE/SILICONE/TEFLON seals.
part.3
Material of filter core and o-ring, number of membrane layer gives users more optional
part.4
All the parts of filter cartridges are high quality to meet the requirements of pharmacy.
Product Applications
RO water pre treatment in municipal tap water
Industry water, plating filtration
Sterile water and ultra pure water pre filtration
Chemical and solvent water
