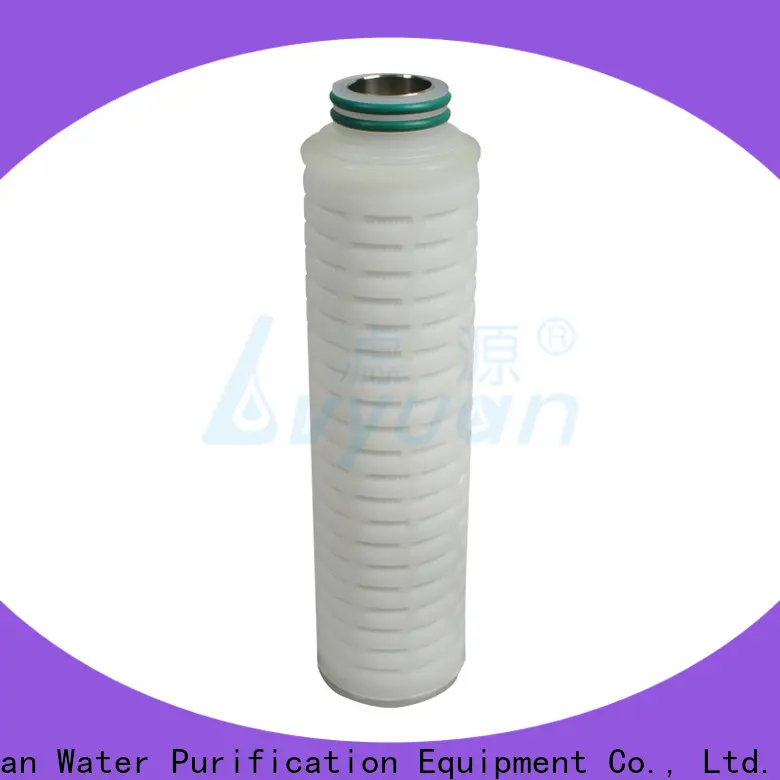

Lvyuan membrane pleated water filter cartridge with stainless steel for food and beverage

Start Port:
Guangzhou
Production Capacity:
500 units/Month
Place of Origin:
Guangdong, China
Payment:
T/T, Western Union, MoneyGram, Alibaba Trade Assurance, paypal
MOQ:
10pcs
Model:
LY-PL-PTFE
Delivery Time:
Within 7 working days
Certification:
SGS, ISO 9001
Brand:
LVYUAN
Inquiry

Lvyuan membrane pleated water filter cartridge with stainless steel for food and beverage 11
PTFE membrane cartridge filter is constructed of imported natural
hydrophobic PTFE(Polytetrafluoroethylene) membrane and non-woven support materials. Adapters are thermally welded without the uses of glues or adhesives to prevent any possibility of pollution. These economical PTFE membrane cartridge filters provide superior hydrophobicity as compared to polypropylene filters commonly used in compressed air applications, making it ideally suited for utility as well as tank vent applications, without the higher costs of the typical PTFE filter.


  Product Feature

  • ◪   Excellent hydrophobic performance, the water erosion is more resistant than the common PVDF membrane.

  • ◪   Withstand water shock, back pressure and repeated high temperature sterilization.

  • ◪   100% bacterial retention & effective filtration to 0.2 μm particle.

  • ◪   100% integrity tested.

  • ◪   It is constructed of 2 kinds of hot welding materials(PTFE & PP), not any adhesives, clean & stable, meet the high standards of pharmaceutical industry.


Product Parameter



Product Name10 inch PTFE membrane pleated filter cartridge with stainless steel 222
Filter mediaPTFE membrane
SupportPP/Polypropylene
Core/End capPP/Polypropylene
Seal materialSilicone/EPDM/VITON/PTFE/NBR/TEFLON
Outer diameter2.7‘’(69mm)
Length9.75'', 10'', 20'', 30'', 40'', Customized
End cap215/222/226/FIN/DOE/SS
Filtration area≥0.72m²
Max.operating temperature80℃, 0.173Mpa
Micron rating(μm)0.2, 0.45



Product Details



Lvyuan membrane pleated water filter cartridge with stainless steel for food and beverage 12

part.1
It is constructed of 2 kinds of hot welding materials(PTFE & PP), no any adhesives, clean & stable.
Lvyuan membrane pleated water filter cartridge with stainless steel for food and beverage 13

part.2
DOE double opened PTFE membrane filter with PTFE gasket. It is a good choice for the pharmaceutical and ohter strict applications.
Lvyuan membrane pleated water filter cartridge with stainless steel for food and beverage 14

part.3
The adapters are thermally welded without the uses of glues or adhesives to prevent any possibility of pollution.
Lvyuan membrane pleated water filter cartridge with stainless steel for food and beverage 15

part.4
Different length & variety end cap are optional.



Product Applications



Lvyuan membrane pleated water filter cartridge with stainless steel for food and beverage 16

Reverse osmosis water system prefiltration


Lvyuan membrane pleated water filter cartridge with stainless steel for food and beverage 17
Electronic l industry
Lvyuan membrane pleated water filter cartridge with stainless steel for food and beverage 18
Filtration of mineral water
Lvyuan membrane pleated water filter cartridge with stainless steel for food and beverage 19
Filtration of organic solvent & ink
Lvyuan membrane pleated water filter cartridge with stainless steel for food and beverage 20
Filtration of pharmaceuticals
Lvyuan membrane pleated water filter cartridge with stainless steel for food and beverage 21
Filtration of biological

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
