PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.
Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

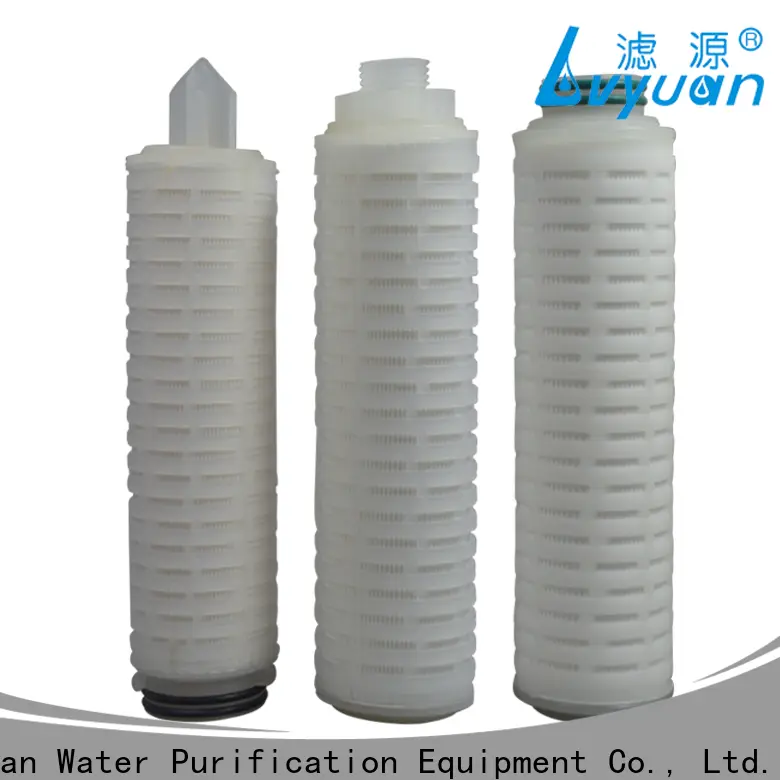

Lvyuan pleated filter cartridge replace for industry
Company Advantages
1. By virtue of its pleated filter element , pleated filter cartridge is often sold out in many areas. There is different porosity across the depth of its filter medium
2. The product plays an important role in improving production efficiency. It helps meet the most demanding production needs and achieve production goals. It contains no binders, agents, solvents, antistatic materials or wetting agents
3. Thanks to the advanced technology, our pleated filter cartridge can be controlled intelligently. Its filter medium is customizable according to the different water quality in the application
![Lvyuan pleated filter cartridge replace for industry 6]()
![Lvyuan pleated filter cartridge replace for industry 8]()
![Lvyuan pleated filter cartridge replace for industry 10]()
![Lvyuan pleated filter cartridge replace for industry 12]()
![Lvyuan pleated filter cartridge replace for industry 14]()
Nylon N66 pleated membrane filter cartridge
![Lvyuan pleated filter cartridge replace for industry 16]()
![Lvyuan pleated filter cartridge replace for industry 18]()
![Lvyuan pleated filter cartridge replace for industry 20]()
![Lvyuan pleated filter cartridge replace for industry 22]()
![Lvyuan pleated filter cartridge replace for industry 24]()
![Lvyuan pleated filter cartridge replace for industry 26]()
![Lvyuan pleated filter cartridge replace for industry 28]()
![Lvyuan pleated filter cartridge replace for industry 30]()
![Lvyuan pleated filter cartridge replace for industry 32]()
![Lvyuan pleated filter cartridge replace for industry 34]()
![Lvyuan pleated filter cartridge replace for industry 36]()
![Lvyuan pleated filter cartridge replace for industry 38]()
![Lvyuan pleated filter cartridge replace for industry 40]()
![Lvyuan pleated filter cartridge replace for industry 42]()
![Lvyuan pleated filter cartridge replace for industry 44]()
![Lvyuan pleated filter cartridge replace for industry 46]()
![Lvyuan pleated filter cartridge replace for industry 48]()
![Lvyuan pleated filter cartridge replace for industry 50]()
![Lvyuan pleated filter cartridge replace for industry 52]()
![Lvyuan pleated filter cartridge replace for industry 54]()
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has been engaged in the management of pleated filter element , including research & development, sales & marketing, fabrication, and logistics. We have brought together a team of professionals. They leverage their extensive knowledge of working in the manufacturing world to design and manufacture products.
2. We have many professional designers here. They always take into account customers' brand image and target markets when creating products. They can materialize customers' ideas into reality.
3. Our products are hot sale in Southern Asia, America, and Australia countries, and win a good reputation. We have provided product solutions to many international famous brands over these years. Continually improving the innovation concept will push Lvyuan forward more in the near future. Get info!
1. By virtue of its pleated filter element , pleated filter cartridge is often sold out in many areas. There is different porosity across the depth of its filter medium
2. The product plays an important role in improving production efficiency. It helps meet the most demanding production needs and achieve production goals. It contains no binders, agents, solvents, antistatic materials or wetting agents
3. Thanks to the advanced technology, our pleated filter cartridge can be controlled intelligently. Its filter medium is customizable according to the different water quality in the application
Chinese high quality 10 inch pes pleated filter cartridge
Product Description
Product Name | 10 inch SOE 222 1 micron PP/Polypropylene pleated sediment water filters for wine liquid filtration | ||||
Filtration media | PP/PTFE/PES/PVDF/Nylon | ||||
Support material | Polypropylene | ||||
Core & Structural components | Polypropylene | ||||
Inner core | PP/Stainless steel | ||||
Packing method | Polybag/Vacuum | ||||
Filtration precision | 0.1μm, 0.2μm, 0.45μm, 0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm | ||||
Length | 2.5", 5". 10", 20", 30", 40", 50", 60", OEM | ||||
Adaptor | 215/222/226/Fin/Flat/Thread/OEM | ||||
Sealing method | Hot melting welding | ||||
Sealing gasket & O-ring material | Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber. | ||||
Effect filtration area | ≥0.6m² | ||||
Filter cartridge diameter | 69mm | ||||
Max. working temperature | PP: 88℃,0.27Mpa；PTFE: 80℃, 0.173Mpa；PES: 85℃, 0.28Mpa PVDF: 80℃, 0.173Mpa；Nylon: 49℃, 0.21Mpa | ||||
Max. positive differential pressure | 0.42Mpa (25℃) | ||||
Max. back pressure differential pressure | 0.28Mpa (25℃) | ||||
Sterilization conditions | 121℃ 30min | ||||
Applications | Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration; | ||||
Polypropylene microporous membrane filter
PTFE membrane pleated filter
Hydrophobic PTFE filter
The filter medium is Hydrophobic PTFE microporous membrane filter: Strong hydrophobicity,
High holding rate, excellent chemical resistance and thermal stability, good strength, impact resistance of the forward & reverse pressure.
Hydrophilic PTFE filter
The filter element medium for hydrphilic PTFE microporous membrane filter: The hydrophilic stability, high entrapment rate, excellent chemical resistance thermal stability, good strength, impact resistance of the forward & reverse pressure.
Polyether Sulphone PES Pleated Filter
The PES pleated filter cartridge is constructed of imported polyethersulfone(PES) membrane media and non-woven support materials.The material of cage core and end caps are polypropylene.Adapters are thermally welded with media without using any glue, no any pollution. The PES filter cartridge is ideally suited for critical prefiltration in sterilizing applications and final filtration in a broad range of demanding non-sterile application, the inherently hydrophilic membrane contains no surfactant or wetting agents, which results in good filtration and flow rates.
Nylon N66 pleated membrane filter cartridge
The filter medium is hydrophilic nylon microporous membrane filter, It is composed by nylon membrane and the polypropylene support material hot melting, it is no dung, also applicable for the strict chemical and pharmaceutical industries.
PVDF pleated cartridge filter
The PVDF pleated cartridge filter is constructed of imported natural hydrophobic polyvinylenedifluoride(PVDF) membrane media and non-woven support materials. The adaptors are thermally welded with media without using any glue, no any pollution.
High filtration microns, high flow rate, better hydrophobicity, sterilization at high temperature as well as chemical resistance. It is widely used in gas or liquid pre-filtration and widely used in final filtration.
Jumbo pleated membrane filter cartridge
The big jumbo pleated filter cartridge is constructed of deep polypropylene membrane, melt blown polypropylene, hydrophilic PES & PTFE. The non-woven support materials. This filter cartridges design increased the effective filtration area, not only can reduct the filter cartridges quantity, but also it can make the smaller housing size. Big flow rate and long service life, lower cost and human cost. The size is divided into 2 kinds of size: 83mm diameter & 131mm diameter. Adaptors are thermally welded with media without using any glue, no any pollution and droppings. Clean & stable, each filter cartridge has passed strict testing by 100% integrity.
Detailed Images
DOE opened pleated filter
The membrane's micron rating is optional. Options to order for this site include 0.03 to 0.45 microns in 10" to 40" length with either.
OEM customized size filter
Different length & variety end cap are optional.
Different end caps pleated filter
SDouble Open End (DOE), 222 or 226 end configurations, all come standard with EPDM/PTFE/SILICONE/TEFLON seals.
Application
RO WATER TREATMENT
BOTTLED MINERAL WATER
CHEMICAL TECHNOLOGY FILTRATION
BEER & BEVERAGE FILTRATION
PETROCHMICAL INDUSTRY
SEA DESALINATION WATER EQUIPMENT
Packing & Delivery
Container for shipment
Container for shipment
Certifications
Our Company
Our water filter cartridges is in great demand and we have on hand many enquiries from other countries. Customized end cap configurations are available to fit specific requirements
Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is full of vitality, energy and warrior spirit. Customized end cap configurations are available to fit specific requirements
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has been engaged in the management of pleated filter element , including research & development, sales & marketing, fabrication, and logistics. We have brought together a team of professionals. They leverage their extensive knowledge of working in the manufacturing world to design and manufacture products.
2. We have many professional designers here. They always take into account customers' brand image and target markets when creating products. They can materialize customers' ideas into reality.
3. Our products are hot sale in Southern Asia, America, and Australia countries, and win a good reputation. We have provided product solutions to many international famous brands over these years. Continually improving the innovation concept will push Lvyuan forward more in the near future. Get info!
