Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.


Lvyuan pleated filter cartridge with stainless steel for diagnostics 1
Lvyuan pleated filter cartridge with stainless steel for diagnostics 2
Lvyuan pleated filter cartridge with stainless steel for diagnostics 3
Lvyuan pleated filter cartridge with stainless steel for diagnostics 4
Lvyuan pleated filter cartridge with stainless steel for diagnostics 5
Lvyuan pleated filter cartridge with stainless steel for diagnostics 6
Lvyuan pleated filter cartridge with stainless steel for diagnostics 7
Lvyuan pleated filter cartridge with stainless steel for diagnostics 8
Lvyuan pleated filter cartridge with stainless steel for diagnostics 9
Lvyuan pleated filter cartridge with stainless steel for diagnostics 10
Lvyuan pleated filter cartridge with stainless steel for diagnostics 1
Lvyuan pleated filter cartridge with stainless steel for diagnostics 2
Lvyuan pleated filter cartridge with stainless steel for diagnostics 3
Lvyuan pleated filter cartridge with stainless steel for diagnostics 4
Lvyuan pleated filter cartridge with stainless steel for diagnostics 5
Lvyuan pleated filter cartridge with stainless steel for diagnostics 6
Lvyuan pleated filter cartridge with stainless steel for diagnostics 7
Lvyuan pleated filter cartridge with stainless steel for diagnostics 8
Lvyuan pleated filter cartridge with stainless steel for diagnostics 9
Lvyuan pleated filter cartridge with stainless steel for diagnostics 10

Lvyuan pleated filter cartridge with stainless steel for diagnostics

Start Port:
Guangzhou
Production Capacity:
500 units/Month
Place of Origin:
Guangdong ,China
Payment:
T/T, Alibaba Trade Assurance, paypal
MOQ:
10pcs
Model:
LY-PL-PP
Delivery Time:
Within 7 working days
Certification:
SGS, ISO 9001
Brand:
OEM/Lvyuan
Inquiry
Company Advantages
1. The raw materials used in Lvyuan high efficiency pleated filters will go through a range of inspections. The metal/timber or other materials have to be measured to ensure sizes, moisture, and strength that are mandatory for furniture manufacturing. With a large number of tapered fixing holes inside, it has a high dirt holding capacity
2. The product is antibacterial and makes it possible to realize the dream of a non-allergic sleep refuge without the feeling of a cold hospital. It offers excellent filtration and good thermal stability
3. The product features temperature stability. It is operational in extremely cold or hot conditions without being affected by the temperature variations. It has increased dirt holding capacity and longer life
4. The product features easy-to-change hardware locations. For example, scanners and wireless printers can be placed in the most optimal positions. The graded gradient design helps it to avoid rapid clogging
5. The product features high wear-resistance. When exposed to grinding, knocking or scratching, it will not easily damage the surface. It can also filter particulates, microbial organisms, ferric oxide, and other impurities
Lvyuan pleated filter cartridge with stainless steel for diagnostics 11

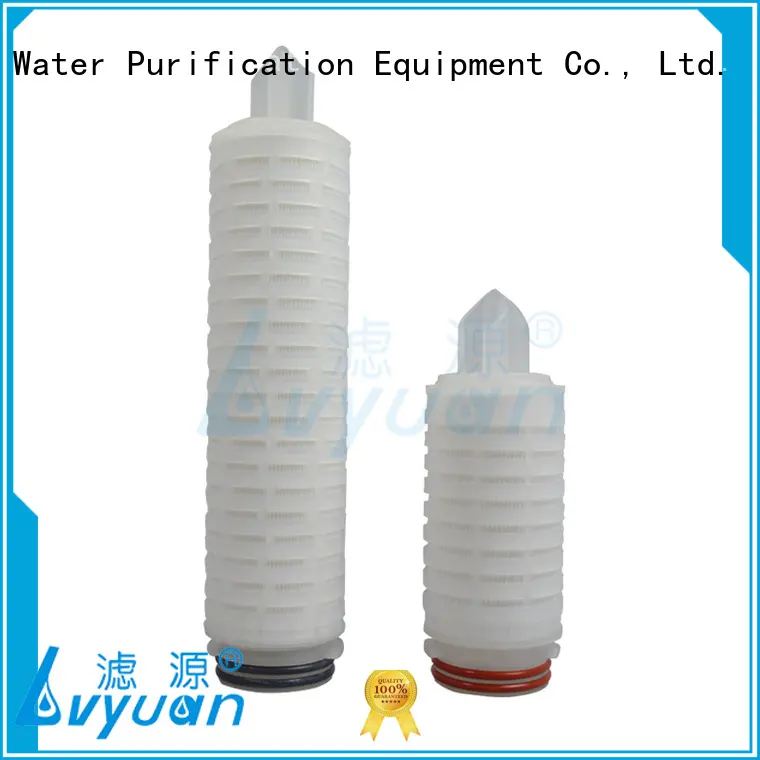

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications.

They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns.

The high surface area ensures long service life and low initial pressure drops. All cartridges hardware components are made from high purity polypropylene materials for use in critical process application. All the Cartridges are manufactured and assembled in a clean room environment to minimized the possibility of contamination.

This type of cartridges are available in a wide range of configurations to fit most commercially available filter housings.


  Product Feature

  • ◪    Excellent chemical compatibility. Suitable for filtering organic solvents, acid bases.

  • ◪   The multi layers PP membrane structure enables a graded filtration pore sizes and increases the dirt-holding capacity of the PP pleated water cartridge filters.

  • ◪   Large flow volume, low differential pressure and long service life.

  • ◪   Hydrophilic membrane with high flow.

  • ◪   Pleated design increased the filtration area for deep filtration.

  • ◪   Application of thermal-bonding technique, strong and no any pollution.

  • ◪   Full rage of removal microns ratings.

  • ◪   Graded pore density for high dirt holding capacity.

  • ◪   Common use in clean and sterilize with cabinet & steam with high pressure.


Product Parameter



Filter mediaPP/Polypropylene
SupportPP/Polypropylene
Core/End capPP/Polypropylene
Seal materialSilicone/EPDM/NBR/Viton/Teflon
Outer diameter2.7'' , customized
Length9.75'', 10'',  20'', 30'', 40'' customized
End capDOE, 215, 222, 226, FIN, FLAT, Stainless steel, or customized.
Filtration area0.4-0.7m² (10'')
Max.operating temperature88℃, 0.28Mpa. 60℃, 0.42Mpa.
Micron rating(μm)0.1, 0.2, 0.45, 0.65, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60



Product Details



Lvyuan pleated filter cartridge with stainless steel for diagnostics 12

part.1
Polypropylene end caps are thermally bonded to the media packs eliminating any need for adhesives which might react with or contaminate critical process fluids. Strong and no any pollution.
Lvyuan pleated filter cartridge with stainless steel for diagnostics 13

part.2
High efficiency 100% all polypropylene cartridges with hard polypropylene support inner core and outer core. We provide customized sizes to meet different customers’ required.
Lvyuan pleated filter cartridge with stainless steel for diagnostics 14

part.3
Different end caps to fits any filter housing and filtration industry, 100% all pure polypropylene pleated material without any organic binder.
Lvyuan pleated filter cartridge with stainless steel for diagnostics 15

part.4
DOE 20 inch PP material pleated filter cartridge with EPDM gasket, graded-porosity multi-layer.



Product Applications



Lvyuan pleated filter cartridge with stainless steel for diagnostics 16

Reverse osmosis water system prefiltration


Lvyuan pleated filter cartridge with stainless steel for diagnostics 17
Filtration of beverage
Lvyuan pleated filter cartridge with stainless steel for diagnostics 18
Filtration of mineral water
Lvyuan pleated filter cartridge with stainless steel for diagnostics 19
Filtration of organic solvent & ink
Lvyuan pleated filter cartridge with stainless steel for diagnostics 20
Filtration of pharmaceuticals
Lvyuan pleated filter cartridge with stainless steel for diagnostics 21
Filtration of biological

Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is an international company with rich experience in high efficiency pleated filters design. Our company attracts and sustains a sufficient number of customers. This attributes to our sincerity such as providing information before sales, conducting product design analysis and giving aftersales support.
2. We have experienced technical designers and manufacturing engineers. They can work with customers in optimizing product design, bringing the concept to an often under-budget realization.
3. Teams of experts are the strength of our company. They have knowledge not only in our own products and processes but also in those aspects of our customers. They are able to deliver the best for customers. We are committed to run business in a healthy and safe way. We conduct the corporation's activities centering on the clients, employees, and communities so as to ensure our sustainable development.
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
