Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

Lvyuan pp sediment filter replace for sea water 1

Lvyuan pp sediment filter replace for sea water 2

Lvyuan pp sediment filter replace for sea water 3

Lvyuan pp sediment filter replace for sea water

Inquiry

Company Advantages
1. The production of Lvyuan 5 micron sediment filter meets the building industry's critical standards and regulations including the latest safety science and environmental certifications. It is manufactured from 100% Polypropylene construction
2. The product is sell well around the world and wins the favorable comments. It can also filter particulates, microbial organisms, ferric oxide, and other impurities
3. Our professional technicians have a clear understanding of the quality standards of the industry, and they test the products under their vigilance. It has increased dirt holding capacity and longer life

Overview

Quick Details

Place of Origin:: China

Brand Name:: Lvyuan/OEM

Model Number:: LY-PLF-01

Power (W):: 0

Voltage (V):: 0

After-sales Service Provided:: none

Warranty:: none

Type:: Reverse Osmosis

Certification:: GS

Use:: Household Pre-Filtration

Application:: Car, RV, Outdoor, Hotel, Garage, Commercial, Household

Power Source:: Manual

Name:: cartridge-type filter element

Filter membrane material:: PP/PVDF/PTFE/PES/Nylon

Length:: 5 / 10 / 20 / 30 / 40 / 50 / 60 inch

Conector:: Fin/222/226/215/DOE/Thread

Micron:: 0.22/0.5/1/3/5/10/25/50/75/100/150

Sealing method:: Hot melting welding

Diameter:: 70mm/OEM

Inner Core:: PP/SS/OEM

MOQ:: Currently no limited

Supply Ability

Supply Ability:: 5000 Piece/Pieces per Week

Replaceable cartridge-type filter element 5 inches 10 inches for Kitchen and Bathroom

Product Description

Lvyuan pp sediment filter replace for sea water 4

Product Name	Water treatment plant RO pleated filter 5 microns PP cartridge water filter with 10 20 30 40 inch length
Filtration media	PP/PTFE/PES/PVDF/Nylon
Support material	Polypropylene
Core & Structural components	Polypropylene
Inner core	PP/Stainless steel
Packing method	Polybag/Vacuum
Filtration precision	0.1μm, 0.2μm, 0.45μm, 0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm
Length	2.5", 5". 10", 20", 30", 40", 50", 60", OEM
Adaptor	215/222/226/Fin/Flat/Thread/OEM
Sealing method	Hot melting welding
Sealing gasket & O-ring material	Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber.
Effect filtration area	≥0.6m²
Filter cartridge diameter	69mm
Max. working temperature	PP: 88℃,0.27Mpa； PTFE: 80℃, 0.173Mpa ；PES: 85℃, 0.28Mpa PVDF: 80℃, 0.173Mpa；Nylon: 49℃, 0.21Mpa
Max. positive differential pressure	0.42Mpa (25℃)
Max. back pressure differential pressure	0.28Mpa (25℃)
Sterilization conditions	121℃ 30min
Applications	Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;

Lvyuan pp sediment filter replace for sea water 6

PP melt blown water filter cartridge

Polypropylene melt blown filter cartridge or PP spun water filter, PP filter, PP filter cartridge is the most widely used filtration consumable products in domestic and industrial water treatment systems.

PP melt blown filter cartridges (PPF) are made of 100% pure polypropylene fiber, providing broad wide chemical compatibility.
Melt Blown sediment filter cartridge has strong pollutants holding capacity.

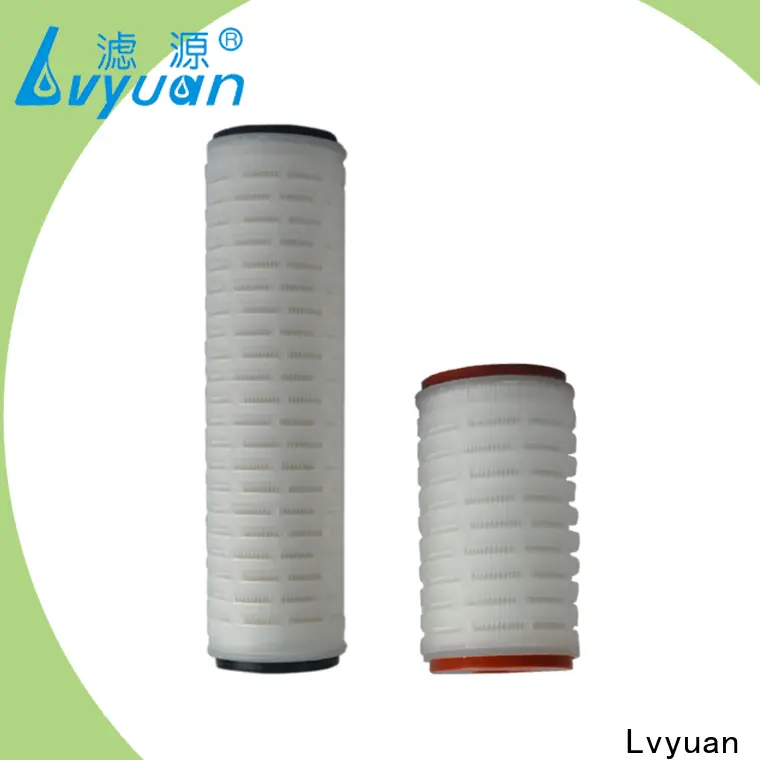

Polypropylene microporous membrane filter

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.

Lvyuan pp sediment filter replace for sea water 8

Detailed Images

Lvyuan pp sediment filter replace for sea water 10

Groove surface PP sediment filter cartridges.

Lvyuan pp sediment filter replace for sea water 12

Flat surface PP sediment filter cartridge

Lvyuan pp sediment filter replace for sea water 14

215 222 226 Flat/Fin end cap PP filter, code 0 3 6 7 8 9 available.

Lvyuan pp sediment filter replace for sea water 16

DOE opened pleated filter

Lvyuan pp sediment filter replace for sea water 18

OEM customized size filter

Lvyuan pp sediment filter replace for sea water 20

Different end caps pleated filter

Lvyuan pp sediment filter replace for sea water 22

PP melt blown filter cartridge with 1 2 3 layers for option

Lvyuan pp sediment filter replace for sea water 24

PP shell Polypropylene melt blown filter cartridge

Lvyuan pp sediment filter replace for sea water 26

Customize PP core or stainless steel shell/core pp filter cartridge

Application

Lvyuan pp sediment filter replace for sea water 28

RO WATER TREATMENT

Lvyuan pp sediment filter replace for sea water 30

BOTTLED MINERAL WATER

Lvyuan pp sediment filter replace for sea water 32

CHEMICAL TECHNOLOGY FILTRATION

Lvyuan pp sediment filter replace for sea water 34

BEER & BEVERAGE FILTRATION

Lvyuan pp sediment filter replace for sea water 36

PETROCHMICAL INDUSTRY

Lvyuan pp sediment filter replace for sea water 38

SEA DESALINATION WATER EQUIPMENT

Packing & Delivery

Lvyuan pp sediment filter replace for sea water 40

Lvyuan pp sediment filter replace for sea water 42

Lvyuan pp sediment filter replace for sea water 44

Container for shipment

Lvyuan pp sediment filter replace for sea water 46

Container for shipment

Certifications

Lvyuan pp sediment filter replace for sea water 48

Lvyuan pp sediment filter replace for sea water 50

Lvyuan pp sediment filter replace for sea water 52

Our Company

Lvyuan pp sediment filter replace for sea water 54

Lvyuan pp sediment filter replace for sea water 56

Let's Make Custom Water Filter Cartridge For You Now.

Guangzhou Lvyuan Water Purification Equipment Co., Ltd. takes pride in its fabulous water filter cartridges and lead the industry over the world. All its elements are made with FDA compliant material for food and beverage contact. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has realized the proceduralization of technical management in water filter cartridges field. All its elements are made with FDA compliant material for food and beverage contact.

Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd., known as a competent manufacturer, engages in the R&D, design, production, and sales of 5 micron sediment filter .
2. To be one of the most influential enterprise, Lvyuan has been doing its utmost to produce pp sediment filter with high quality.
3. We are now taking steps to advance our sustainability performance in a more impactful way. We exploit and innovate new sustainability opportunities, such as low carbon fuels, energy sources, and the circular economy.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.

5 10 micron 10 20 inch pp sediment filter cartridge/melt blown filter cartridge for water filtration

Whole sale PP sediment filter cartridge Melt brown filter

Good Price 5 micron spun polypropylene filter cartridge PP sediment filters

pp sediment filter cartridge with 1 micron pp yarn string wound filter cartridge

5 10 20 inch jumbo pp sediment filter transparent or blue filter housing for water treatment
