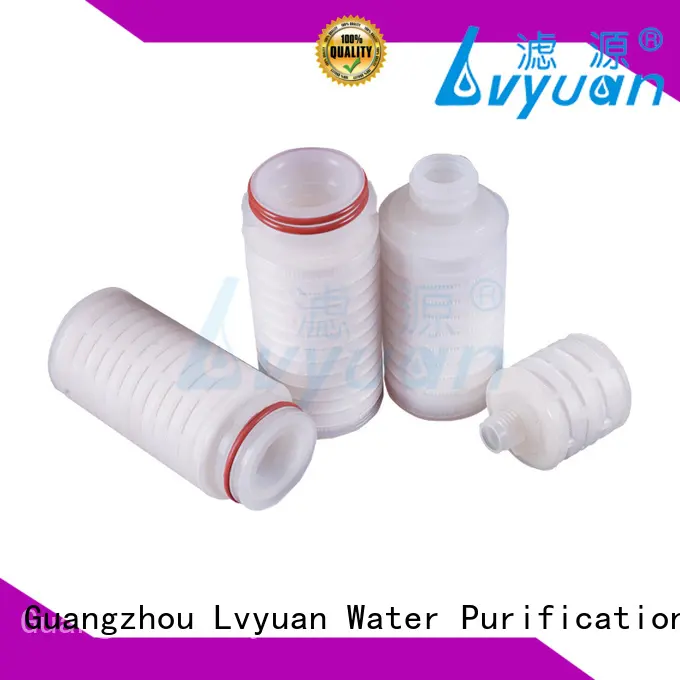

Lvyuan ptfe pleated filter cartridge with stainless steel for liquids sterile filtration
-
v s
1. Lvyuan high efficiency pleated filters is manufactured using the latest production technology as per the international trends.
2. The product is strong enough to hold heavyweight. It is constructed with a robust and strengthened structure by high-quality materials.
3. pleated filter cartridge owns quality certificates of high efficiency pleated filters .
4. With strict quality control system, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is dedicated to provide customers with quality products and services.
The PES pleated filter cartridge is constructed of imported polyethersulfone(PES) membrane media and non-woven support materials.The material of cage core and end caps is polypropylene. Absolute precision polyethersulfone membrane (PES) filter cartridges, adapters are thermally welded with media without using any glue, not any pollution.
The PES filter cartridge is ideal for critical prefiltration to sterilise applications and final filtration in a broad range of demanding non-sterile application. The inherently hydrophilic membrane contains no surfactant or wetting agents, which leads to effective filtration and flow rates
Due to its wide range of PH values and lower adsorption to protein than nylon membrane, it has become the preferred filter cartridge for final filtration in pharmaceutical, food and chemical industries.
Product Feature
◪ The product offers excellent retention efficiency and extended on-stream life making it an ideal filter for the clarification of beer, wine and bottled water.
◪ Excellent performance of chemical compatibility.
◪ High temperature resistance, Acid & Alkali resistance.
◪ Hydrophilic membrane with high flow.
◪ Non-fiber releasing, it meets the high standard pharmaceutics & food industry requirements.
◪ PES pleated cartridge filters are integrity tested during production to assure performance and consistency.
Product Parameter
| Product Name | 0.2 μm PES membrane pleated cartridge filter 5 inch |
| Filter media | PES(Polyethersulfone) |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/VITON/PTFE/NBR/TEFLON |
| Outer diameter | 2.7'' (69mm) |
| Length | 5'', 9.75'', 10'', 20'', 30'', 40'', Customized |
| End cap | 215/222/226/FIN/DOE/SS |
| Filtration area | ≥0.6m² |
| Max.operating temperature | ≤140℃, 0.28Mpa |
| Micron rating(μm) | 0.1, 0.2, 0.45, 0.65 |
Product Details
Product Applications
Medicine
Company Features
1. Lvyuan currently has turned into a favorite exporter in the home and overseas.
2. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. insists on the quality management principle of 'satisfy customers'.
3. Not only good products, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. will also provide good service for our pleated filter cartridge . Please contact us! Our company always follows the service tenet of high efficiency pleated filters . Please contact us!
