Product Details
With the dedication to pursue excellence, Lvyuan Water Purification Equipment strives for perfection in every detail.Lvyuan Water Purification Equipment focuses on the research, design, and improvement of
water filter cartridges in the long term. We steadily improve the durability and stability of machinery. Now the machinery lives up to the industry standards.Lvyuan Water Purification Equipment provides diversified choices for customers.
filter housing manufacturer is available in a wide range of types and styles, in good quality and in reasonable price.
Application Scope
water filter cartridges developed by Lvyuan Water Purification Equipment is widely used, mainly in the following scenes.While providing quality products, Lvyuan Water Purification Equipment is dedicated to providing personalized solutions for customers according to their needs and actual situations.Lvyuan Water Purification Equipment 's water filter cartridges have reasonable design and compact structure. They are stable in performance as well as easy in operation and installation.
Company Advantages1. Lvyuan pleated polyester filter cartridge has a special design and appearance.
2. The product is highly demanded across the globe for its vast features & specifications.
3. We have great confidence in its wide application and market prospect.

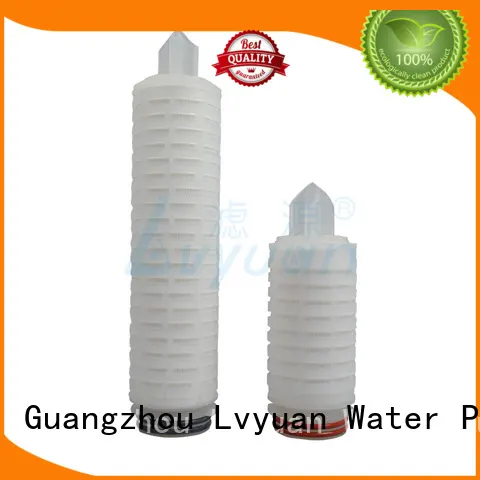

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops. All cartridges hardware components are made from high purity polypropylene materials for use in critical process application. All the Cartridges are manufactured and assembled in a clean room environment to minimized the possibility of contamination. This type of cartridges are available in a wide range of configurations to fit most commercially available filter housings.
Product Feature
◪ Excellent chemical compatibility. Suitable for filtering organic solvents, acid bases.
◪ The multi layers PP membrane structure enables a graded filtration pore sizes and increases the dirt-holding capacity of the PP pleated water cartridge filters.
◪ Large flow volume, low differential pressure and long service life.
◪ Hydrophilic membrane with high flow.
◪ Pleated design increased the filtration area for deep filtration.
◪ Application of thermal-bonding technique, strong and no any pollution.
◪ Full rage of removal microns ratings.
◪ Graded pore density for high dirt holding capacity.
◪ Common use in clean and sterilize with cabinet & steam with high pressure.
Product Parameter
Filter media | PP/Polypropylene |
Support | PP/Polypropylene |
Core/End cap | PP/Polypropylene |
Seal material | Silicone/EPDM/NBR/Viton/Teflon |
Outer diameter | 2.7” , customized |
Length | 9.75” 10” 20” 30” 40” customized |
End cap | DOE,215,222,226,FIN,FLAT,Stainless steel,or customized. |
Filtration area | 0.4-0.7m² (10”) |
Max.operating temperature | 88℃ |
Micron rating(μm) | 0.1,0.2,0.45,0.65,1,2,3,5,10,20,25,30,50,60 |
Product Details
part.1
Polypropylene end caps are thermally bonded to the media packs eliminating any need for adhesives which might react with or contaminate critical process fluids. Strong and no any pollution.
part.2
High efficiency 100% all polypropylene cartridges with hard polypropylene support inner core and outer core. We provide customized sizes to meet different customers’ required.
part.3
Different end caps to fits any filter housing and filtration industry, 100% all pure polypropylene pleated material without any organic binder.
part.4
DOE 20 inch PP material pleated filter cartridge with EPDM gasket, graded-porosity multi-layer.
Product Applications
Reverse osmosis water system prefiltration
Filtration of mineral water
Filtration of organic solvent & ink
Filtration of pharmaceuticals
Company Features1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. lies in a leading position in the production of pleated filter in China.
2. Being produced based on the global standard,
pleated filter element is of greatest quality.
3. The aim of Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is to provide globally sustainable high-value products and services. Welcome to visit our factory! Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has made full preparation to meet up with all victories or challenges. Welcome to visit our factory! Guangzhou Lvyuan Water Purification Equipment Co., Ltd. centers on updating the latest technology to produce pleated water filters with higher efficiency. Welcome to visit our factory! Lvyuan has been trying to do the best to serve customers. Welcome to visit our factory!
