Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.
Lvyuan pvdf pleated filter cartridge supplier for sea water desalination
1. Strict quality inspection for Lvyuan high efficiency pleated filters will be carried out. The product will be checked for cracking of the stitching, the security of the accessories if any, seaming strength, and durability.
2. This product stands out for its breathability. Its materials used features enough ventilation with multiple holes, allowing the moisture to drain out.
3. The product is antibacterial and deodorant. It is treated with antibacterial and stink remover agents which can effectively eliminate smell caused by germs.
4. The company culture Guangzhou Lvyuan Water Purification Equipment Co., Ltd. sticks to is to make qualified pleated filter cartridge products, and provide qualified services.
5. With a 'customer first' attitude, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. maintains good communication with customers.

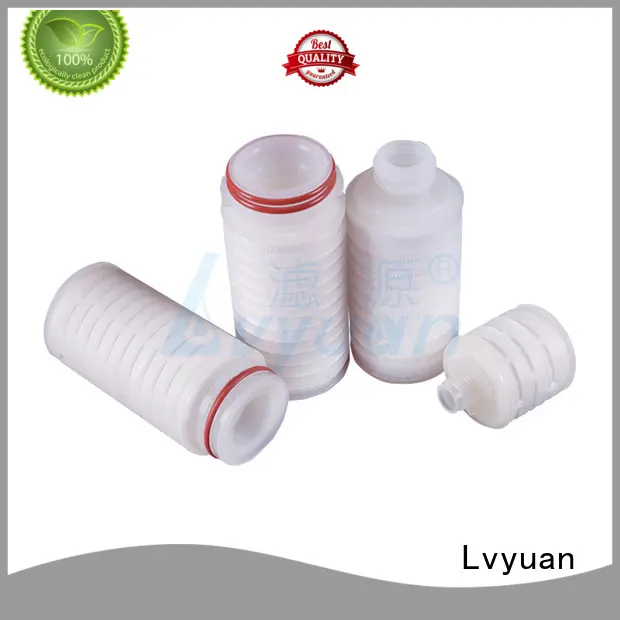

The PES pleated filter cartridge is constructed of imported polyethersulfone(PES) membrane media and non-woven support materials.The material of cage core and end caps is polypropylene. Absolute precision polyethersulfone membrane (PES) filter cartridges, adapters are thermally welded with media without using any glue, not any pollution.
The PES filter cartridge is ideal for critical prefiltration to sterilise applications and final filtration in a broad range of demanding non-sterile application. The inherently hydrophilic membrane contains no surfactant or wetting agents, which leads to effective filtration and flow rates
Due to its wide range of PH values and lower adsorption to protein than nylon membrane, it has become the preferred filter cartridge for final filtration in pharmaceutical, food and chemical industries.
Product Feature
◪ The product offers excellent retention efficiency and extended on-stream life making it an ideal filter for the clarification of beer, wine and bottled water.
◪ Excellent performance of chemical compatibility.
◪ High temperature resistance, Acid & Alkali resistance.
◪ Hydrophilic membrane with high flow.
◪ Non-fiber releasing, it meets the high standard pharmaceutics & food industry requirements.
◪ PES pleated cartridge filters are integrity tested during production to assure performance and consistency.
Product Parameter
| Product Name | 0.2 μm PES membrane pleated cartridge filter 5 inch |
| Filter media | PES(Polyethersulfone) |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/VITON/PTFE/NBR/TEFLON |
| Outer diameter | 2.7'' (69mm) |
| Length | 5'', 9.75'', 10'', 20'', 30'', 40'', Customized |
| End cap | 215/222/226/FIN/DOE/SS |
| Filtration area | ≥0.6m² |
| Max.operating temperature | ≤140℃, 0.28Mpa |
| Micron rating(μm) | 0.1, 0.2, 0.45, 0.65 |
Product Details
Product Applications
Medicine
Company Features
1. Lvyuan is rated as the No.1 brand by many clients.
2. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has formed a strong technical strength and strong competitiveness over the years.
3. high efficiency pleated filters has long been a business tenet of Guangzhou Lvyuan Water Purification Equipment Co., Ltd.. Ask! In accordance with the principle of prudent operation, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. will make no effort to increase its competitiveness. Ask!
