Lvyuan Safe ss cartridge filter housing wholesale for water purification
Product Description

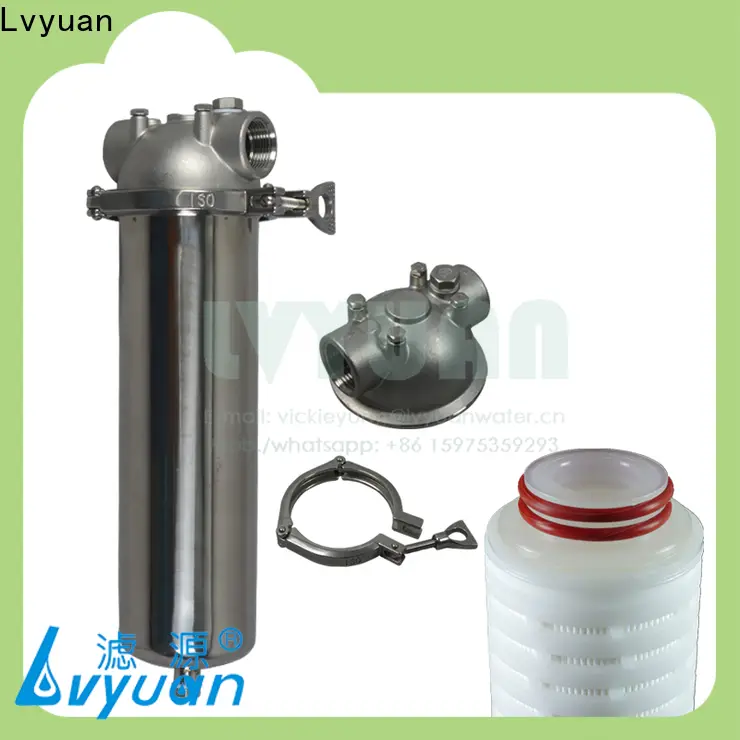

Single stage 10 20 30 40 inch stainless steel water filter cartridge housing with 5 micron pleated water filter:
LVYUAN stainless steel cartridge filter housing offers wide range of flow capacities & contaminant holding capacities.
Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing,
filter cartridges,tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge& choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.
Model No. | Drain | Vent | In & Out | Body diameter | Thickness |
LY-FL-SC-L1 | 1/4" | 1/4" | 1/2" 3/4" 1" | 89mm | 1mm-2mm |
LY-FL-SC-L2 | 1/4" | 1/4" | 1/2" 3/4" 1" | 89mm | 1mm-2mm |
LY-FL-SC-L3 | 1/4" | 1/4" | 1/2" 3/4" 1" | 89mm | 1mm-2mm |
LY-FL-SC-L4 | 1/4" | 1/4" | 1/2" 3/4" 1" | 89mm | 1mm-2mm |
Features:
1.Inlet & outlet size is 1/2", 3/4". 1" for easy installation.
2. Working pressure 8kg/0.8Mpa, 10kg/1Mpa is supported.
3. Use the tap water pressure to provide power, no power consumption.
4. Wall-mounted, counter-top, very simple installation.
5. It is suitable for using in the water mater switch, for the pre filtration system and RO system protection.
6. Resistance to strong acid and alkali.
7. Low cost, it fits different kind of filter elements.
Structure:
Housing material 304 or 316L stainless steel, the housing body through inside and outside polishing, it meets the sanitary grade.
Inside with the silicone gasket, it can be applied to cold & hot water temperature.
High pressure resistance, corrosion resistance.
Detailed Images
Application
1. Widely used in UF, RO, EDI security filtration and the end-filtration.
2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.
3. Electonics, semiconductor industry with high purity water preliminary filter, teminal filter.
4. Oil field, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.
5. Drinking pure water, mineral water, fruit juice, tea, beverages, health drinks.
6. Liquid, wine, beer, yellow wine and ther friut wine filtration, pure draft beer aseptic filtration.
7. The life and procution waste water treatment and water recycling process of pre-treatment filtering or security filtering.
8. Biological engineering, oil refining, printing and dyeing, testile industry water supply and waste water treatment, research and test filter, etc.
BOTTLED WATER
BEVERAGE & DRINKS
BIOLOGY TECHNOLOGY
RO WATER TREATMENT
CHEMICAL INDUSTRY
POWER PLANT
