Slim size 2.5'' OD, and Jumbo cartridge 4.5'' OD.
Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

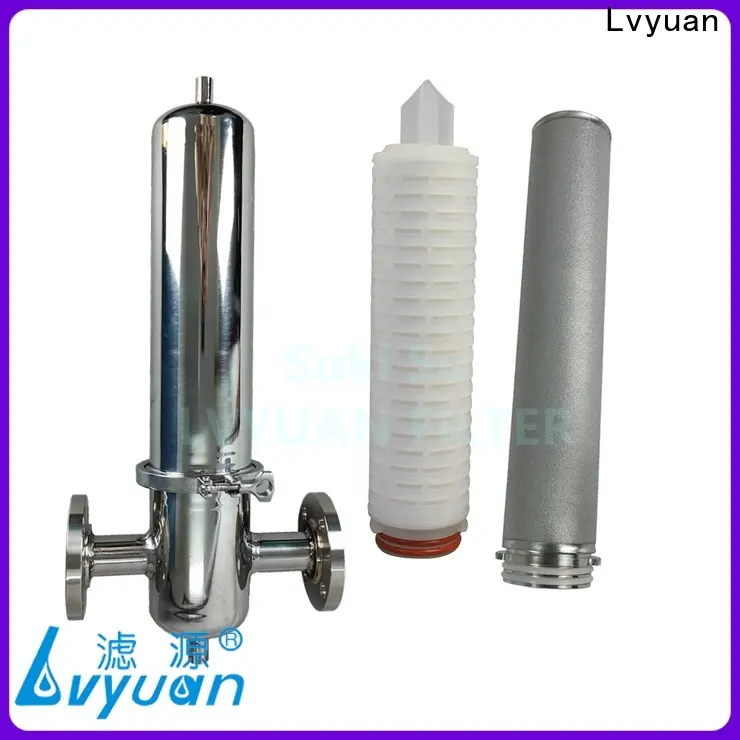

Lvyuan Safe stainless steel sintered filter cartridge replace for industry
Company Advantages
1. Quality, Design, and Functions are the guiding principles for Lvyuan stainless steel sintered filter cartridge . It has a large effective filter area
2. Compared to the use of manual labor, the tasks will be finished with a higher level of efficiency when this product is used. Its unique density gradient construction maximizes efficiency and minimizes pressure drop
3. This product is labor-saving. It is super easy to use because it is designed with an ergonomic grip or handles. It is available in a wide selection of micron ratings from 1 to 100 μm
4. The product features high efficiency of heat removal. The cell casing of this product is a good conductor and has a maximum surface area to maximize the heat transfer. Customized end cap configurations are available to fit specific requirements
![Lvyuan Safe stainless steel sintered filter cartridge replace for industry 12]()
![Lvyuan Safe stainless steel sintered filter cartridge replace for industry 14]()
![Lvyuan Safe stainless steel sintered filter cartridge replace for industry 16]()
![Lvyuan Safe stainless steel sintered filter cartridge replace for industry 18]()
![Lvyuan Safe stainless steel sintered filter cartridge replace for industry 20]()
![Lvyuan Safe stainless steel sintered filter cartridge replace for industry 22]()
![Lvyuan Safe stainless steel sintered filter cartridge replace for industry 24]()
![Lvyuan Safe stainless steel sintered filter cartridge replace for industry 26]()
![Lvyuan Safe stainless steel sintered filter cartridge replace for industry 28]()
![Lvyuan Safe stainless steel sintered filter cartridge replace for industry 30]()
![Lvyuan Safe stainless steel sintered filter cartridge replace for industry 32]()
![Lvyuan Safe stainless steel sintered filter cartridge replace for industry 34]()
![Lvyuan Safe stainless steel sintered filter cartridge replace for industry 36]()
![Lvyuan Safe stainless steel sintered filter cartridge replace for industry 38]()
![Lvyuan Safe stainless steel sintered filter cartridge replace for industry 40]()
![Lvyuan Safe stainless steel sintered filter cartridge replace for industry 42]()
Company Features
1. As an influential manufacturer in the domestic market, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has evolved into a strong competitor of stainless steel sintered filter cartridge after years of unremitting efforts.
2. Our company has a team of professional QC members. They have a meticulous attitude toward product quality. Combining their years of unique expertise, they can quickly respond to our customers' quality requirements.
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. chooses the long-term development approach of stainless steel filter elements . Get info!
1. Quality, Design, and Functions are the guiding principles for Lvyuan stainless steel sintered filter cartridge . It has a large effective filter area
2. Compared to the use of manual labor, the tasks will be finished with a higher level of efficiency when this product is used. Its unique density gradient construction maximizes efficiency and minimizes pressure drop
3. This product is labor-saving. It is super easy to use because it is designed with an ergonomic grip or handles. It is available in a wide selection of micron ratings from 1 to 100 μm
4. The product features high efficiency of heat removal. The cell casing of this product is a good conductor and has a maximum surface area to maximize the heat transfer. Customized end cap configurations are available to fit specific requirements
Product Description
Plain cylindrical design Stainless Steel Wire Mesh filter cartridge
Pleated configuration design Stainless Steel folded mesh filter cartridge
Sintered Porous Stainless Steel SUS316 Powder Filter Cartridge
Customized Porous Stainless Steel Filter cartridge with SS support Frame
0.2 0.22 um Micron compressed air line filter for Sinter Stainless steel precision filter cartridge element
Non-standard Stainless steel filter cartridge specifications (special size, shape, connection, etc) can be customized according to customer's requirement.
Fiter Cartridge dimensions | ||
Length | 5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm) | |
Diameter | Ø25, 30, 50, 60, 65, 70mm | |
Other dimensions | Customized by customer's request. | |
Material of constructions | ||
Filter media | SUS304, 316, 316L stainless steel | |
Connector type | Flat, Insert type, Thread type, Fin | |
End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1'' NPT/BSP or as request. | |
Outside protection net | Optional | |
Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc | |
Performance | ||
Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc | |
Effective Surface area | 0.65sqm per 10" cartridge element | |
Operation Temperature | ≦480℃ | |
Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning | |
Maximum Operating Pressure differential | 4.0bar | |
Features:
1.Excellent mechanical strength.
2. High dirt holding capacity.
3. High pressure resistance, withstand capacity and low pressure drop.
4. Temperature ratings from -73°C to 480°C.
5. Various micron ratings available from 2um to 1000um nominal.
6. Back flushing and cleanable for long service life.
7. Strong corrosion resistant for wide chemical compatibility.
8.High permeability, no media migration.
9.Customized dimension are welcome.
Application
Stainless steeel Filter Cartridge Applications:
1. Water filtrations
2. Hydraulics
3. Automotive
4. Pneumatics
5. Chemical
6. Petrochemical
7. Medical
8. Oil & gas
9. Aeronautical
10. Mining
11. Food & beverage
12. Pharmaceutical
Products Show
stainless steel wire mesh filter cartridge
Various mesh or filtration micron rate available for option.
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Our Certifications
Customer Photo
Contact
As a mature supplier, our water filter cartridges will be detailedly tested by our professional QC team. Its unique density gradient construction maximizes efficiency and minimizes pressure drop.
water filter cartridges has a stronger market competitiveness. Its unique density gradient construction maximizes efficiency and minimizes pressure drop.
Company Features
1. As an influential manufacturer in the domestic market, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has evolved into a strong competitor of stainless steel sintered filter cartridge after years of unremitting efforts.
2. Our company has a team of professional QC members. They have a meticulous attitude toward product quality. Combining their years of unique expertise, they can quickly respond to our customers' quality requirements.
3. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. chooses the long-term development approach of stainless steel filter elements . Get info!
