Lvyuan safe water filter cartridge manufacturer for industry3
1. Lvyuan filter cartridge for industrial liquids filtration is designed with the help of a talented team of professionals. Its unique density gradient construction maximizes efficiency and minimizes pressure drop
2. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. can tailor our water filter cartridge based on customer's requirements. All its elements are made with FDA compliant material for food and beverage contact
3. The product has good quality and excellent performance. Its filter medium is customizable according to the different water quality in the application
4. The products are of high quality and stable performance, and are well received by customers. It offers excellent filtration and good thermal stability
5. Statistical quality control technology is adopted to ensure product quality is stable. It can also filter particulates, microbial organisms, ferric oxide, and other impurities
hydrophobic PTFE(Polytetrafluoroethylene) membrane and non-woven support materials. Adapters are thermally welded without the uses of glues or adhesives to prevent any possibility of pollution. These economical PTFE membrane cartridge filters provide superior hydrophobicity as compared to polypropylene filters commonly used in compressed air applications, making it ideally suited for utility as well as tank vent applications, without the higher costs of the typical PTFE filter.
Product Feature
◪ Excellent hydrophobic performance, the water erosion is more resistant than the common PVDF membrane.
◪ Withstand water shock, back pressure and repeated high temperature sterilization.
◪ 100% bacterial retention & effective filtration to 0.2 μm particle.
◪ 100% integrity tested.
◪ It is constructed of 2 kinds of hot welding materials(PTFE & PP), not any adhesives, clean & stable, meet the high standards of pharmaceutical industry.
Product Parameter

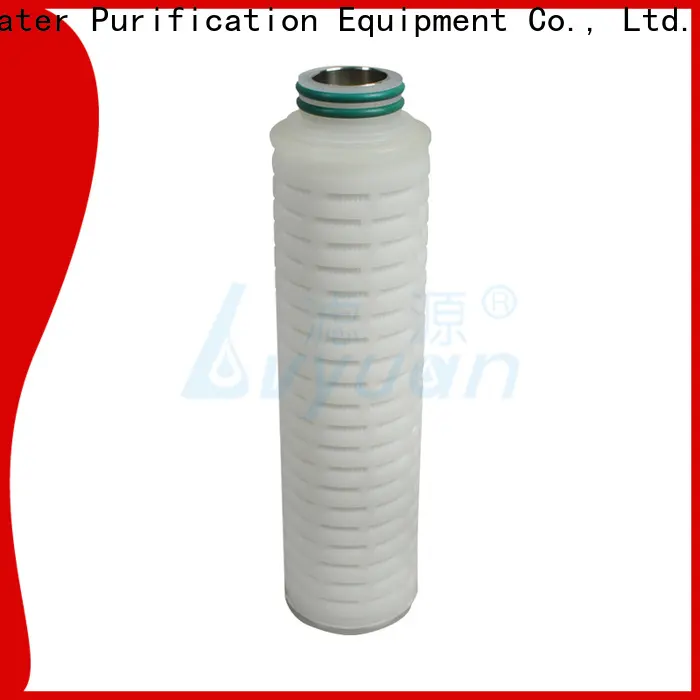

| Product Name | 10 inch PTFE membrane pleated filter cartridge with stainless steel 222 |
| Filter media | PTFE membrane |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/VITON/PTFE/NBR/TEFLON |
| Outer diameter | 2.7‘’(69mm) |
| Length | 9.75'', 10'', 20'', 30'', 40'', Customized |
| End cap | 215/222/226/FIN/DOE/SS |
| Filtration area | ≥0.72m² |
| Max.operating temperature | 80℃, 0.173Mpa |
| Micron rating(μm) | 0.2, 0.45 |
Product Details
Product Applications
Reverse osmosis water system prefiltration
Company Features
1. Due to our efficient sales strategy and extensive sales network, we have acquired trust and developed successful partnerships in North America, South East Asia, and Europe.
2. Always customers first in Guangzhou Lvyuan Water Purification Equipment Co., Ltd.. Inquiry!
