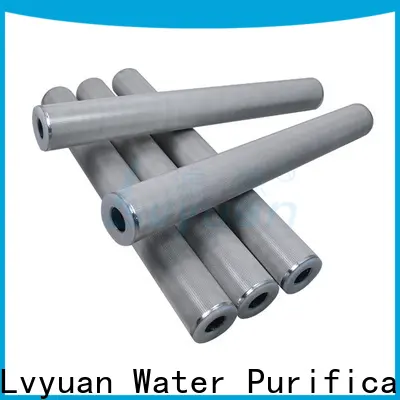

Lvyuan sintered filter cartridge manufacturer for sea water desalination1
1. Lvyuan sintered filter cartridge is manufactured using the most advanced technology and most sophisticated equipment. It is designed with graded pores to help trap contaminants throughout the entire cross section for improved efficiency
2. This product is very popular in the market and is widely used in the market. It has found a variety of applications ranging from industrial, chemical process, food and beverage, cosmetics and water
3. The product is resistant to corrosion. It has passed rigorous oxidation treatment with a protective layer to resist any reaction with the air. Its unique density gradient construction maximizes efficiency and minimizes pressure drop
4. The product features toughness to withstand impact and shock loading. During the production, it has gone through the heat treatment - hardening. It comes with a wide range of lengths for standard and full-flow housings
5. The product is characterized by strong abrasion resistance. It is able to withstand attack from a wide variety of mechanical damage. It can also filter particulates, microbial organisms, ferric oxide, and other impurities
Stainless steel filter element can get a large filtration area and with high flow rate. It extends cartridge life and have more dirt holding capacity.
Moreover, The stainless steel filter cartridges are designed for cleanable and reusable applications thereby eliminating frequent cartridge change out, so it can significantly reduce disposal cost.
Non-standard Stainless steel filter cartridges can be easily customized with various dimension, end cap, outer cage pattern etc. So as long as customer give us the picture and drawing of the ss filter cartridge, we can custom-make the exact ss filter element to you.
◆◆ Sintered Stainless Steel Filter Cartridges are the perfect choice for high temperature, high differential pressure and high viscosity applications. Manufactured with 304, 316 or 316L material, there’re mainly 3 types of stainless steel cartridge designs are widely used in the industry.
1. Plain cylindrical design SS wiremesh filter cartridge.
2. Pleated configuration design SS folded mesh filter cartridge.
3. Sintered SS316 metal powder type SS filter cartridge.
Product Feature
◪ Excellent mechanical strength.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ Temperature ratings from -73°C to 480°C.
◪ Various micron ratings available from 2um to 1000um nominal.
◪ Back flushing and cleanable for long service life.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ High permeability, no media migration.
◪ Customized dimension are welcome.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø25, 30, 50, 60, 65, 70mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS304, 316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Outside protection net | Optional |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc |
| Effective Surface area | 0.65 sqm per 10" cartridge element |
| Operation Temperature | ≦ 480℃ |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0 bar |
Product Details
Product Applications
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is a well-known manufacturer in the industry. When people talk about sintered metal filter elements production, we are always a good example. Our sintered filter cartridge is easily operated and need no additional tools.
2. Our technology takes the lead in the industry of sintered powder ss filter .
3. Our sintered metal filters suppliers production equipment possesses many innovative features created and designed by us. Survive with quality, seek development with technology, and create profit with scale. Inquire online!
