Lvyuan sintered ss filter manufacturer for industry
1. Lvyuan ss sintered filter cartridge has proper design and engineering. It is an outcome of our qualified architects, designers, and structural engineers using their aptitude.
2. The product is dustproof. The surface of this product has a special coating to prevent adhesion of dust and oil smoke.
3. This product has a non-keen-edged surface. The finely welded technique guarantees that every welding spot is full and smooth with no sharp edges.
4. The product uses less electricity and produces fewer greenhouse emissions, which makes a significant impact on the energy budget and the environment.
5. The product can replace labor to work on operations that are harmful or dangerous, while at the same time, it can avoid operators' mistakes.

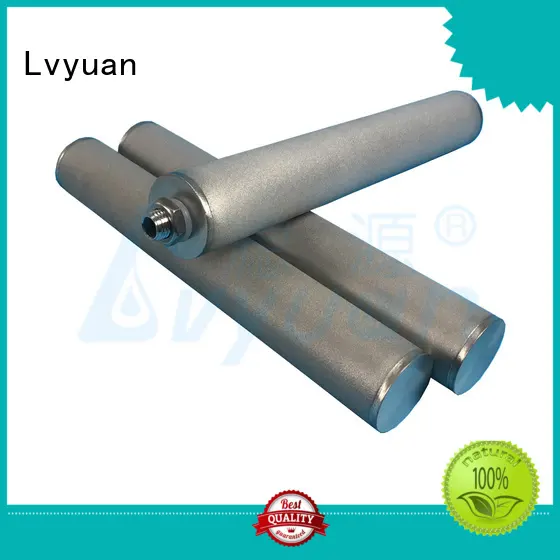

The stainless powder sintered filter is made by molding of stainless powder through high temperature sintering, also it adopts unique technology and strictly control production technique(include power grain distribution, molding and sintering).
The filter is characterized by high machinery strength, high conditions can be adjusted so as to produce the porous metal sintered filter with a wider precision scope. High-temperature resistance and Good air permeability.
Excellent machinery strength, applicable to the high temperature, high pressure and strong corrosivity.
◆◆ Main application cases
1. Filtration and recovery of catalyst.
2. Hot gas filtration in petrochemical industry
3. Purification of high temperature flue gas of metallurgy industry
4. Dust recovery of solid emulated bed and gas
5. Dust and end gas purification of thermal power and nuclear electric power generation.
Product Feature
◪ High-porosity and good air permeability, no media migration.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ High temperature resistance，Especially applicable to the hot gas filtration
◪ Various micron ratings available from 1 μm to 200 μm nominal.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ Made entirely of SS316 or SS316L, cleanable and reusable
◪ Customized dimension are welcome.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø60, 65, 70, 80 mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 0.2-200 μm, etc |
| Operation Temperature | ≥ -270ºC, ≤500ºC |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0 bar |
Product Details
Product Applications
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is a well-positioned manufacturer of ss sintered filter cartridge . Over the years, we have gained years of experience in the production of sintered steel filter .
2. Whenever there is any problems for our sintered ss filter , you can feel free to ask our professional technician for help.
3. We think sustainability is of great importance. Through our investments in sectors such as water supply, wastewater treatment systems, and sustainable energy, we make a real difference to the environment. Contact! We comply with all the legal and other obligations related to the environment that we are responsible for and ensure the productive use of energy, raw material, and natural resources. Client centricity, agility, team spirit, passion to perform, and integrity. These values are always at the core of our company. Contact!
