Slim size 2.5'' OD, and Jumbo cartridge 4.5'' OD.
Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.
Lvyuan stainless steel sintered filter cartridge suppliers for water Purifier
Product Description
Plain cylindrical design Stainless Steel Wire Mesh filter cartridge
Pleated configuration design Stainless Steel folded mesh filter cartridge

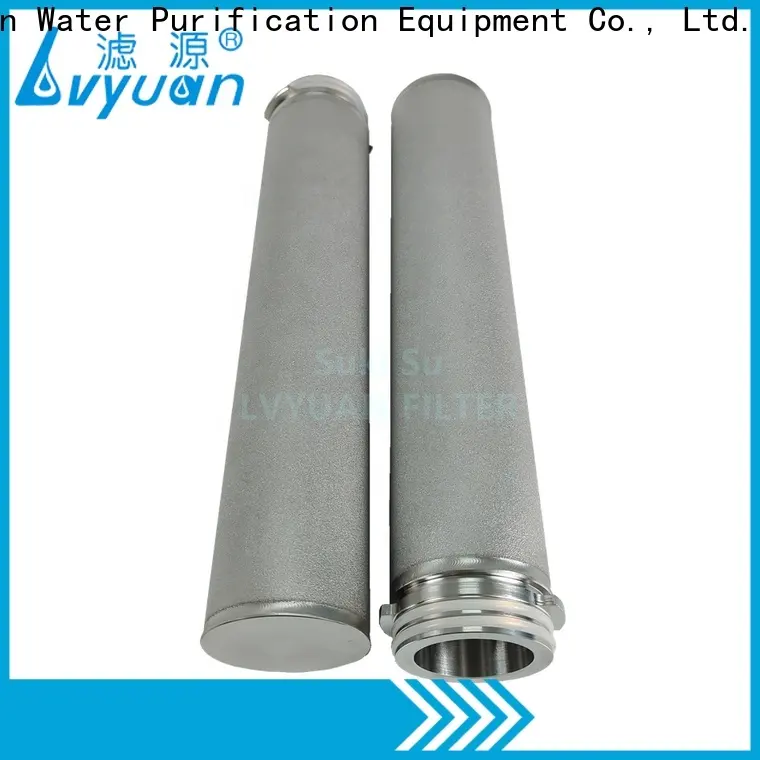

Sintered Porous Stainless Steel SUS316 Powder Filter Cartridge
Customized Porous Stainless Steel Filter cartridge with SS support Frame
Washable Reusable 0.2 micron SUS 316 stainless steel steam filter cartridge with DOE 222 226 M20 M30 adaptor
Non-standard Stainless steel filter cartridge specifications (special size, shape, connection, etc) can be customized according to customer's requirement.
Fiter Cartridge dimensions | ||
Length | 5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm) | |
Diameter | Ø25, 30, 50, 60, 65, 70mm | |
Other dimensions | Customized by customer's request. | |
Material of constructions | ||
Filter media | SUS304, 316, 316L stainless steel | |
Connector type | Flat, Insert type, Thread type, Fin | |
End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1'' NPT/BSP or as request. | |
Outside protection net | Optional | |
Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc | |
Performance | ||
Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc | |
Effective Surface area | 0.65sqm per 10" cartridge element | |
Operation Temperature | ≦480℃ | |
Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning | |
Maximum Operating Pressure differential | 4.0bar | |
Features:
1.Excellent mechanical strength.
2. High dirt holding capacity.
3. High pressure resistance, withstand capacity and low pressure drop.
4. Temperature ratings from -73°C to 480°C.
5. Various micron ratings available from 2um to 1000um nominal.
6. Back flushing and cleanable for long service life.
7. Strong corrosion resistant for wide chemical compatibility.
8.High permeability, no media migration.
9.Customized dimension are welcome.
Application
Stainless steeel Filter Cartridge Applications:
1. Water filtrations
2. Hydraulics
3. Automotive
4. Pneumatics
5. Chemical
6. Petrochemical
7. Medical
8. Oil & gas
9. Aeronautical
10. Mining
11. Food & beverage
12. Pharmaceutical
Products Show
stainless steel wire mesh filter cartridge
Various mesh or filtration micron rate available for option.
Our Company
Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Our Certifications
Customer Photo
Contact
Before shipment, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. will conduct various types of tests to check quality of water filter cartridges. Customized end cap configurations are available to fit specific requirements
This product has good economic and social benefits. Customized end cap configurations are available to fit specific requirements
