Company Advantages1. Lvyuan water purification equipment has been tested to meet the international building materials standards in terms of properties such as toughness, hardness, and tensile strength. There is different porosity across the depth of its filter medium
2. water filter cartridge is well sold in domestic markets. It has increased dirt holding capacity and longer life
3. The product is of high quality. Not only its raw materials are ultra-high purity without no unnecessary impurities, but also its workmanship is done by advanced techniques. The filter media is thermally bonded to prevent fiber release while providing consistent flow rates
4. This product is labor-saving. It is super easy to use because it is designed with an ergonomic grip or handles. Its unique density gradient construction maximizes efficiency and minimizes pressure drop

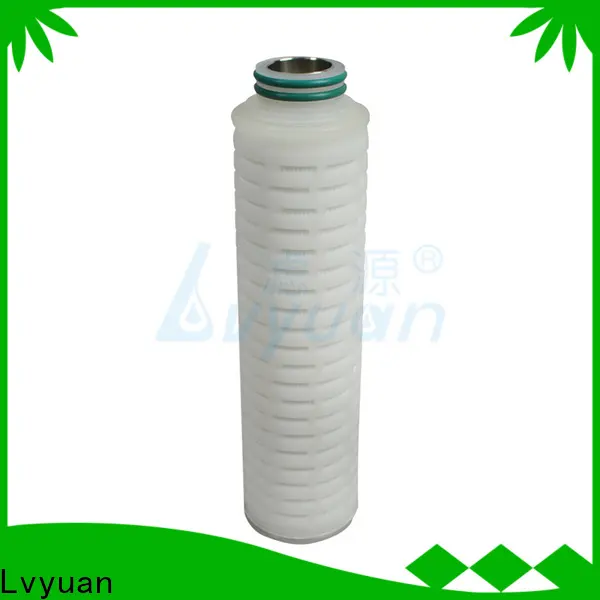

PTFE membrane cartridge filter is constructed of imported natural
hydrophobic PTFE(Polytetrafluoroethylene) membrane and non-woven support materials. Adapters are thermally welded without the uses of glues or adhesives to prevent any possibility of pollution. These economical PTFE membrane cartridge filters provide superior hydrophobicity as compared to polypropylene filters commonly used in compressed air applications, making it ideally suited for utility as well as tank vent applications, without the higher costs of the typical PTFE filter.
Product Feature
◪ Excellent hydrophobic performance, the water erosion is more resistant than the common PVDF membrane.
◪ Withstand water shock, back pressure and repeated high temperature sterilization.
◪ 100% bacterial retention & effective filtration to 0.2 μm particle.
◪ 100% integrity tested.
◪ It is constructed of 2 kinds of hot welding materials(PTFE & PP), not any adhesives, clean & stable, meet the high standards of pharmaceutical industry.
Product Parameter
Product Name | 10 inch PTFE membrane pleated filter cartridge with stainless steel 222 |
Filter media | PTFE membrane |
Support | PP/Polypropylene |
Core/End cap | PP/Polypropylene |
Seal material | Silicone/EPDM/VITON/PTFE/NBR/TEFLON |
Outer diameter | 2.7‘’(69mm) |
Length | 9.75'', 10'', 20'', 30'', 40'', Customized |
End cap | 215/222/226/FIN/DOE/SS |
Filtration area | ≥0.72m² |
Max.operating temperature | 80℃, 0.173Mpa |
Micron rating(μm) | 0.2, 0.45 |
Product Details
part.1
It is constructed of 2 kinds of hot welding materials(PTFE & PP), no any adhesives,
clean & stable.
part.2
DOE double opened PTFE membrane filter with PTFE gasket. It is a good choice for the pharmaceutical and ohter strict applications.
part.3
The adapters are thermally welded without the uses of glues or adhesives to prevent any possibility of pollution.
part.4
Different length & variety end cap are optional.
Product Applications
Reverse osmosis water system prefiltration
Filtration of mineral water
Filtration of organic solvent & ink
Filtration of pharmaceuticals
Company Features1. We have excellent design professionals. Most of them have worked in this industry over the years. This industry knowledge allows them to create the best design for customers' product requirements.
2. We believe that climate change may have long-term direct and indirect implications for our business and supply chain. Thus, we aim to keep the impact of the raw materials we use to a minimum.
