Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

Lvyuan water filter cartridge factory for water purification 1

Lvyuan water filter cartridge factory for water purification 2

Lvyuan water filter cartridge factory for water purification 3

Lvyuan water filter cartridge factory for water purification

Inquiry

Overview

Quick Details

Applicable Industries:: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

After Warranty Service:: Online support

Local Service Location:: none

Showroom Location:: none

Video outgoing-inspection:: Provided

Machinery Test Report:: Provided

Marketing Type:: Ordinary Product

Warranty of core components:: 1 Year

Core Components:: Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC

Place of Origin:: Guangdong, China

Brand Name:: OEM/Lvyuan

Material:: PP/PE

Weight:: 0.5

Size:: Customized

Power:: 0

Warranty:: 3 months

After-sales Service Provided:: Online support

Name:: dust collector filter cartridge

Filter membrane material:: PP/PVDF/PTFE/PES/Nylon

Length:: 5 / 10 / 20 / 30 / 40 / 50 / 60 inch

Conector:: Fin/222/226/215/DOE/Thread

Micron:: 0.22/0.5/1/3/5/10/25/50/75/100/150

Sealing method:: Hot melting welding

Diameter:: 70mm/OEM

Inner Core:: PP/SS/OEM

MOQ:: Currently no limited

Supply Ability

Supply Ability:: 5000 Piece/Pieces per Week

Chinese high quality dust collector filter cartridge For Printing Shops

Product Description

Lvyuan water filter cartridge factory for water purification 4

Product Name	Water treatment plant RO pleated filter 5 microns PP cartridge water filter with 10 20 30 40 inch length
Filtration media	PP/PTFE/PES/PVDF/Nylon
Support material	Polypropylene
Core & Structural components	Polypropylene
Inner core	PP/Stainless steel
Packing method	Polybag/Vacuum
Filtration precision	0.1μm, 0.2μm, 0.45μm, 0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm
Length	2.5", 5". 10", 20", 30", 40", 50", 60", OEM
Adaptor	215/222/226/Fin/Flat/Thread/OEM
Sealing method	Hot melting welding
Sealing gasket & O-ring material	Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber.
Effect filtration area	≥0.6m²
Filter cartridge diameter	69mm
Max. working temperature	PP: 88℃,0.27Mpa； PTFE: 80℃, 0.173Mpa ；PES: 85℃, 0.28Mpa PVDF: 80℃, 0.173Mpa；Nylon: 49℃, 0.21Mpa
Max. positive differential pressure	0.42Mpa (25℃)
Max. back pressure differential pressure	0.28Mpa (25℃)
Sterilization conditions	121℃ 30min
Applications	Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;

Lvyuan water filter cartridge factory for water purification 6

PP melt blown water filter cartridge

Polypropylene melt blown filter cartridge or PP spun water filter, PP filter, PP filter cartridge is the most widely used filtration consumable products in domestic and industrial water treatment systems.

PP melt blown filter cartridges (PPF) are made of 100% pure polypropylene fiber, providing broad wide chemical compatibility.
Melt Blown sediment filter cartridge has strong pollutants holding capacity.

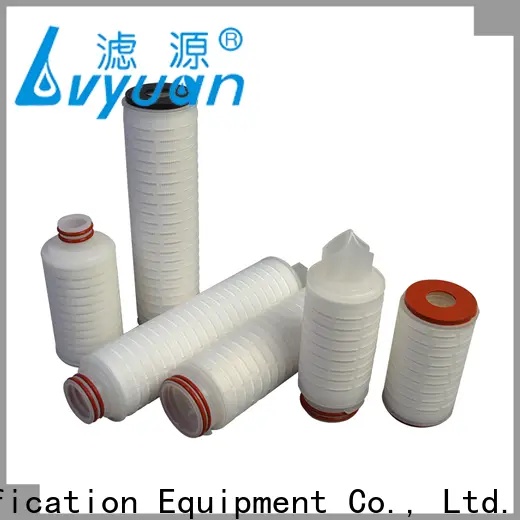

Polypropylene microporous membrane filter

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.

Lvyuan water filter cartridge factory for water purification 8

Detailed Images

Lvyuan water filter cartridge factory for water purification 10

Groove surface PP sediment filter cartridges.

Lvyuan water filter cartridge factory for water purification 12

Flat surface PP sediment filter cartridge

Lvyuan water filter cartridge factory for water purification 14

215 222 226 Flat/Fin end cap PP filter, code 0 3 6 7 8 9 available.

Lvyuan water filter cartridge factory for water purification 16

DOE opened pleated filter

Lvyuan water filter cartridge factory for water purification 18

OEM customized size filter

Lvyuan water filter cartridge factory for water purification 20

Different end caps pleated filter

Lvyuan water filter cartridge factory for water purification 22

PP melt blown filter cartridge with 1 2 3 layers for option

Lvyuan water filter cartridge factory for water purification 24

PP shell Polypropylene melt blown filter cartridge

Lvyuan water filter cartridge factory for water purification 26

Customize PP core or stainless steel shell/core pp filter cartridge

Lvyuan water filter cartridge factory for water purification 28

Application

Lvyuan water filter cartridge factory for water purification 30

RO WATER TREATMENT

Lvyuan water filter cartridge factory for water purification 32

BOTTLED MINERAL WATER

Lvyuan water filter cartridge factory for water purification 34

CHEMICAL TECHNOLOGY FILTRATION

Lvyuan water filter cartridge factory for water purification 36

BEER & BEVERAGE FILTRATION

Lvyuan water filter cartridge factory for water purification 38

PETROCHMICAL INDUSTRY

Lvyuan water filter cartridge factory for water purification 40

SEA DESALINATION WATER EQUIPMENT

Packing & Delivery

Lvyuan water filter cartridge factory for water purification 42

Lvyuan water filter cartridge factory for water purification 44

Lvyuan water filter cartridge factory for water purification 46

Container for shipment

Lvyuan water filter cartridge factory for water purification 48

Container for shipment

Certifications

Lvyuan water filter cartridge factory for water purification 50

Lvyuan water filter cartridge factory for water purification 52

Lvyuan water filter cartridge factory for water purification 54

Our Company

Lvyuan water filter cartridge factory for water purification 56

Lvyuan water filter cartridge factory for water purification 58

Let's Make Custom Water Filter Cartridge For You Now.

Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has a very strict inspection system to ensure quality. It has a large effective filter area. Lvyuan not only appreciates the water filter cartridges but also a service commitment. It has a large effective filter area.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
