Enterprise Strength
-
Lvyuan Water Purification Equipment is dedicated to providing quality services to meet the needs of customers.
Application Scope
Lvyuan Water Purification Equipment 's
water filter cartridges can play an important role in various fields.In addition to providing high-quality products, Lvyuan Water Purification Equipment also provides effective solutions based on the actual conditions and the needs of different customers.
Company Advantages1. It is proved by practices that water filter cartridge has the characteristics of water purification equipment.
2. This product is antibacterial. It is multi-layer sterilized and its design is smooth and flat, providing no living space for bacteria.
3. This product is favored by the majority of the people and shows the broad market application prospects of this product.
4. This product has a wide range of applications on the market.

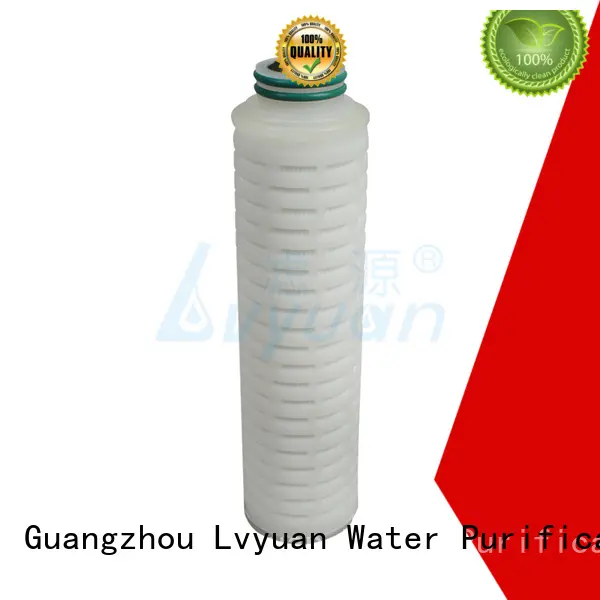

PTFE membrane cartridge filter is constructed of imported natural
hydrophobic PTFE(Polytetrafluoroethylene) membrane and non-woven support materials. Adapters are thermally welded without the uses of glues or adhesives to prevent any possibility of pollution. These economical PTFE membrane cartridge filters provide superior hydrophobicity as compared to polypropylene filters commonly used in compressed air applications, making it ideally suited for utility as well as tank vent applications, without the higher costs of the typical PTFE filter.
Product Feature
◪ Excellent hydrophobic performance, the water erosion is more resistant than the common PVDF membrane.
◪ Withstand water shock, back pressure and repeated high temperature sterilization.
◪ 100% bacterial retention & effective filtration to 0.2 μm particle.
◪ 100% integrity tested.
◪ It is constructed of 2 kinds of hot welding materials(PTFE & PP), not any adhesives, clean & stable, meet the high standards of pharmaceutical industry.
Product Parameter
Product Name | 10 inch PTFE membrane pleated filter cartridge with stainless steel 222 |
Filter media | PTFE membrane |
Support | PP/Polypropylene |
Core/End cap | PP/Polypropylene |
Seal material | Silicone/EPDM/VITON/PTFE/NBR/TEFLON |
Outer diameter | 2.7‘’(69mm) |
Length | 9.75'', 10'', 20'', 30'', 40'', Customized |
End cap | 215/222/226/FIN/DOE/SS |
Filtration area | ≥0.72m² |
Max.operating temperature | 80℃, 0.173Mpa |
Micron rating(μm) | 0.2, 0.45 |
Product Details
part.1
It is constructed of 2 kinds of hot welding materials(PTFE & PP), no any adhesives,
clean & stable.
part.2
DOE double opened PTFE membrane filter with PTFE gasket. It is a good choice for the pharmaceutical and ohter strict applications.
part.3
The adapters are thermally welded without the uses of glues or adhesives to prevent any possibility of pollution.
part.4
Different length & variety end cap are optional.
Product Applications
Reverse osmosis water system prefiltration
Filtration of mineral water
Filtration of organic solvent & ink
Filtration of pharmaceuticals
Company Features1. Being a powerful manufacturer and supplier of water purification equipment, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. enjoys a sound reputation in the domestic and foreign market.
2. Relying on our advanced technology, our produced water filter cartridge is of high quality.
3. As an experienced manufacturer, we are sure to satisfy you. Check now! We sincerely hope that our clients will succeed in their business. We are committed to creating a culture which respects and values individual differences, a place where everybody feels comfortable being themselves and where their views are recognized and respected in truly inclusive business. Check now! Lvyuan looks forward to working with you by providing our fantastic water filter cartridge. Check now!
